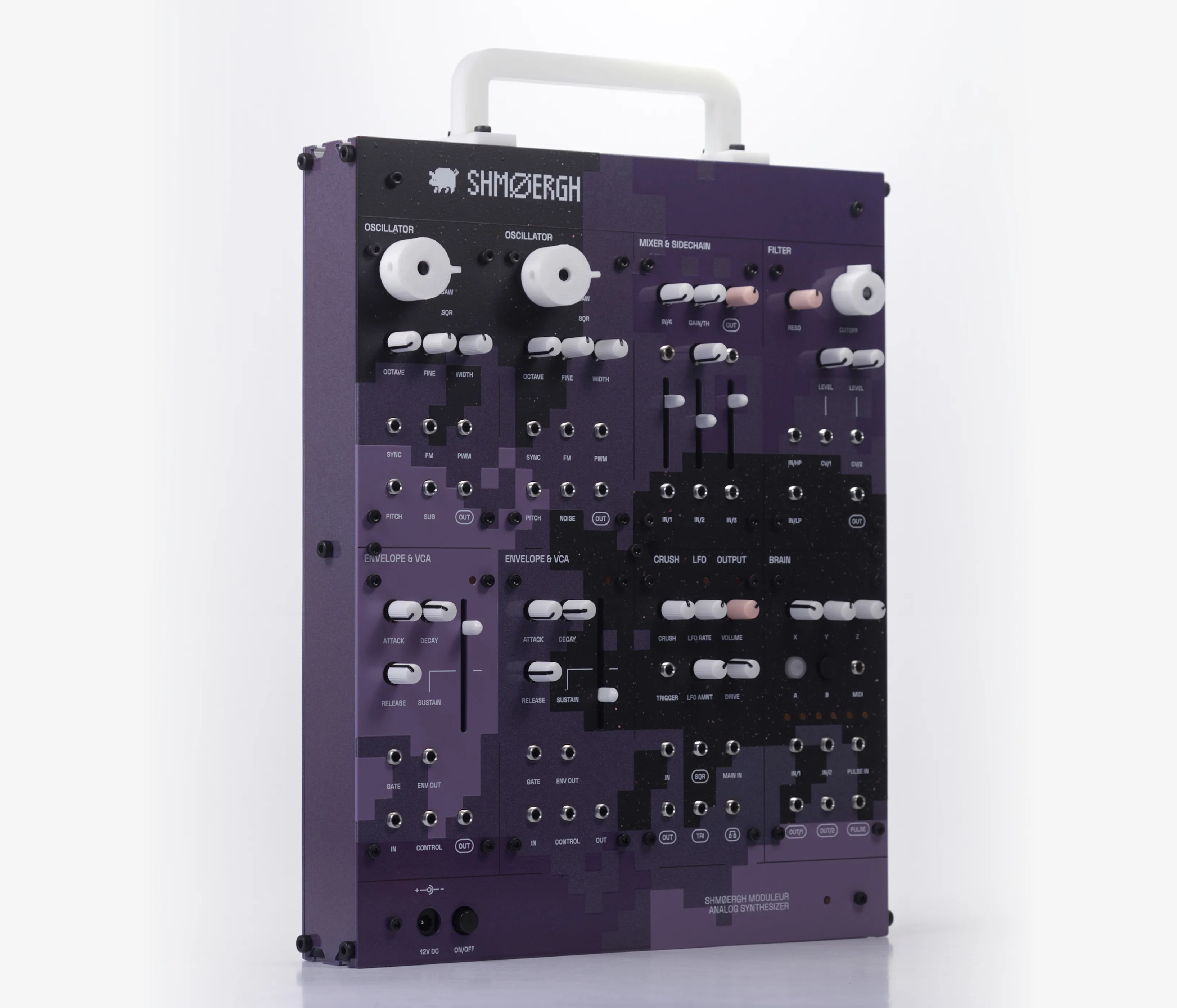

Big analog energy
From deep basses to unruly noise, the Moduleur delivers. Two VCOs with a sub oscillator going through a super-drippy diode-ladder filter cranked up with diode based overdrive. Massif.

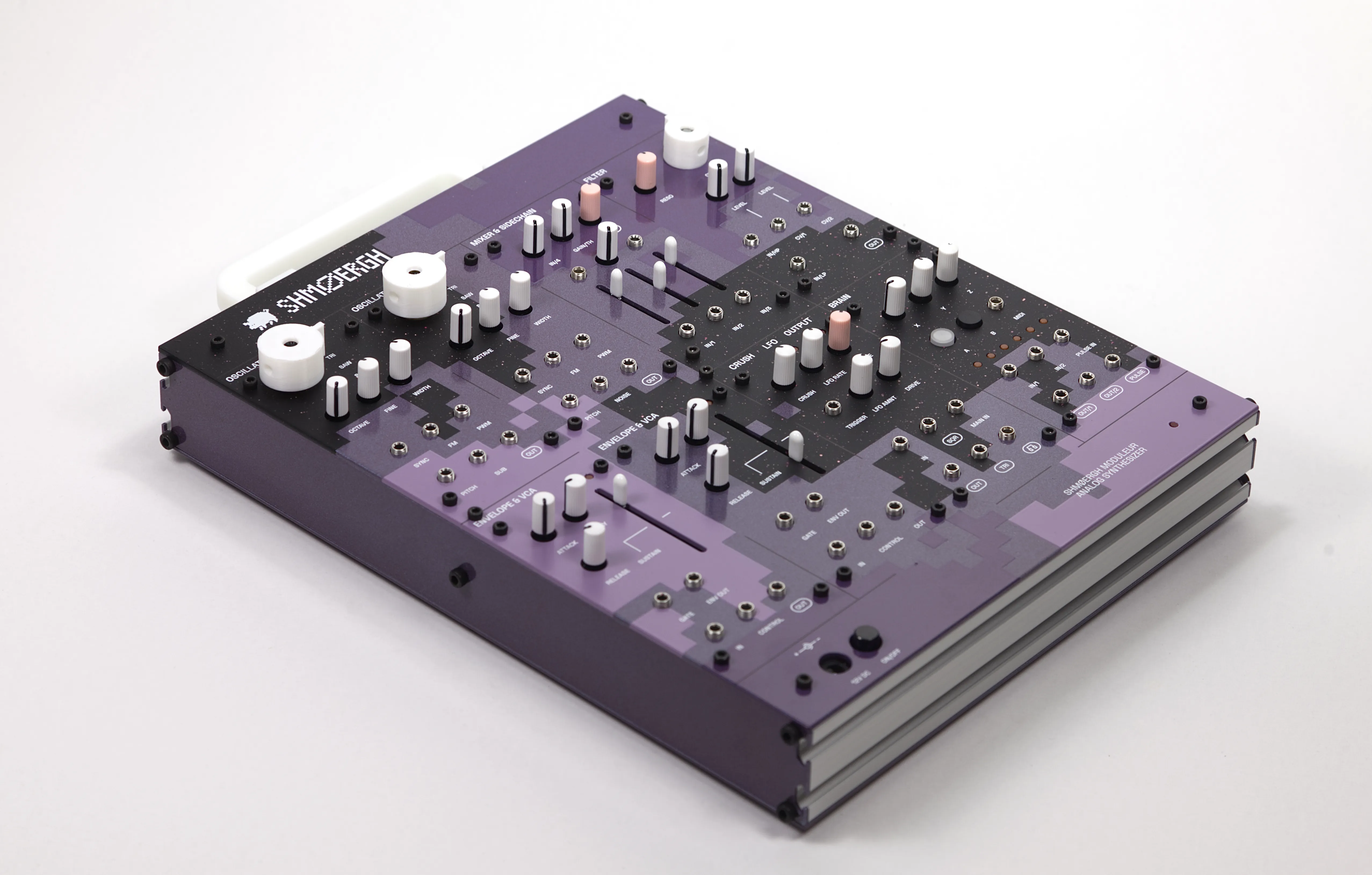

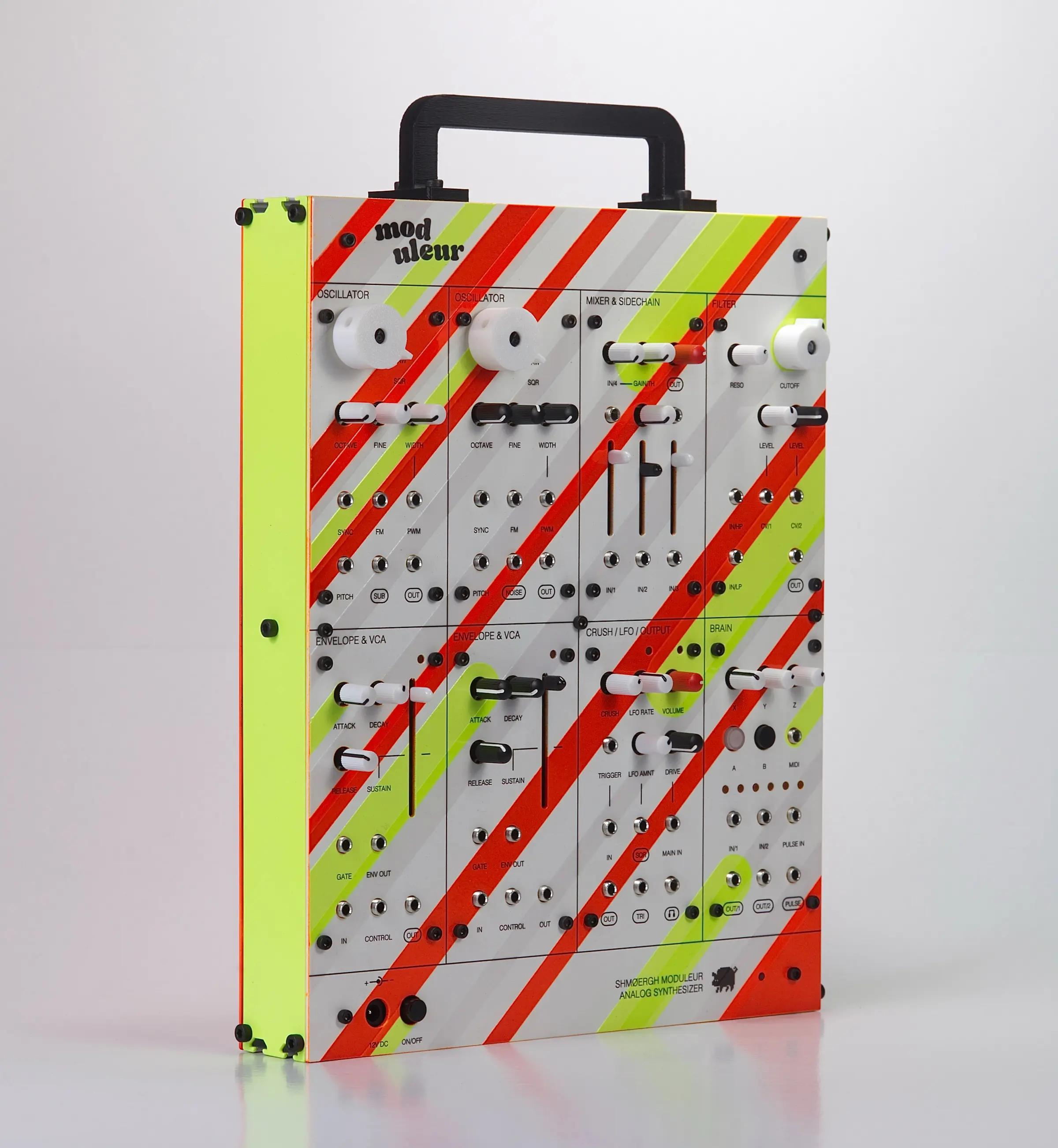

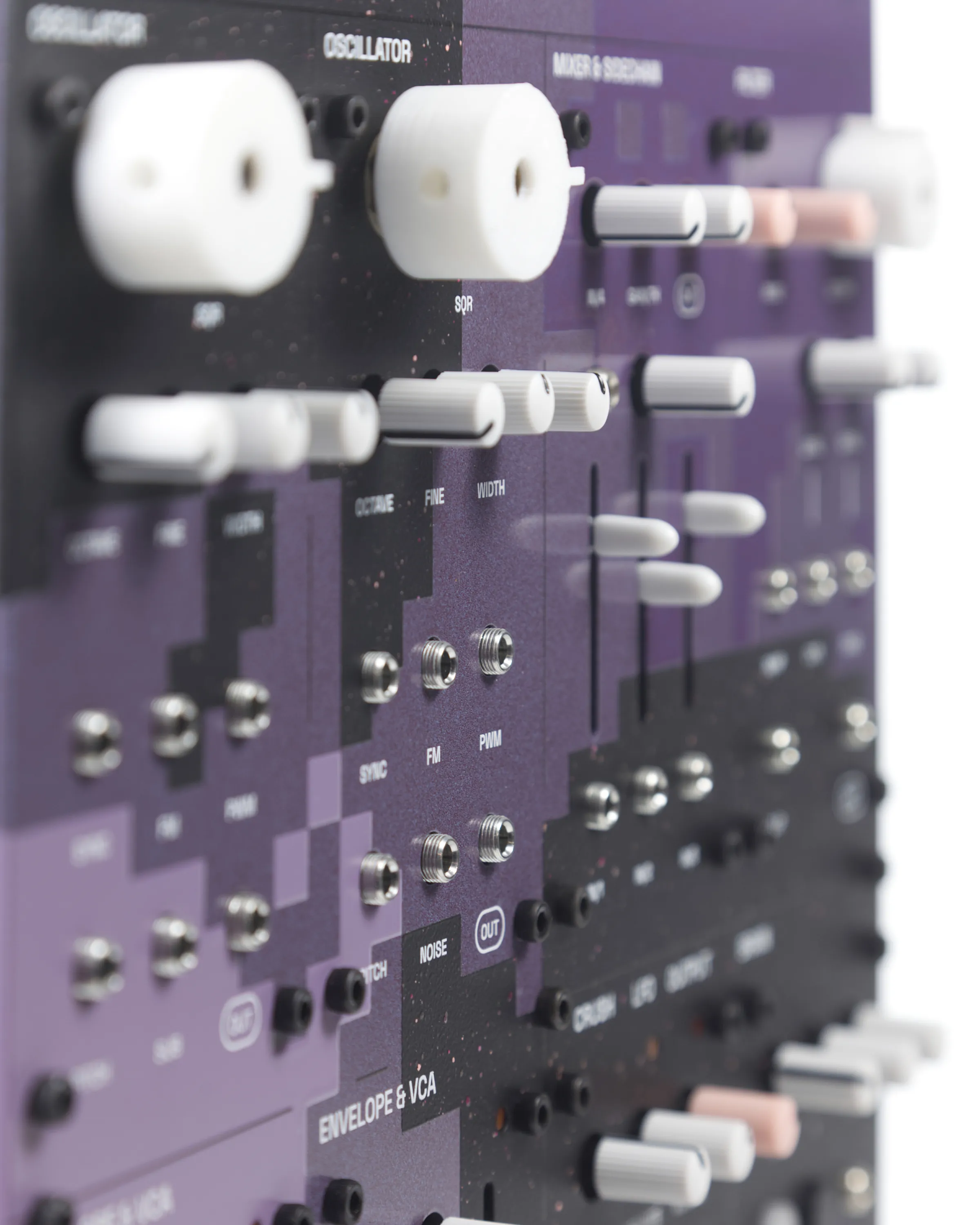

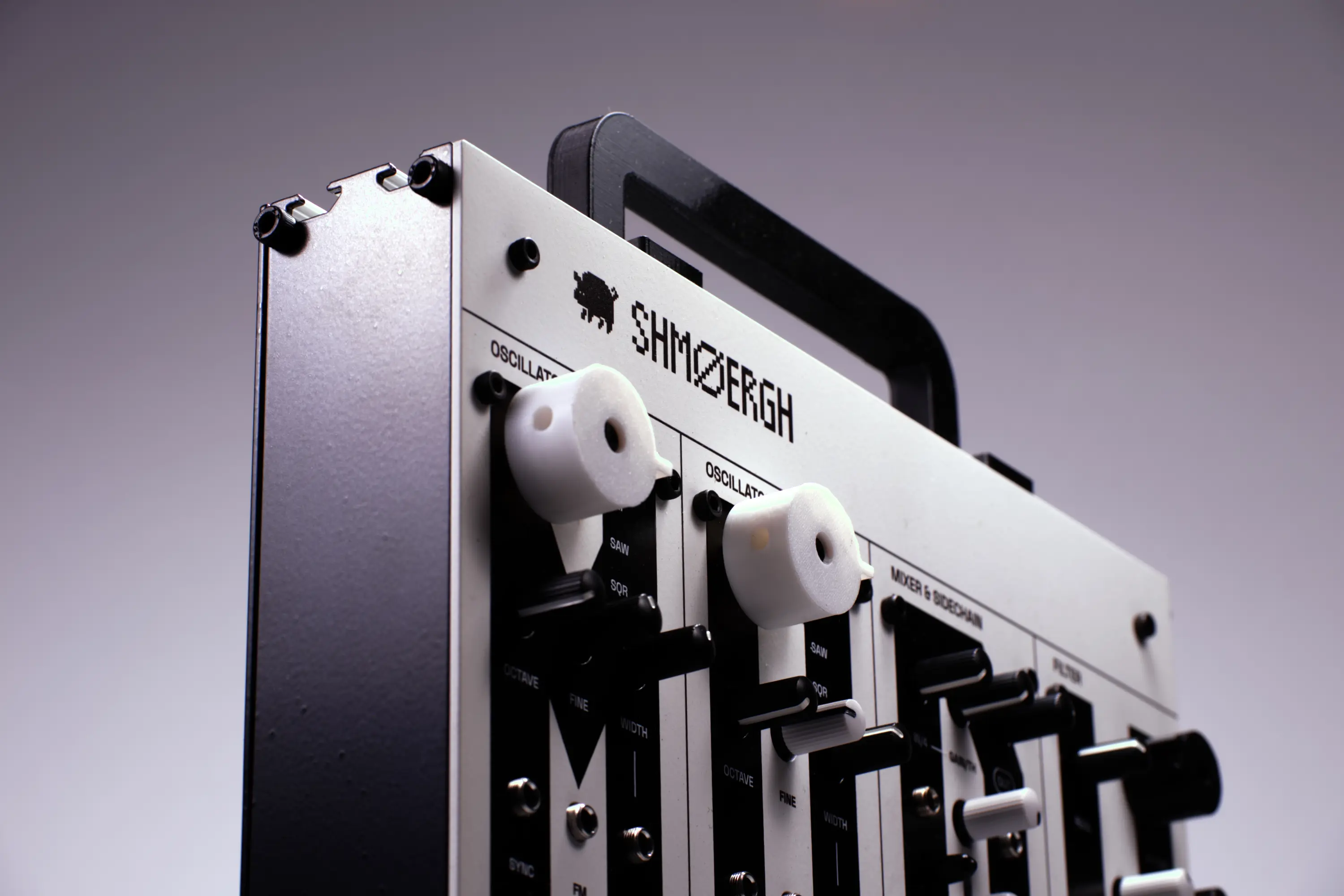

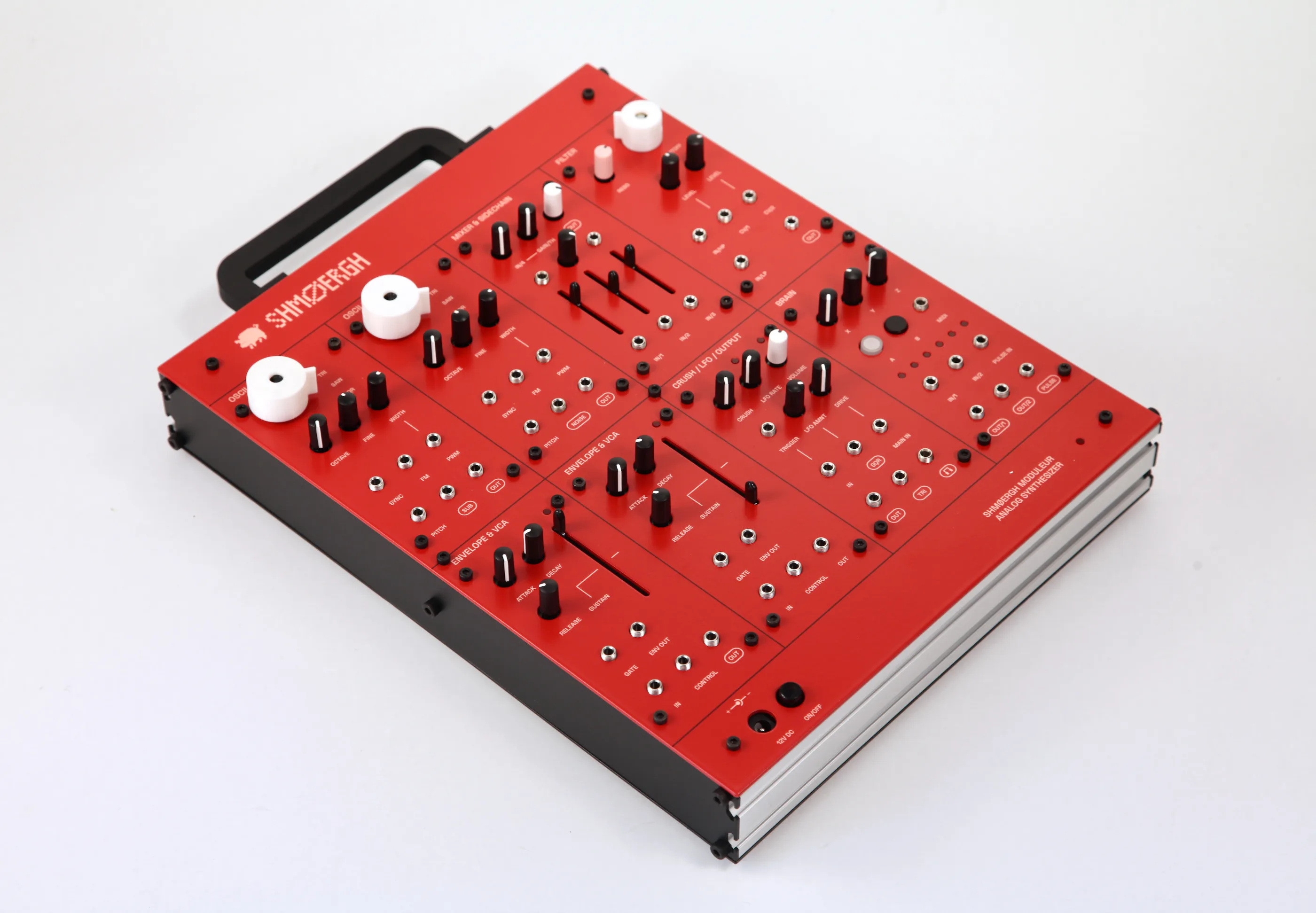

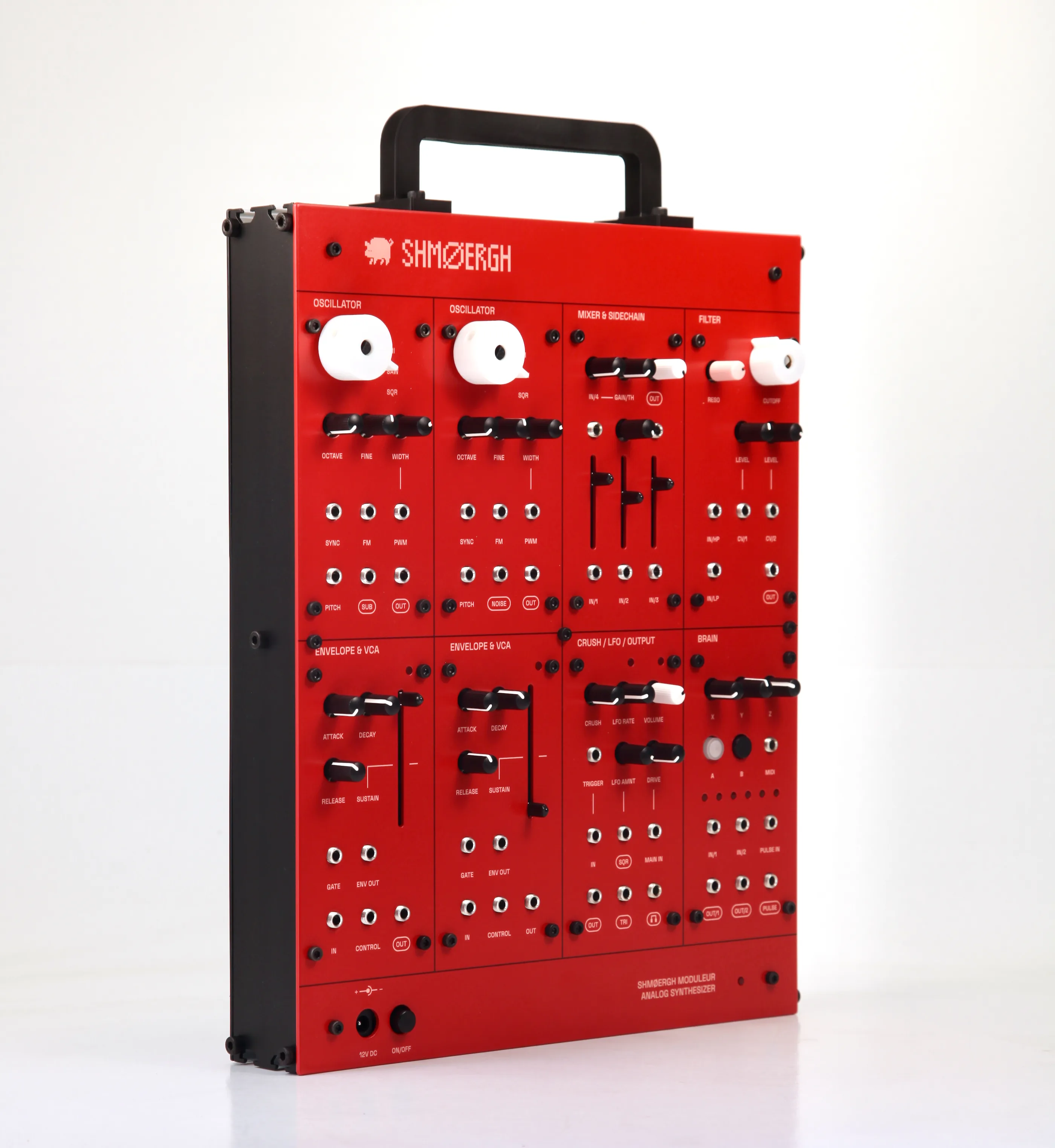

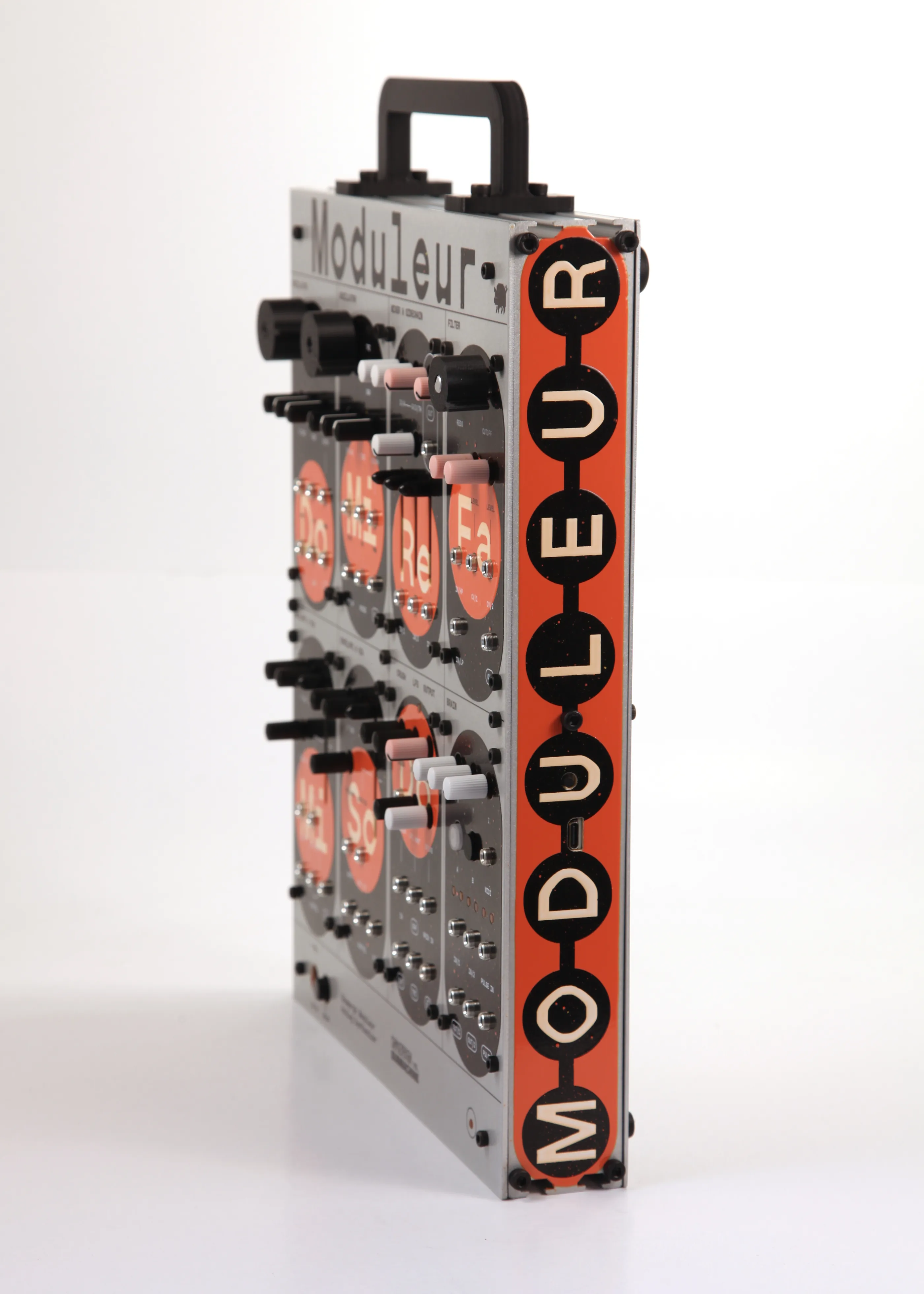

A brickhouse beauty

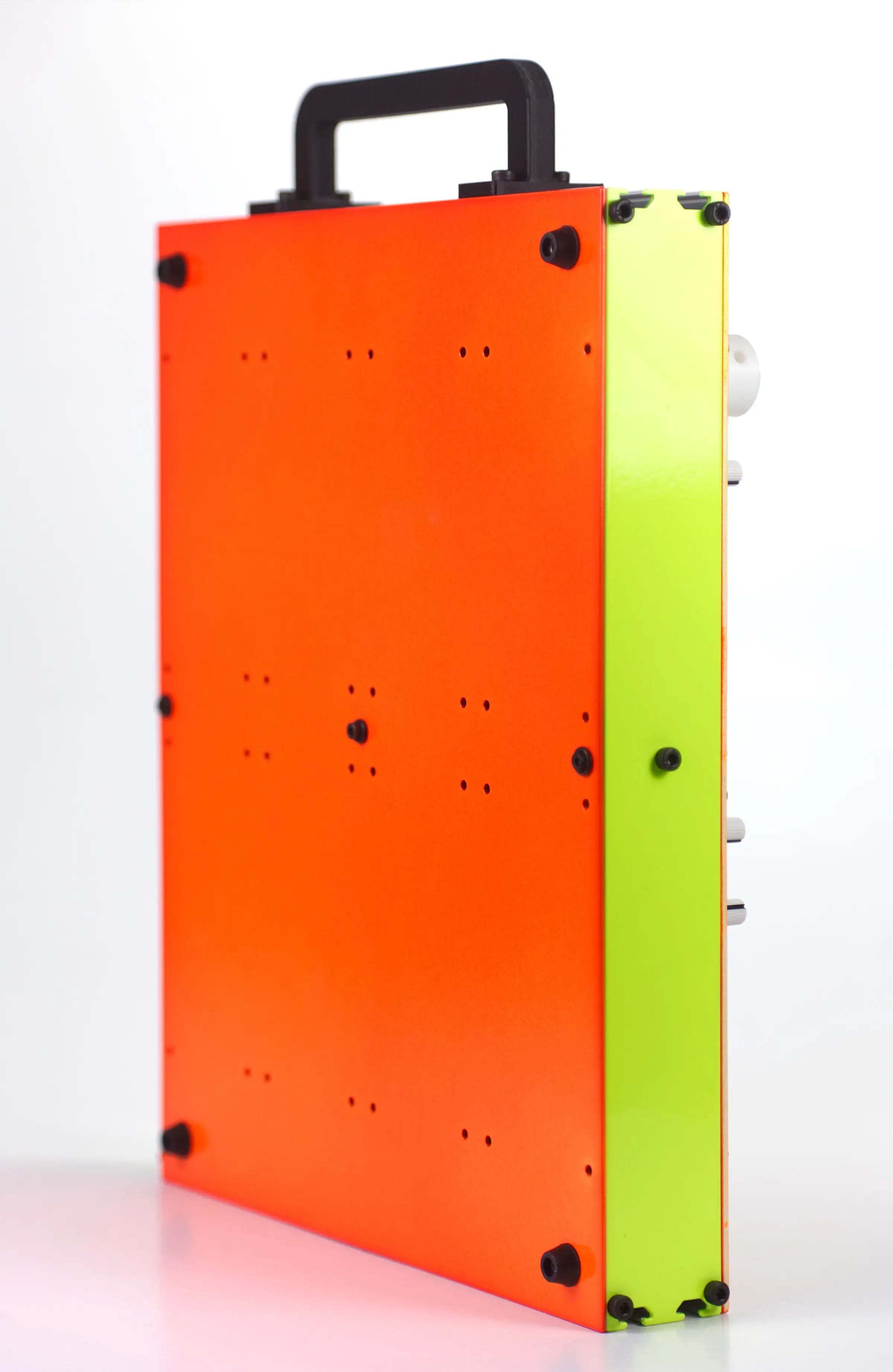

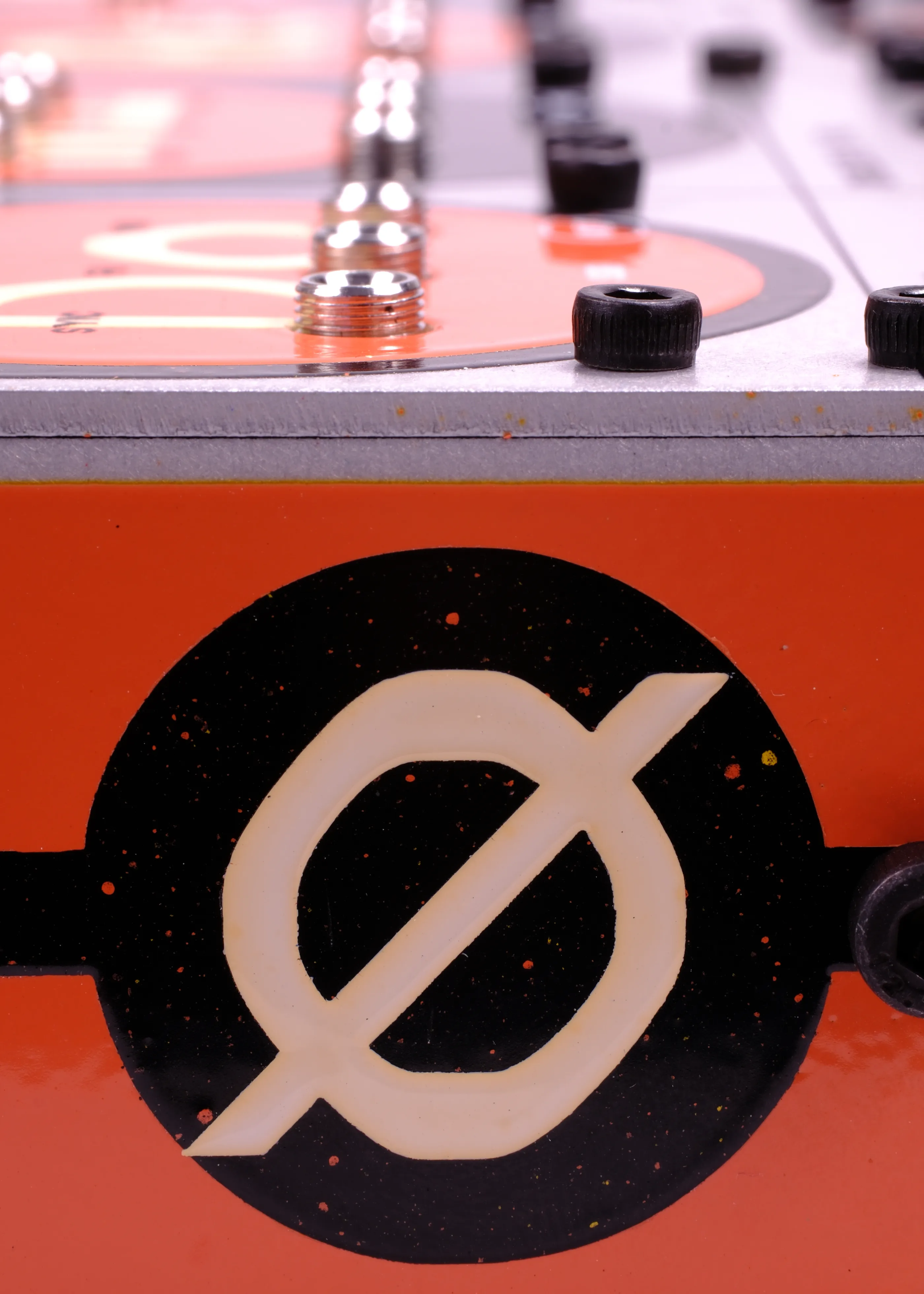

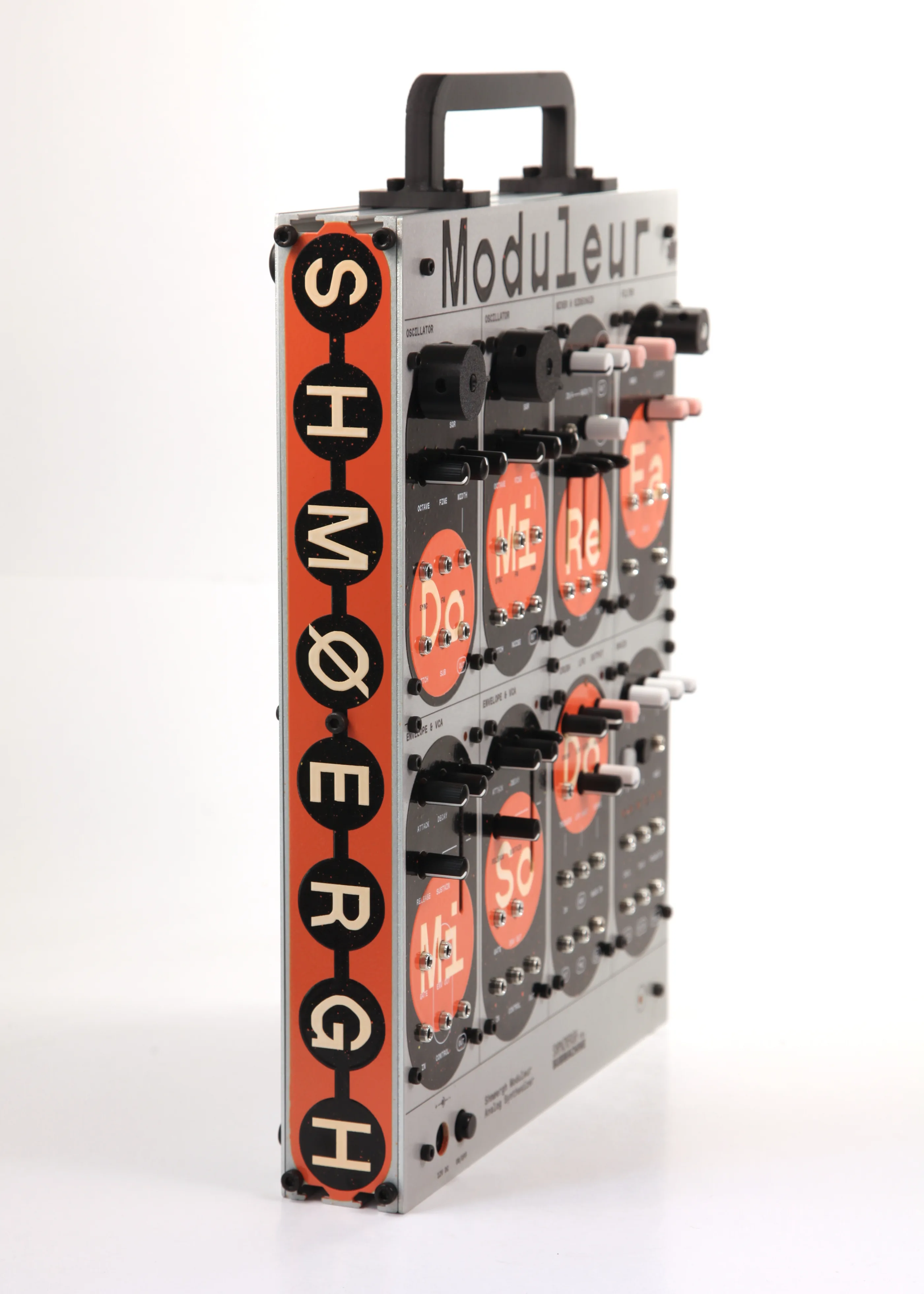

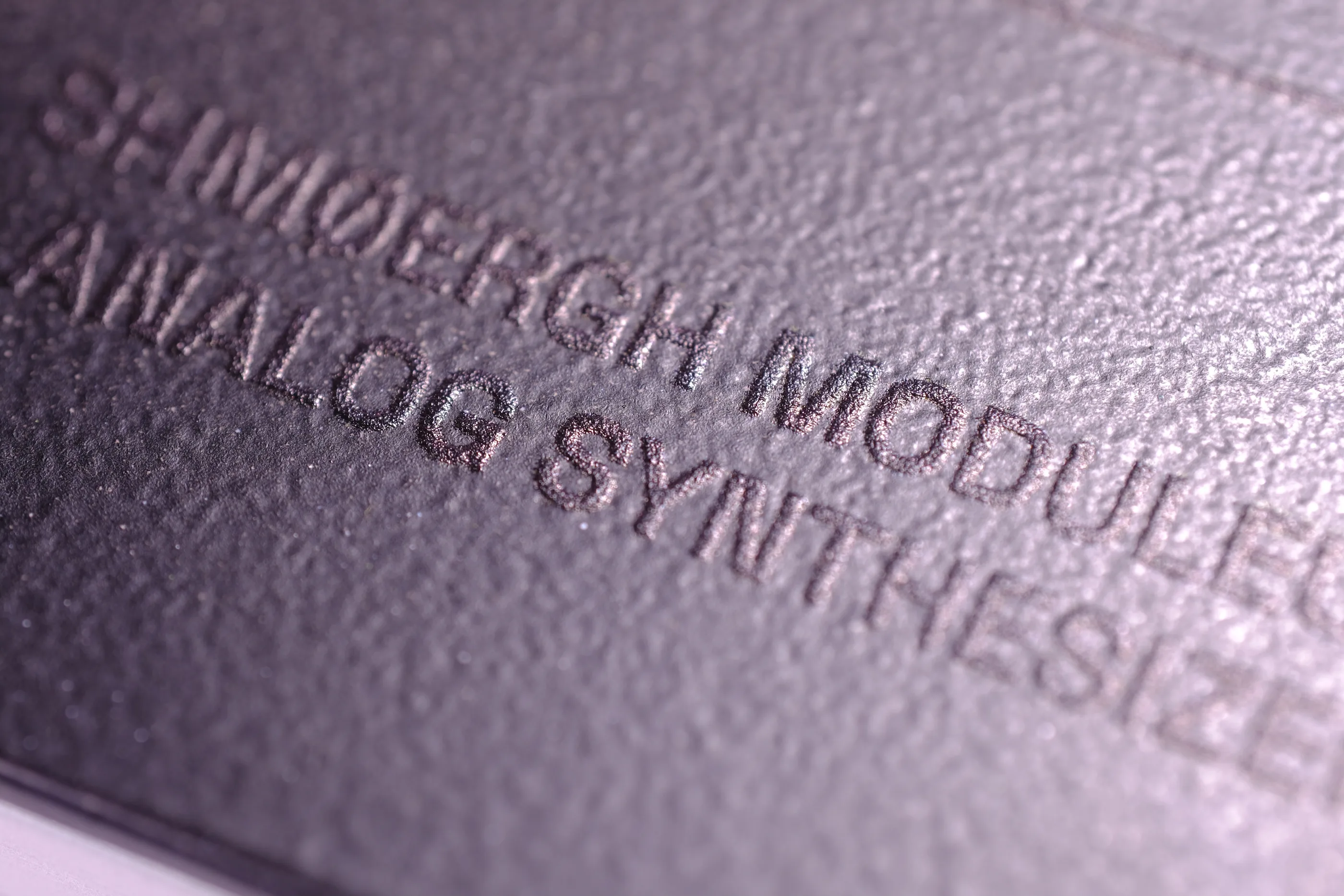

Built from thick aluminum, powder coated, UV printed, and fully handmade. The Moduleur is where our love of design meets our love of music and tech.

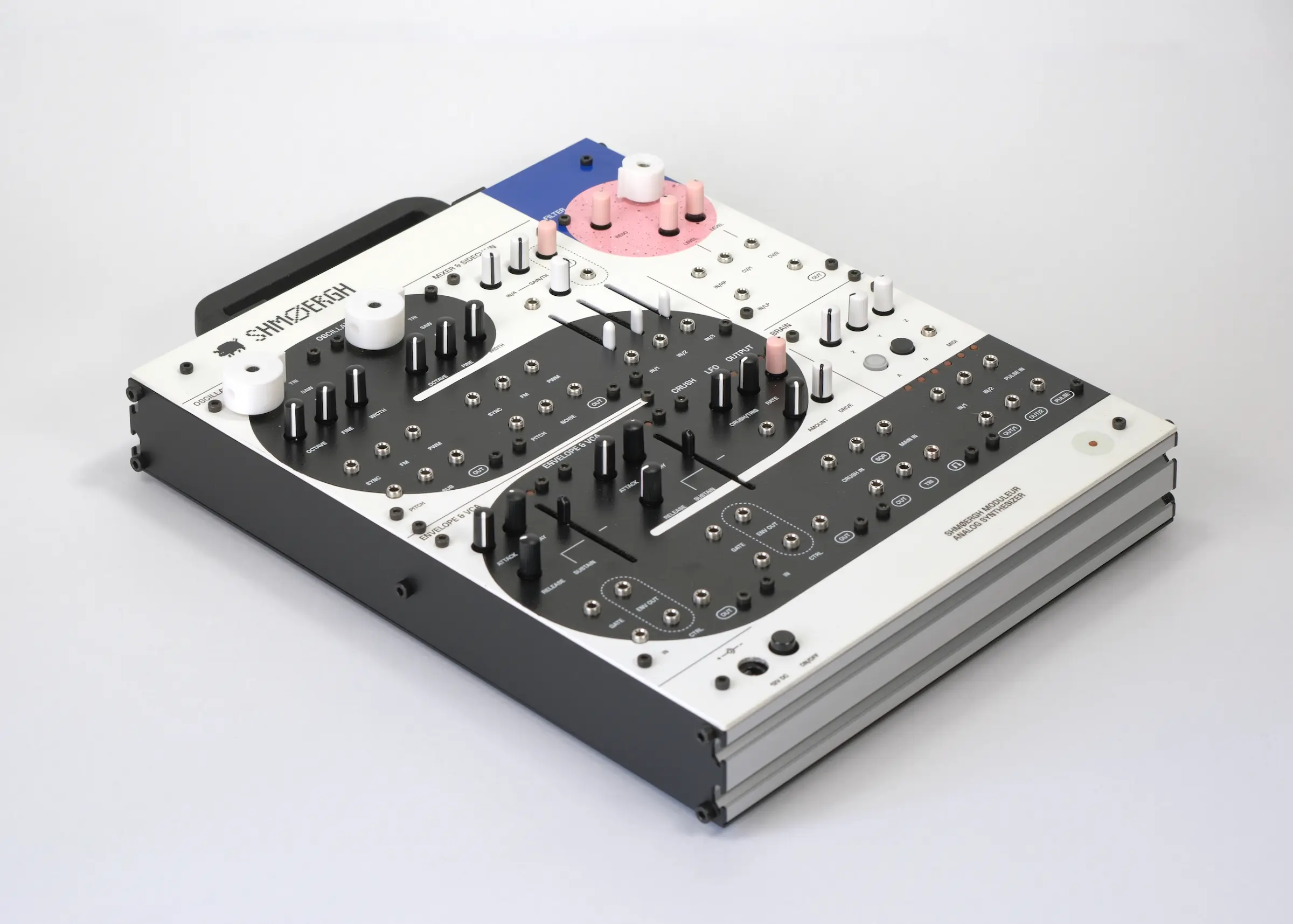

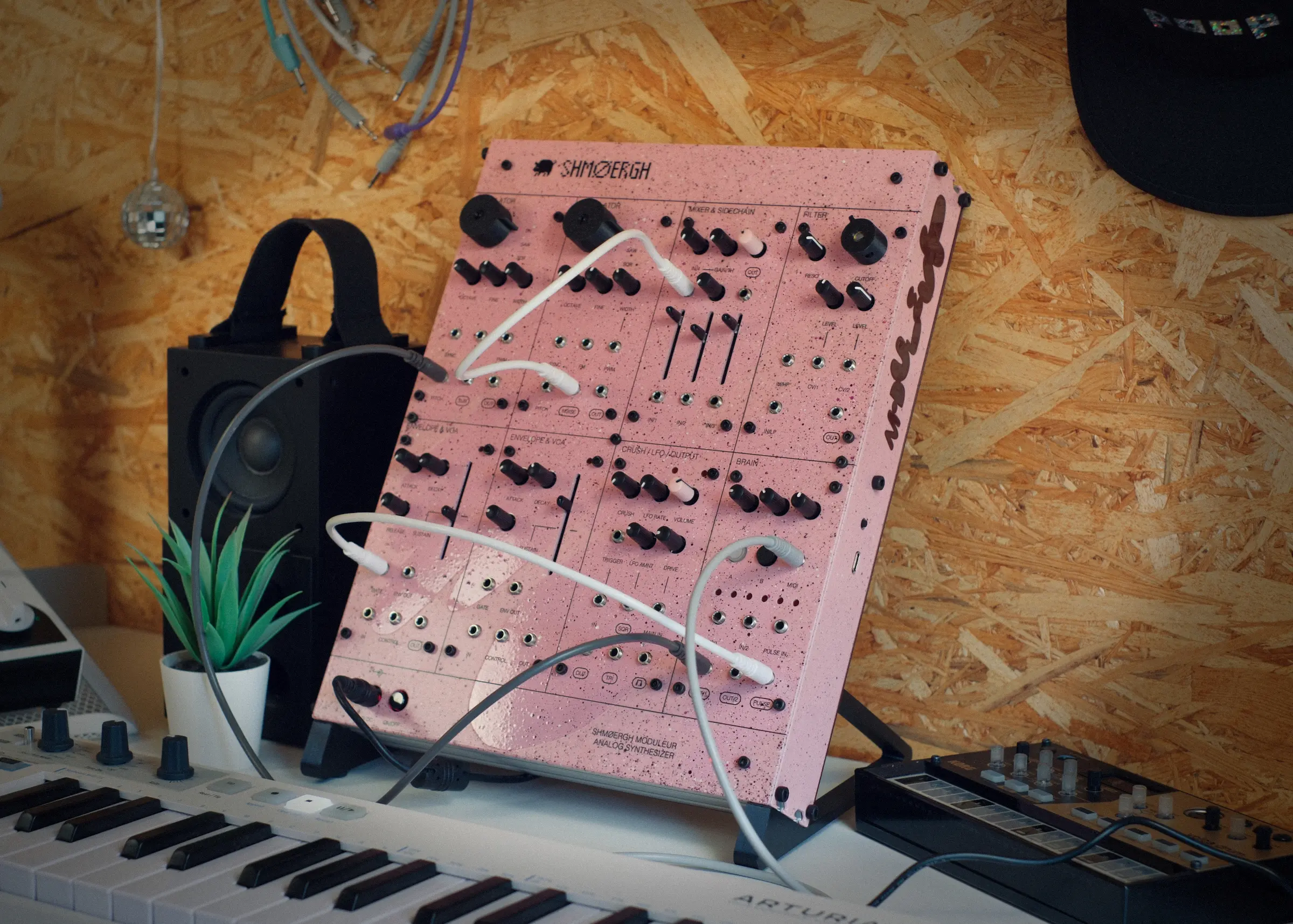

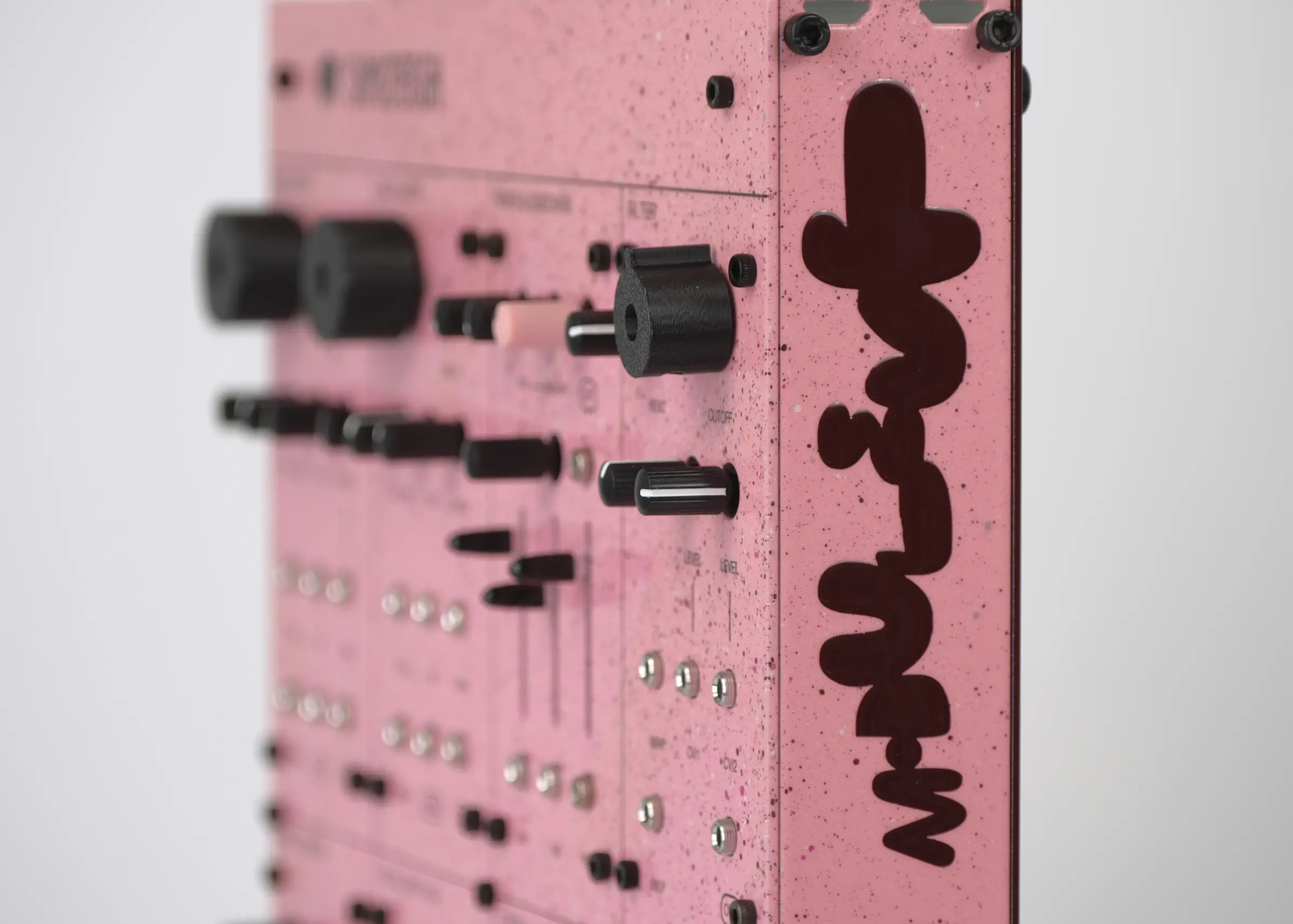

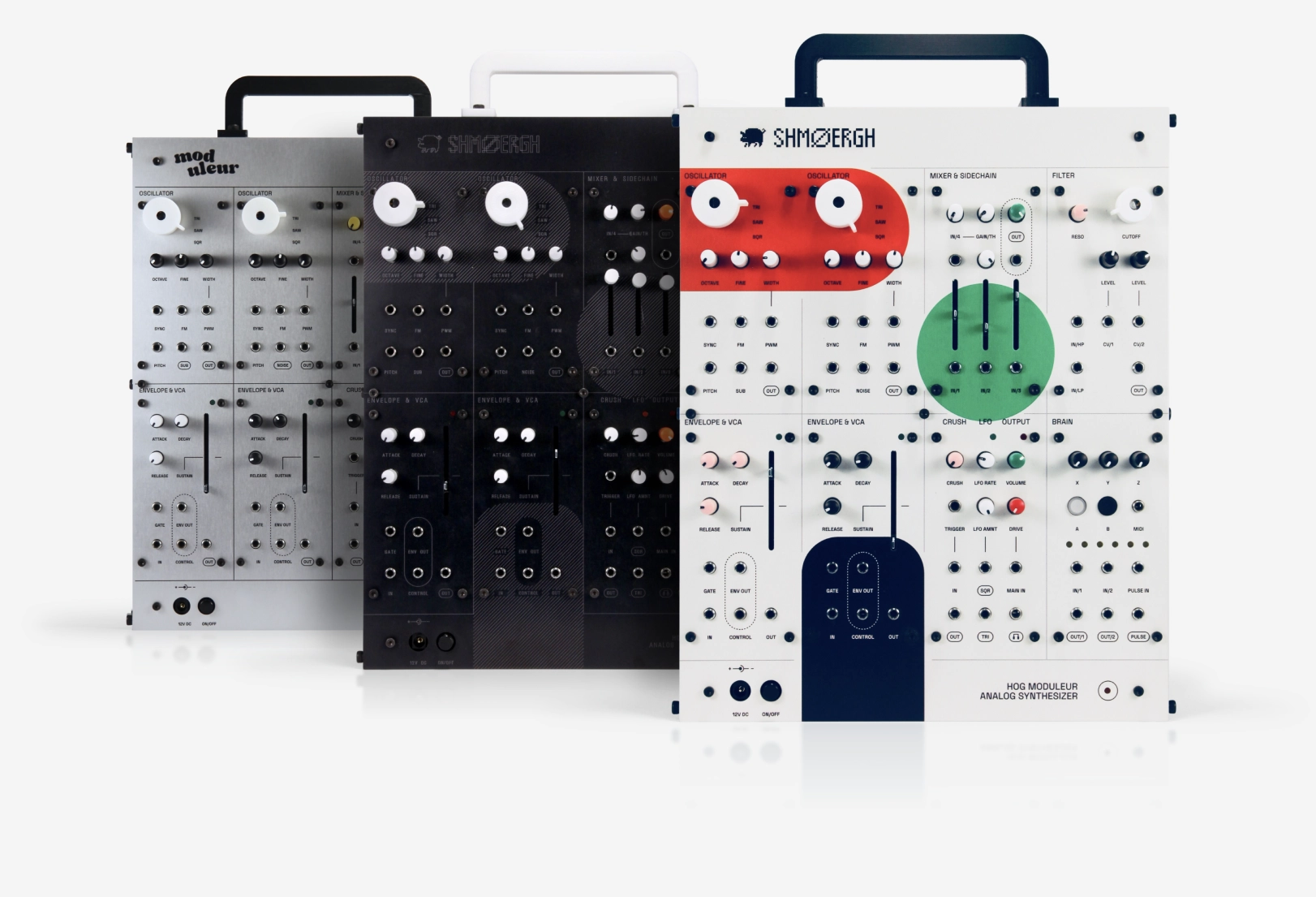

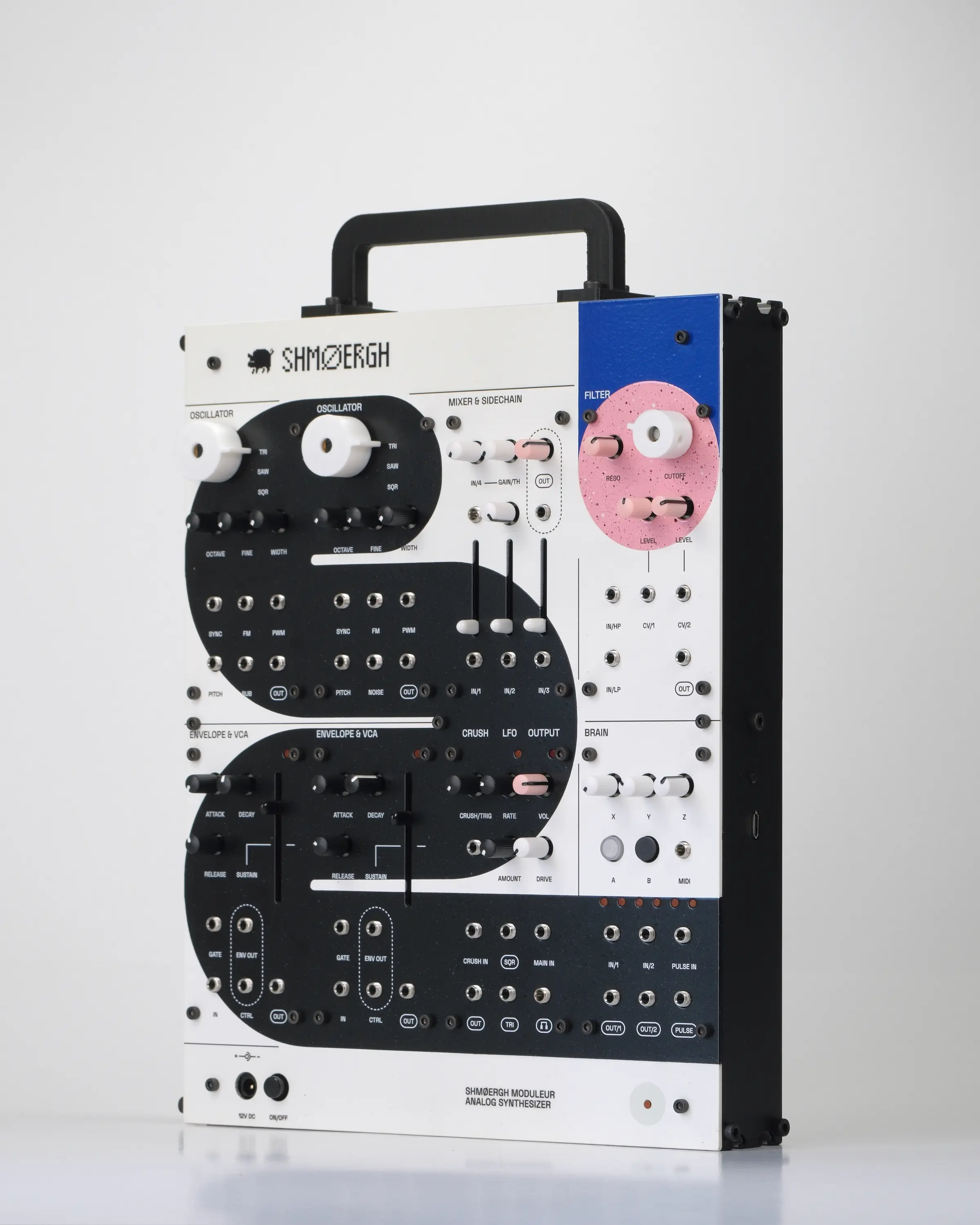

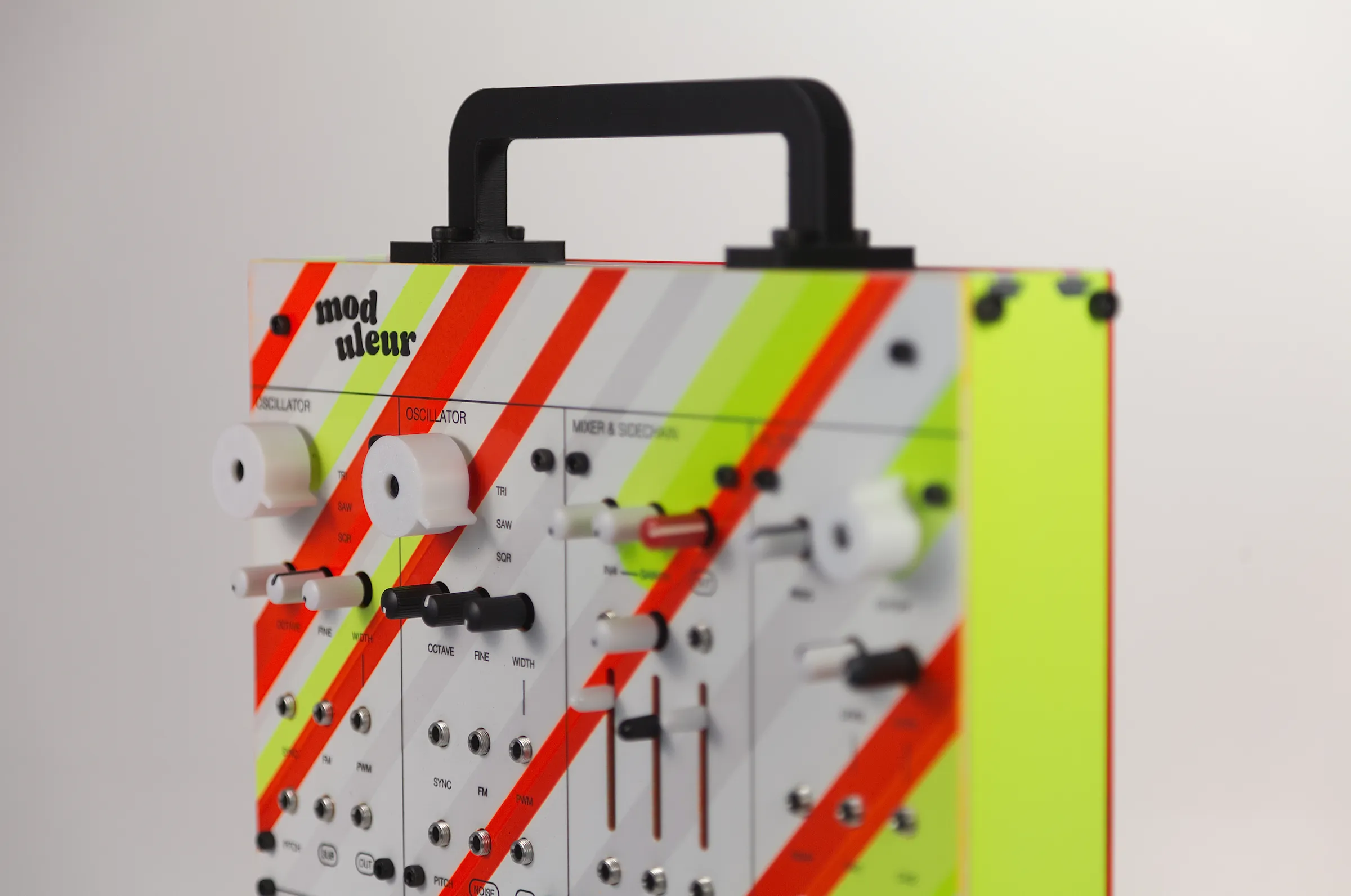

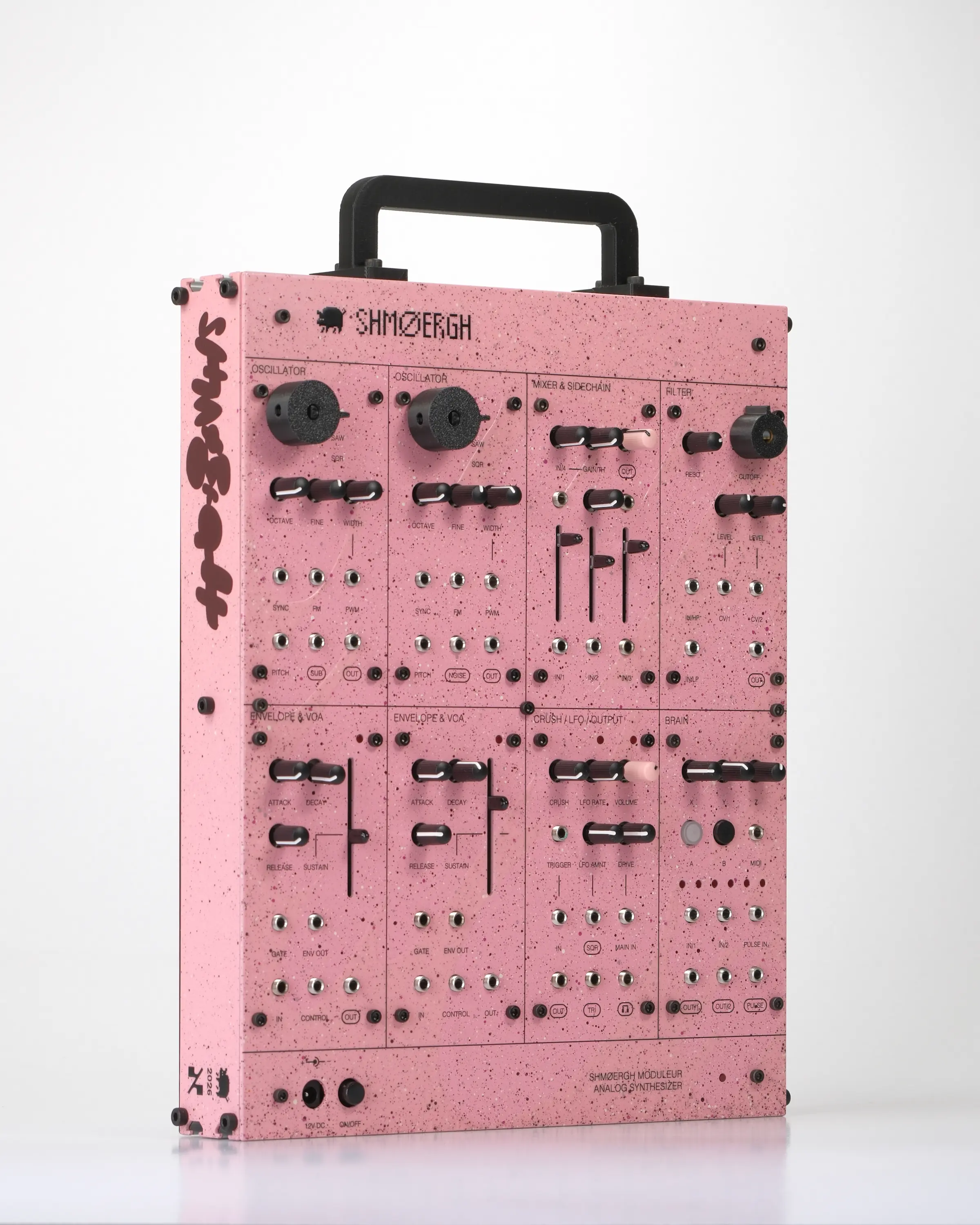

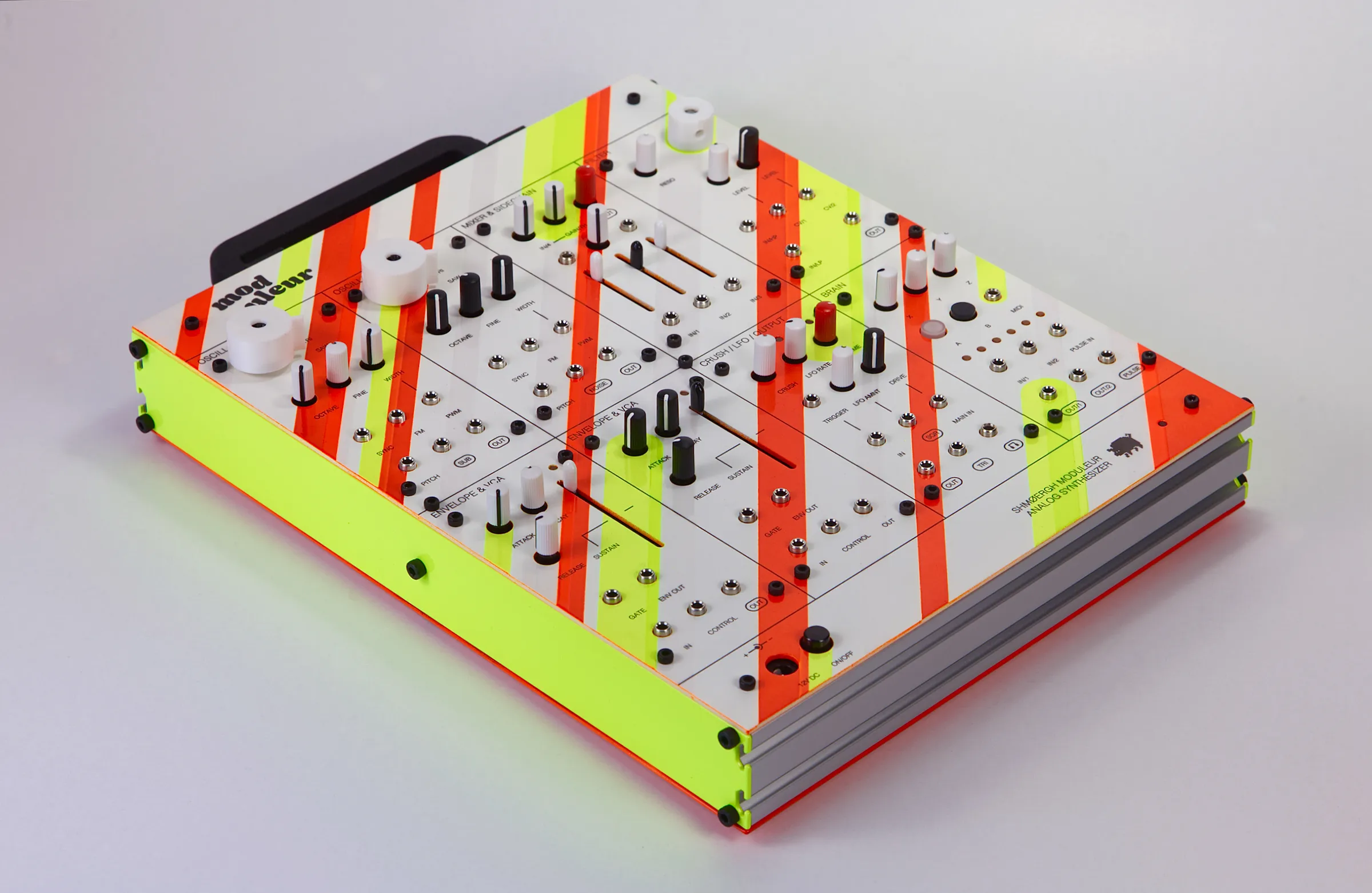

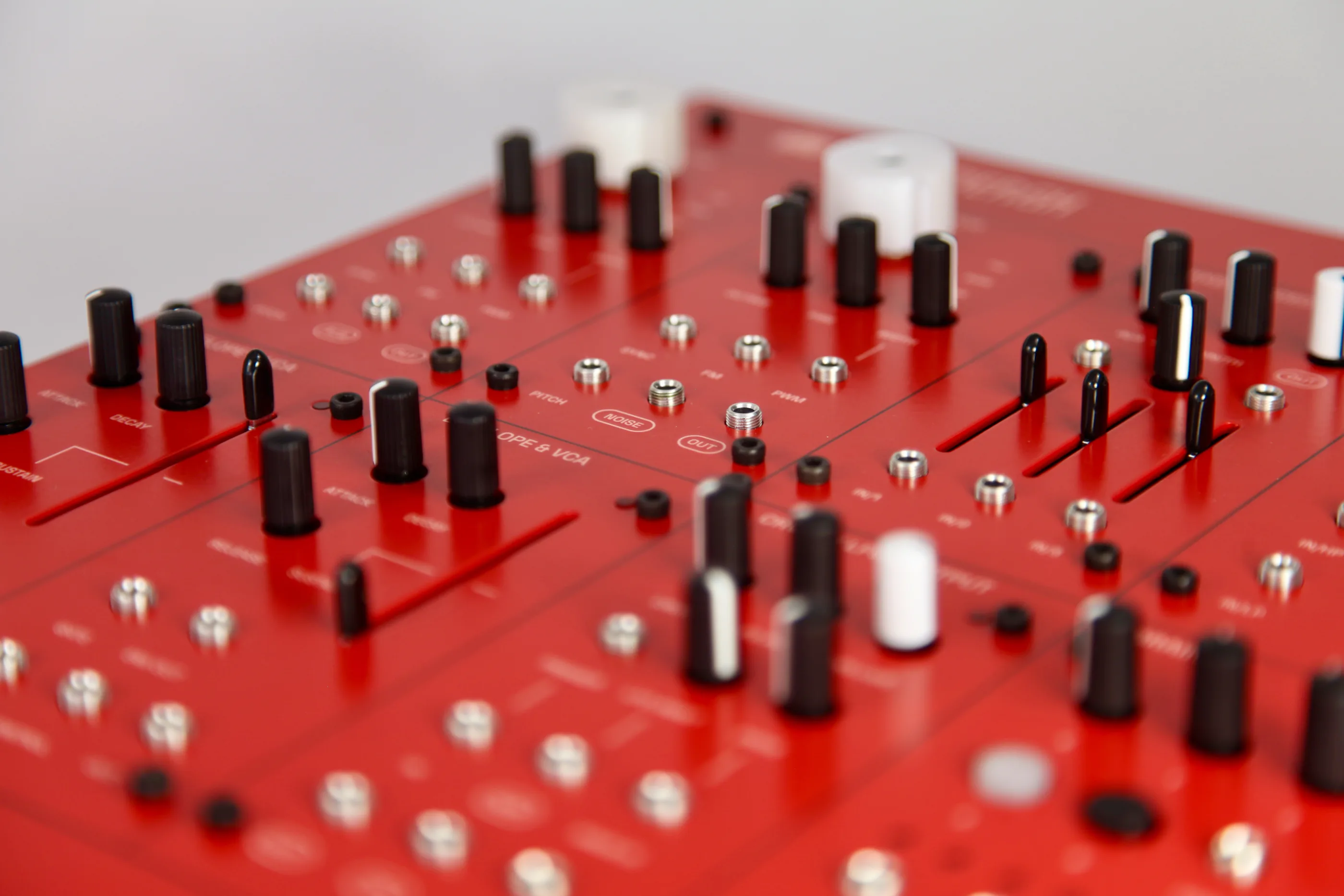

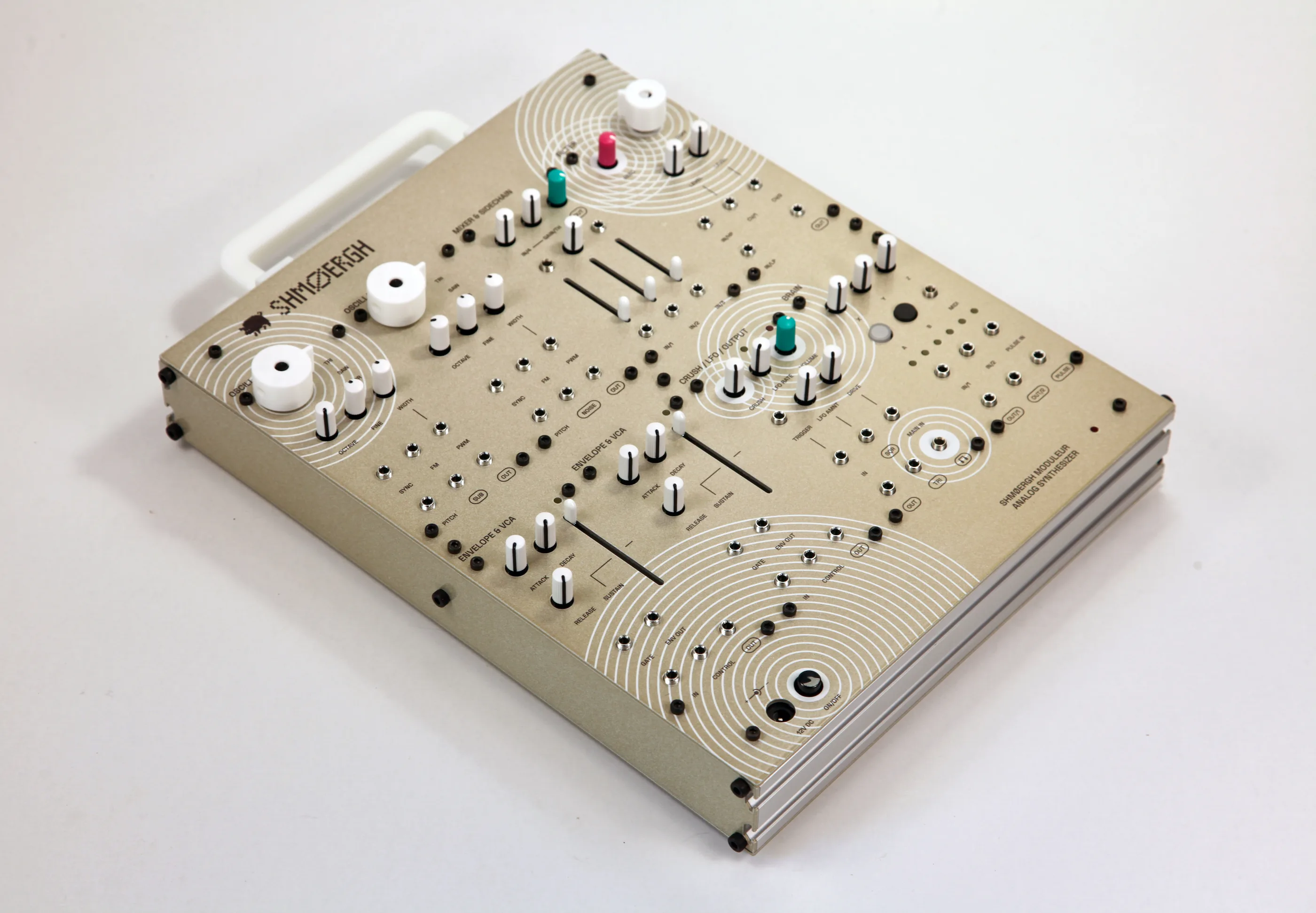

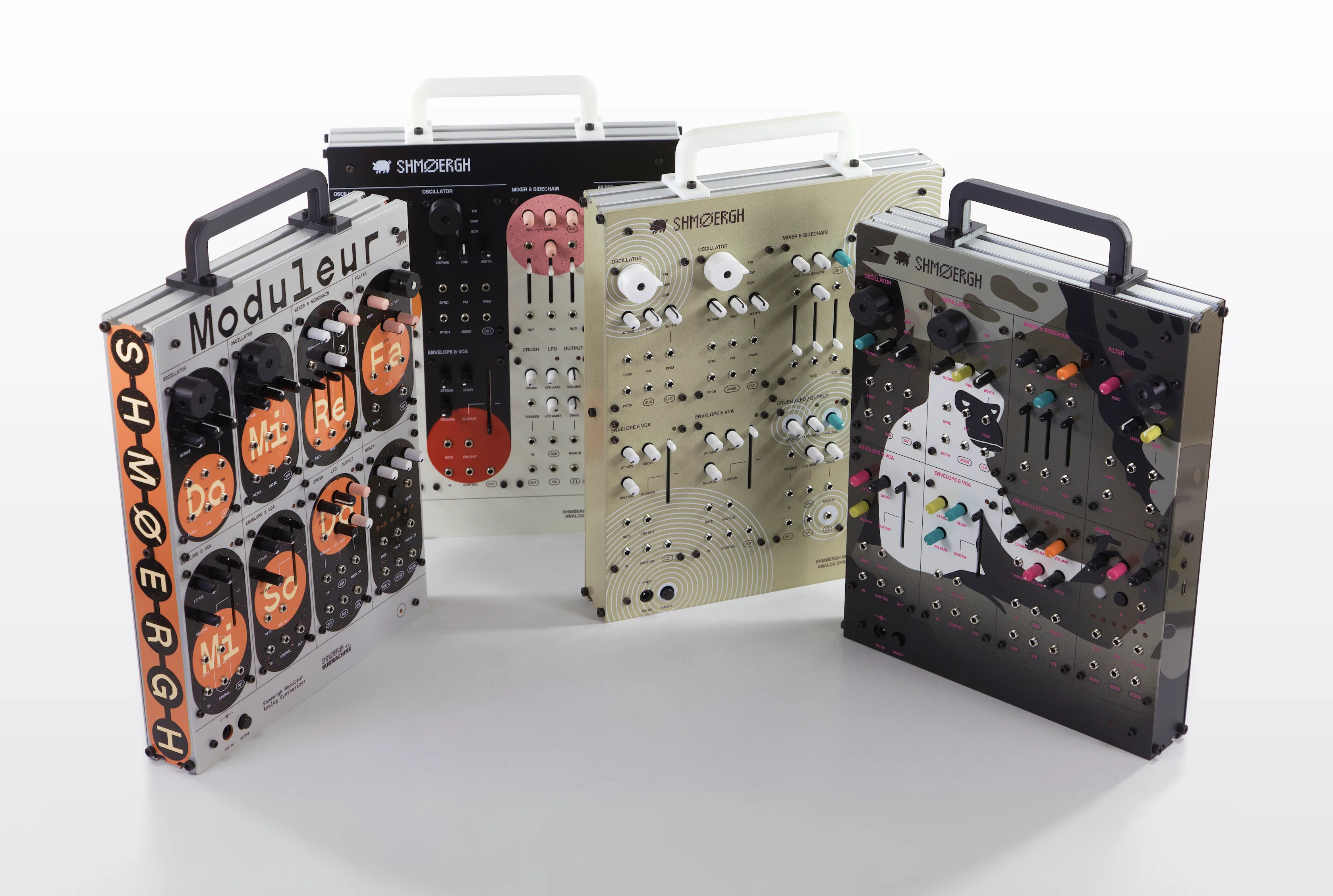

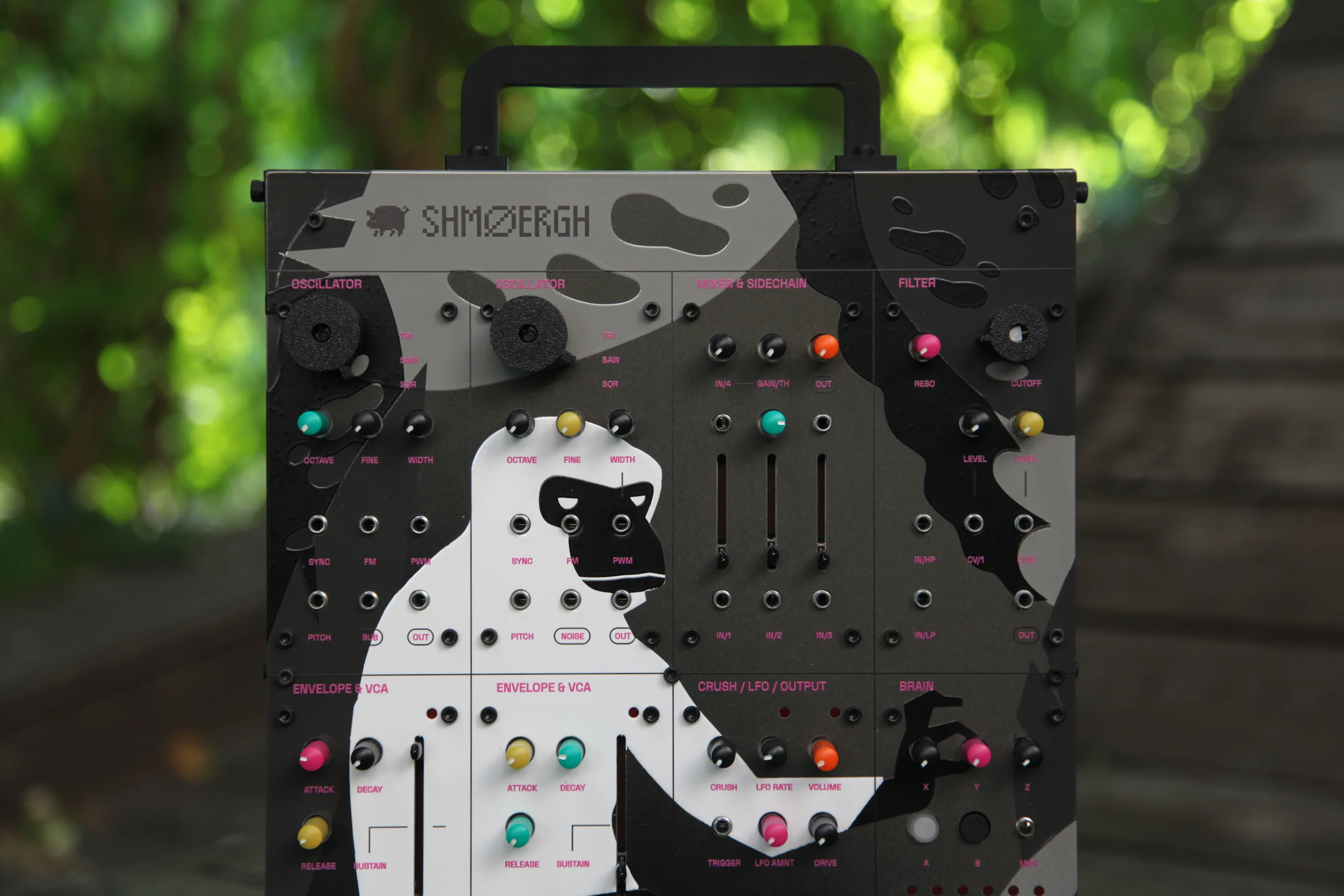

one-of-a-kind

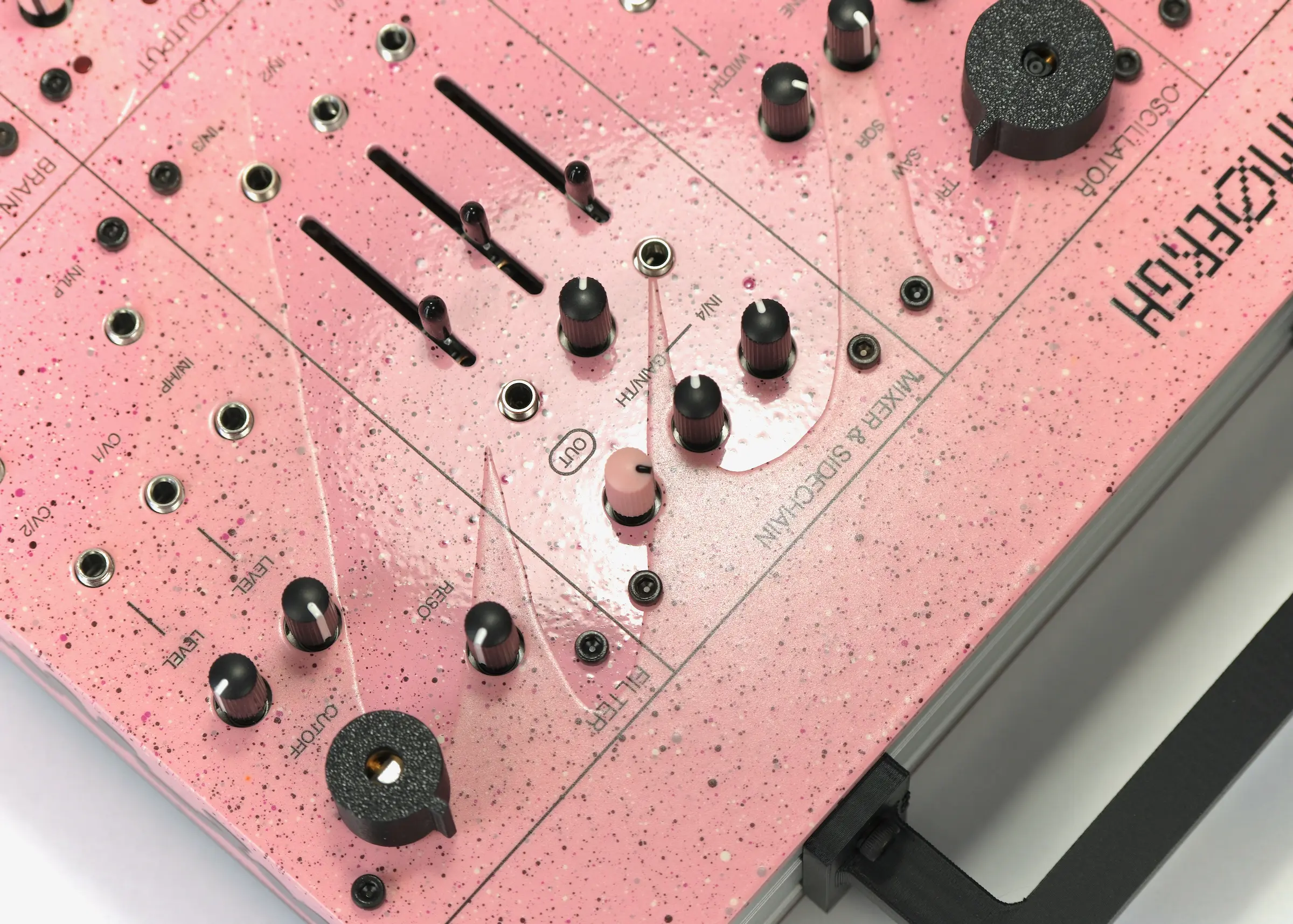

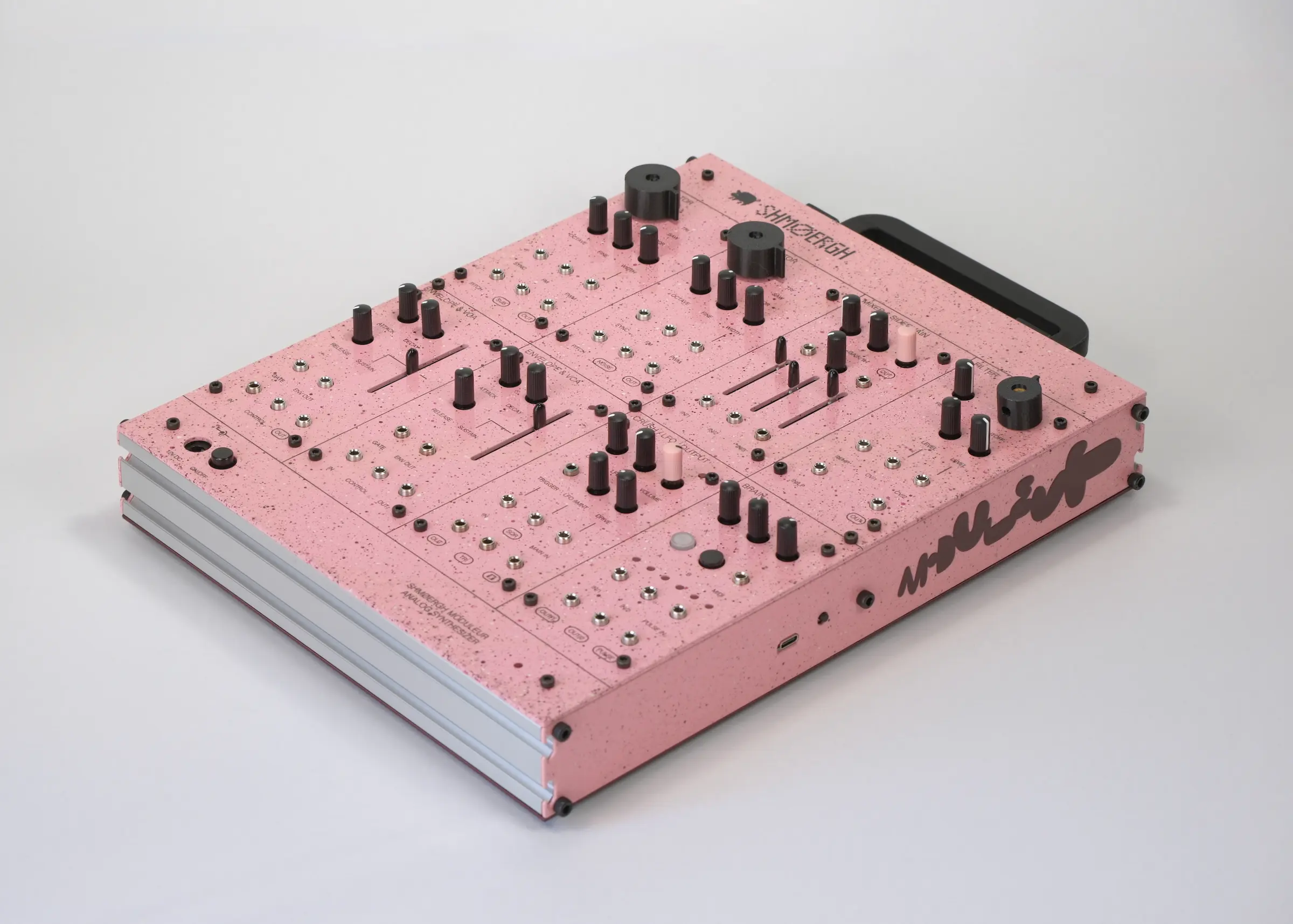

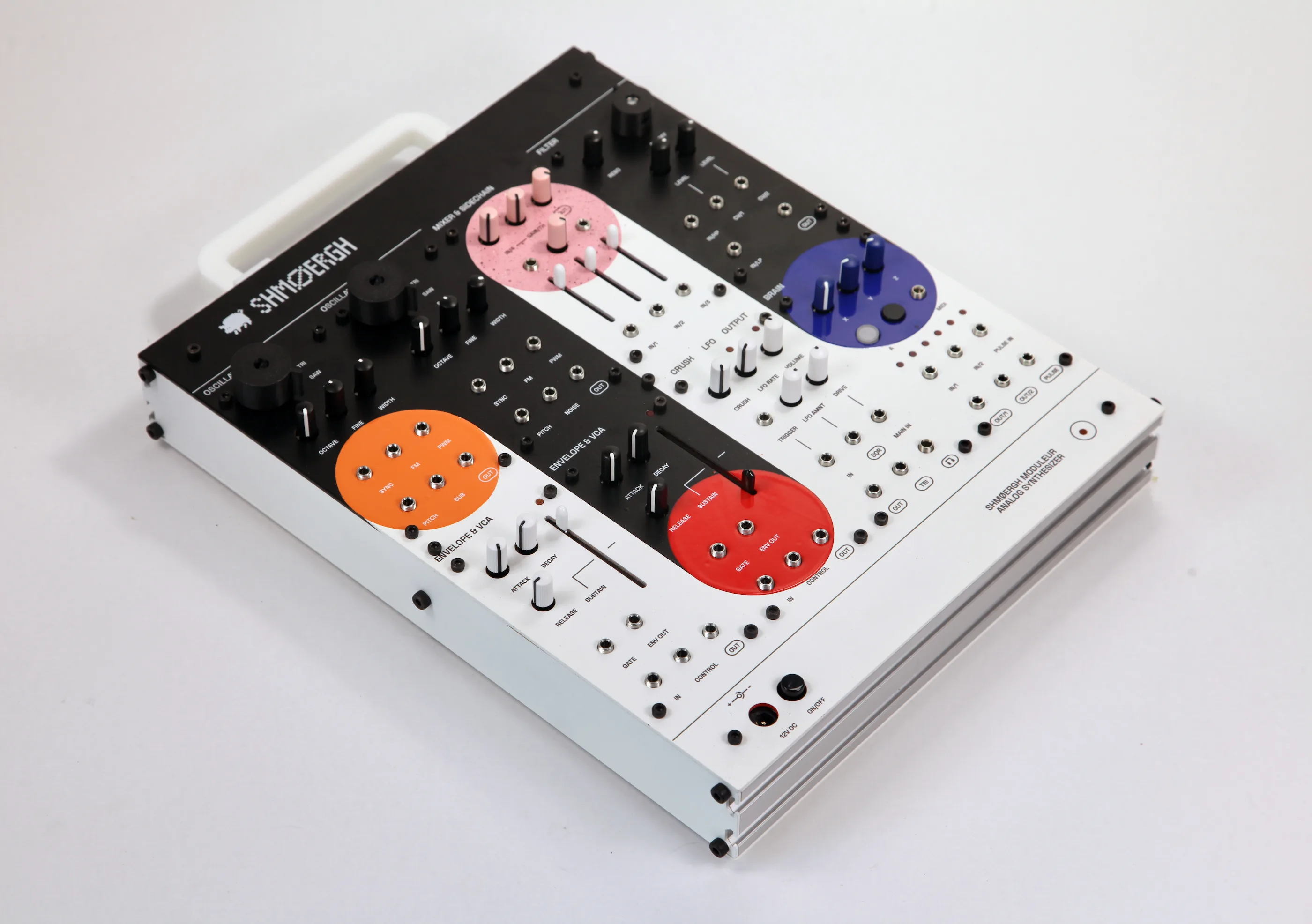

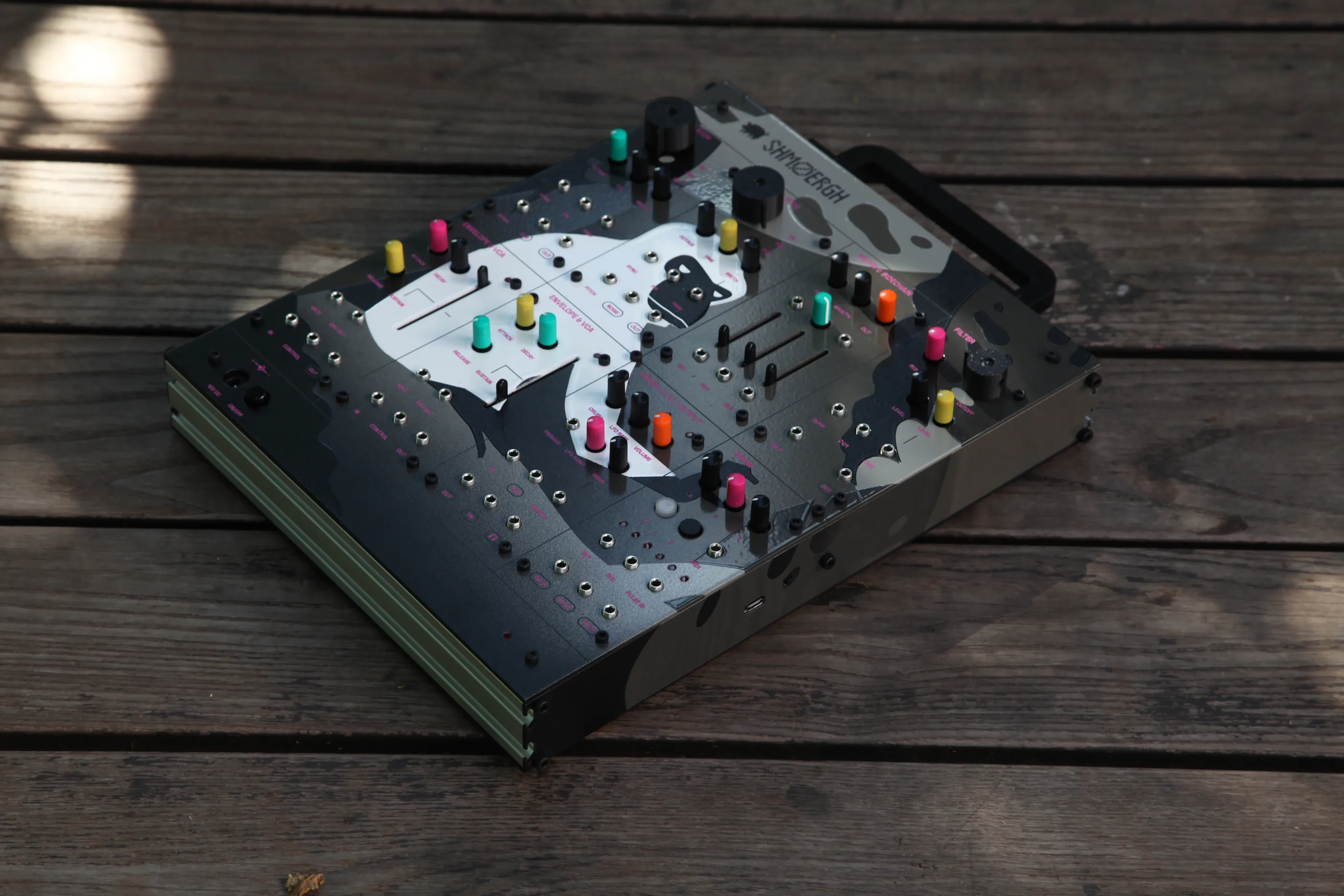

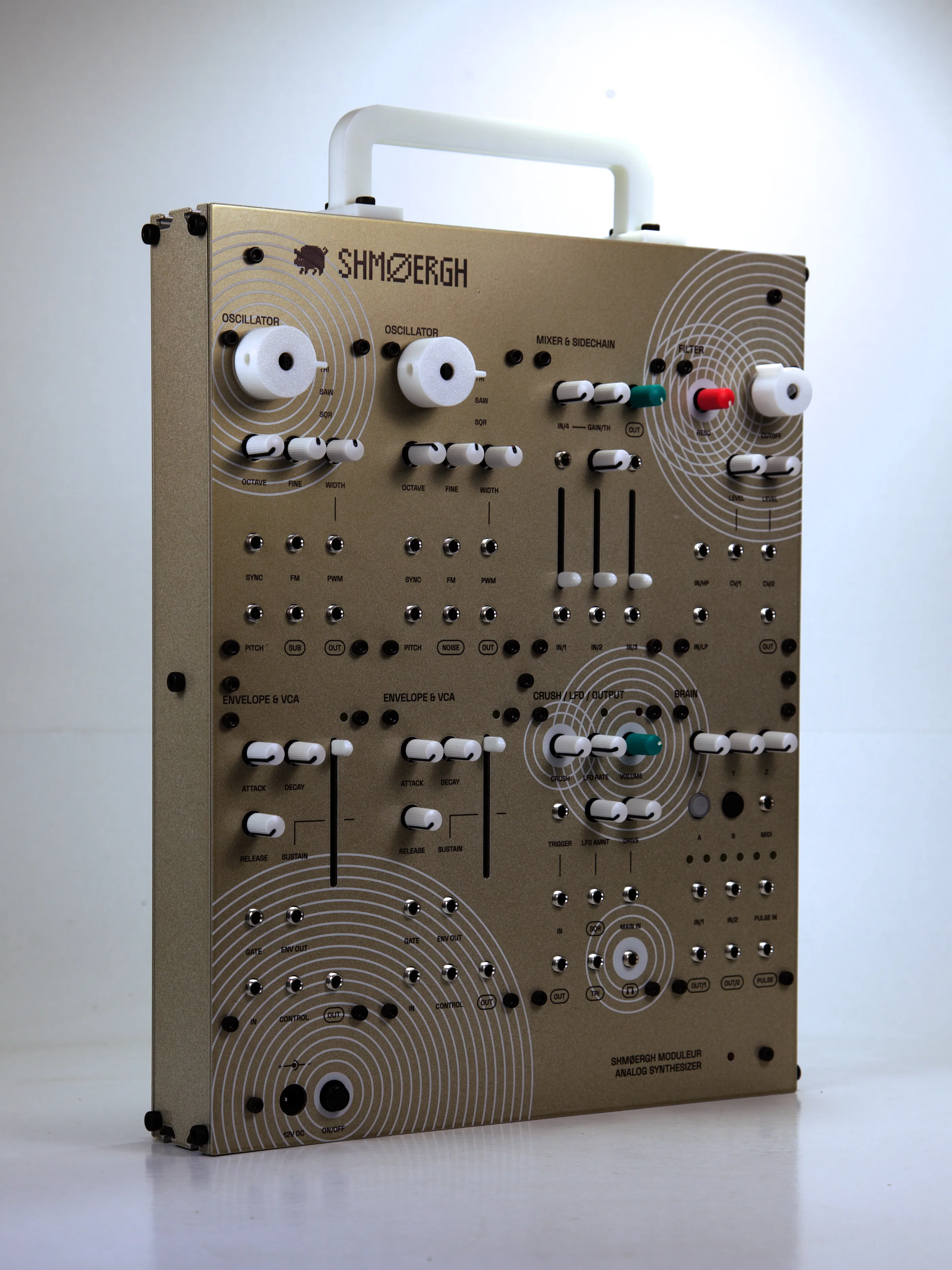

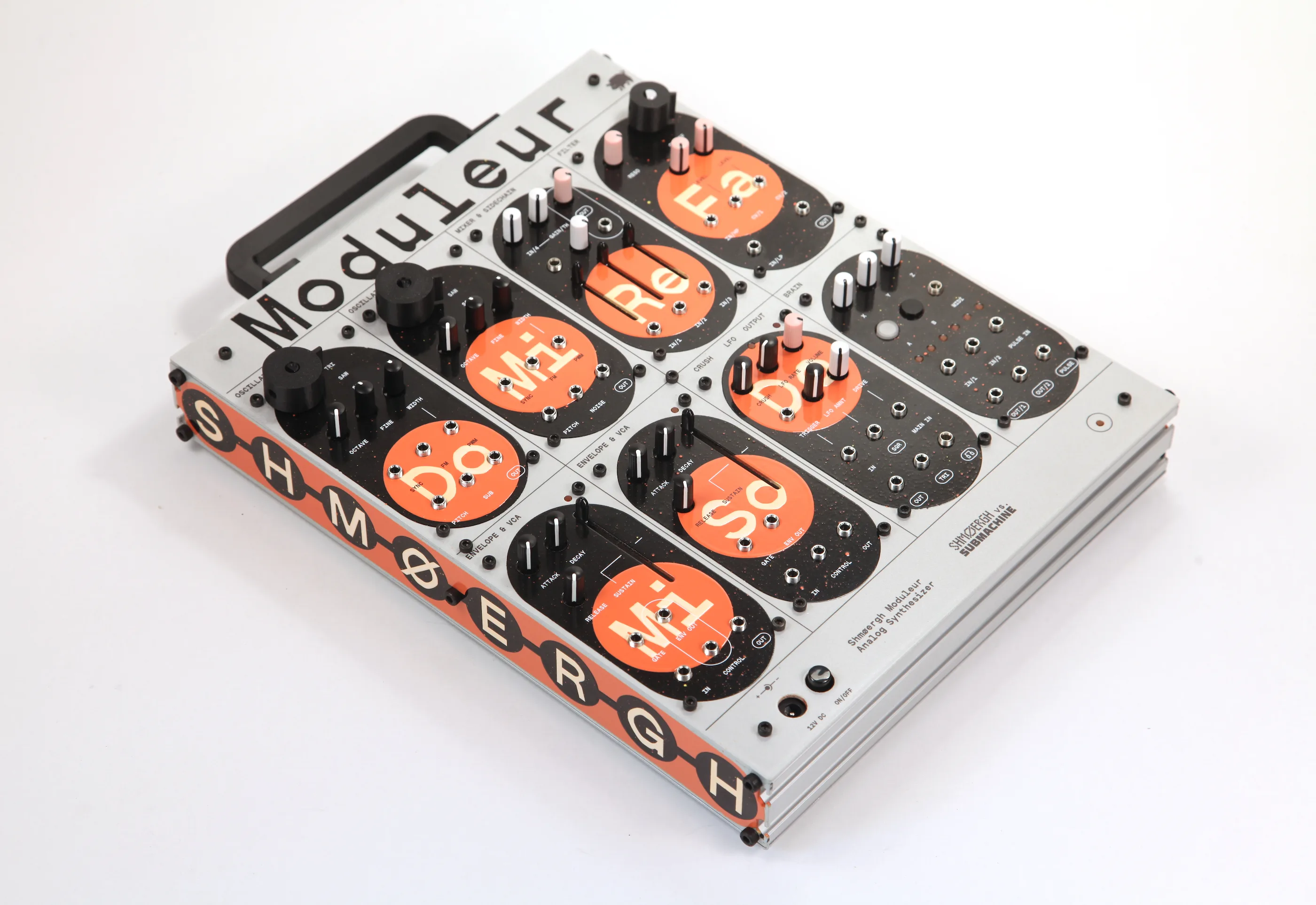

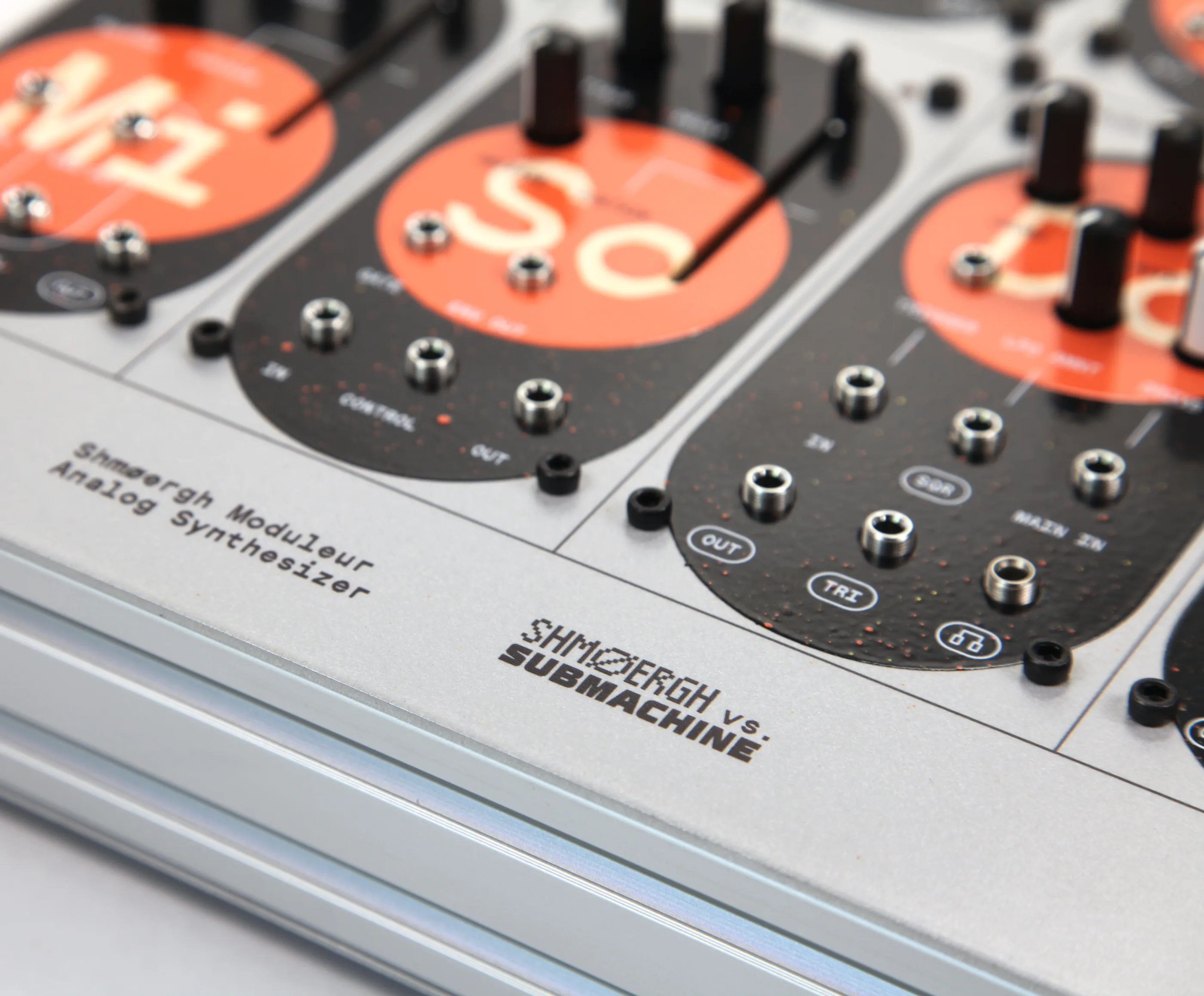

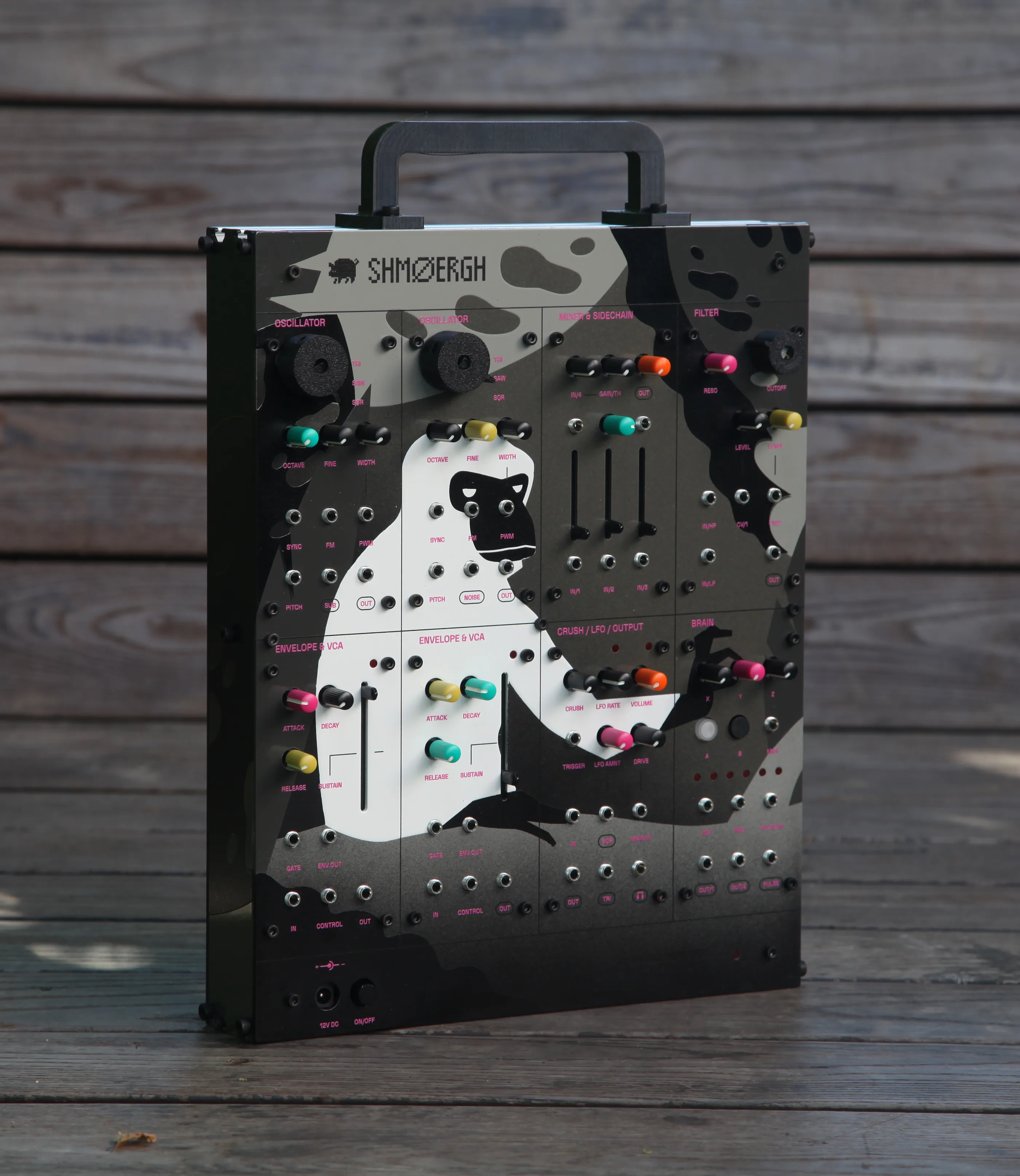

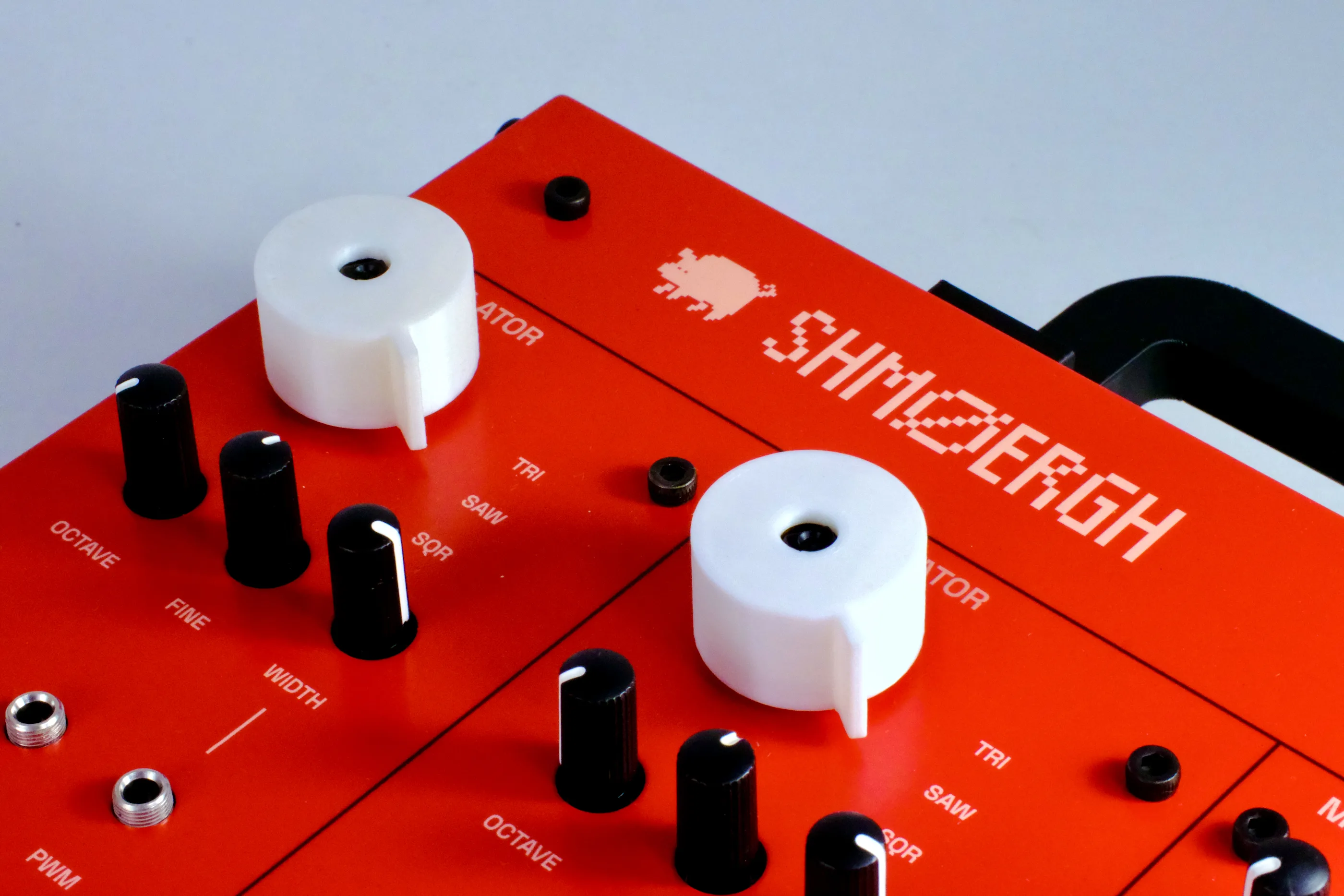

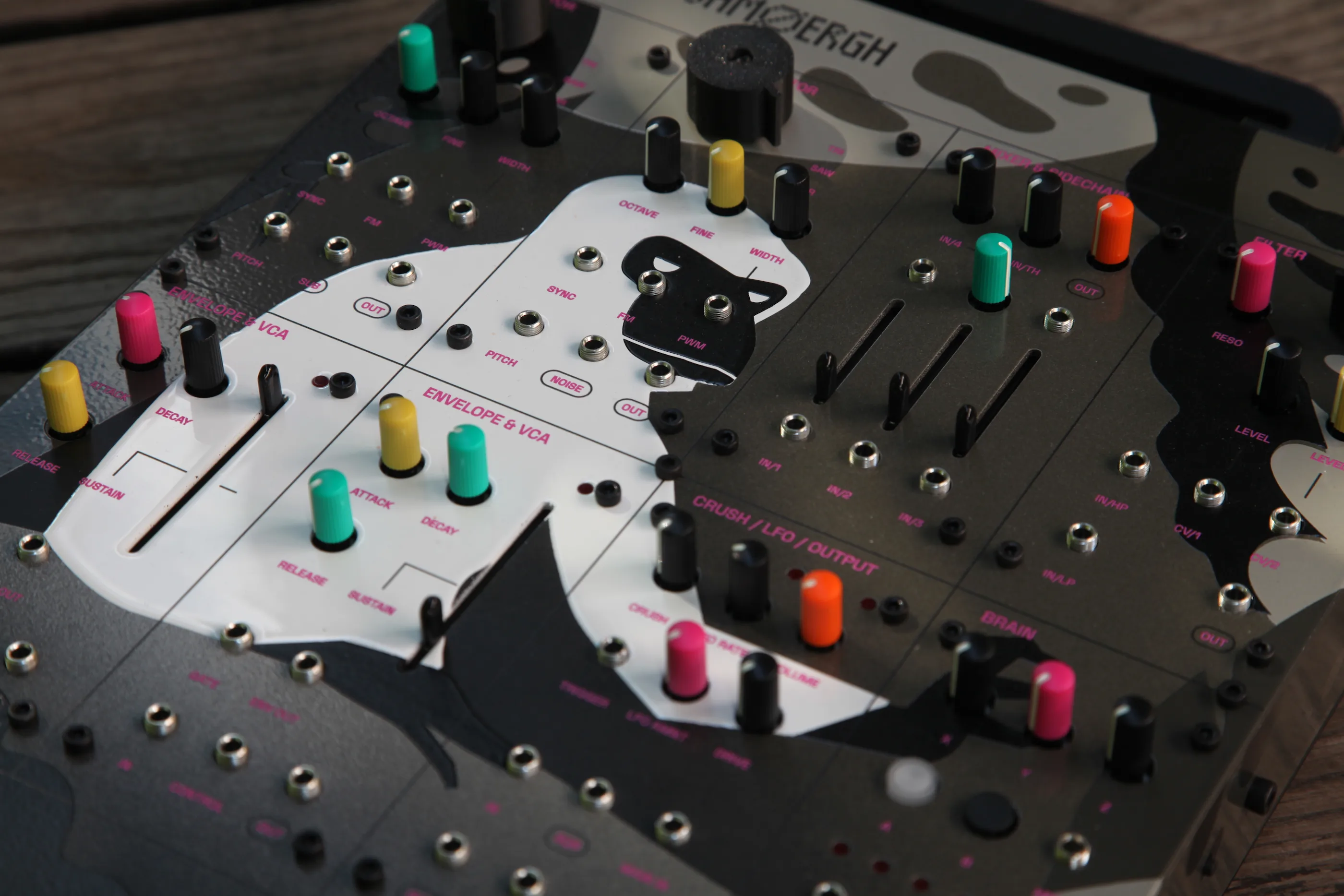

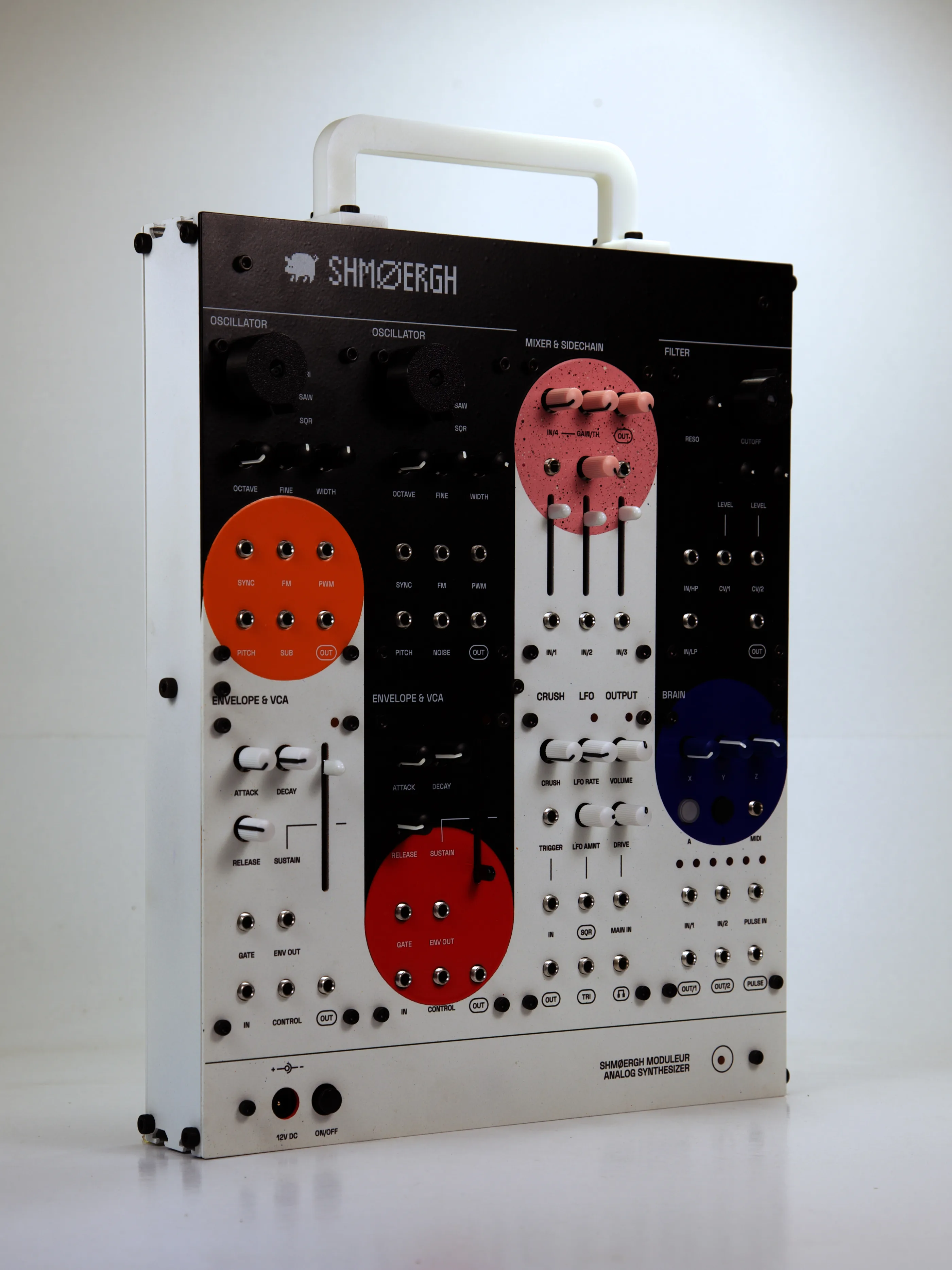

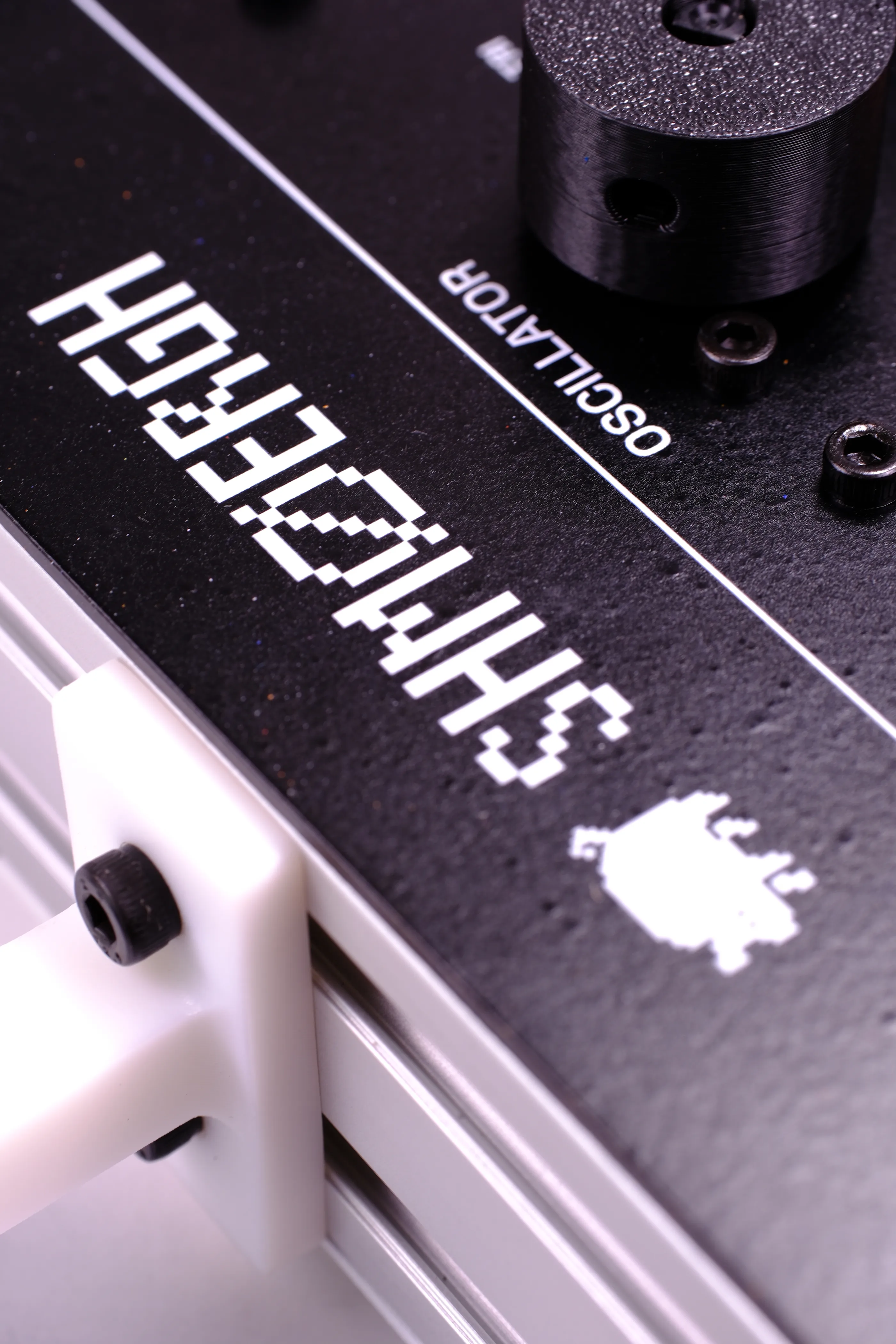

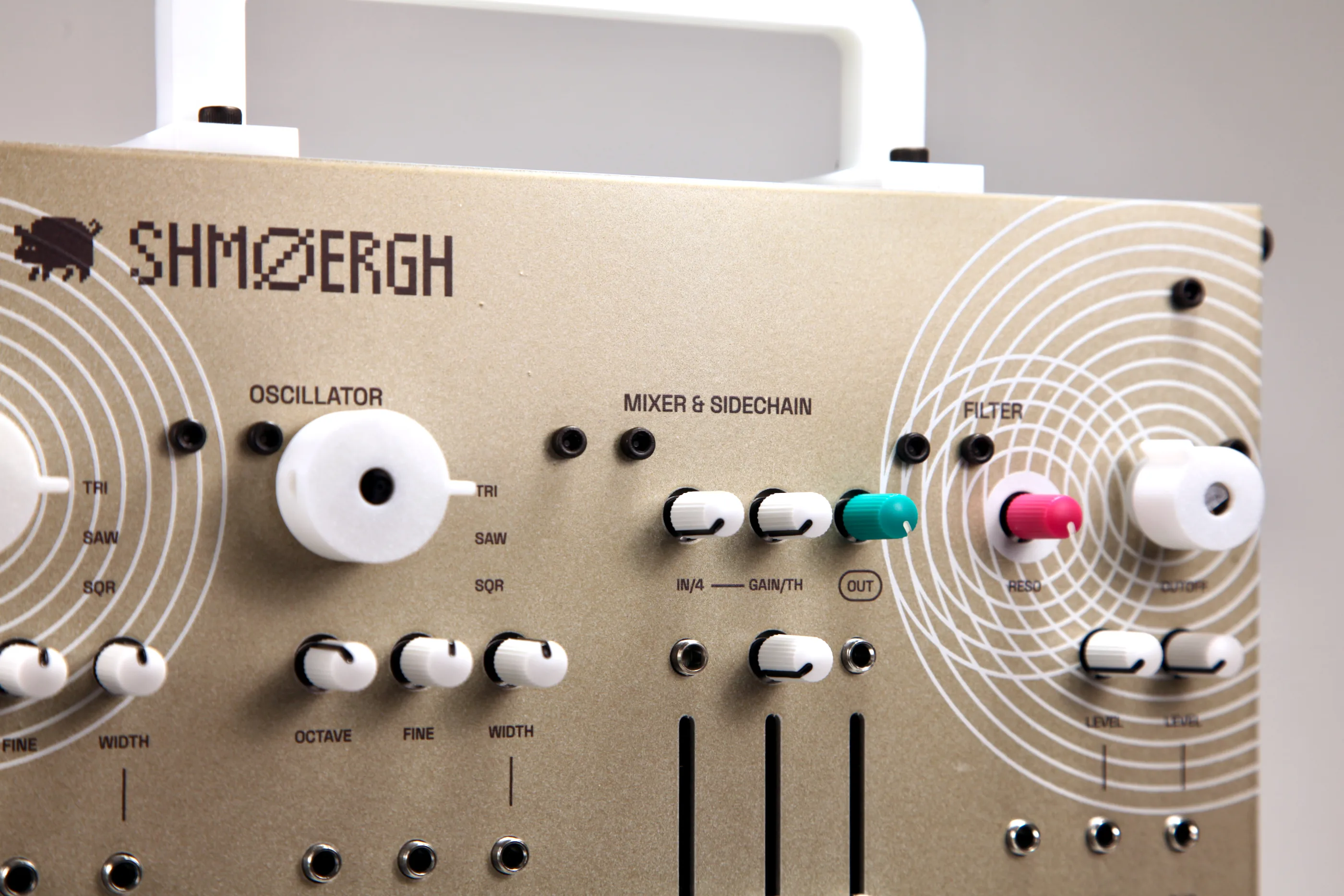

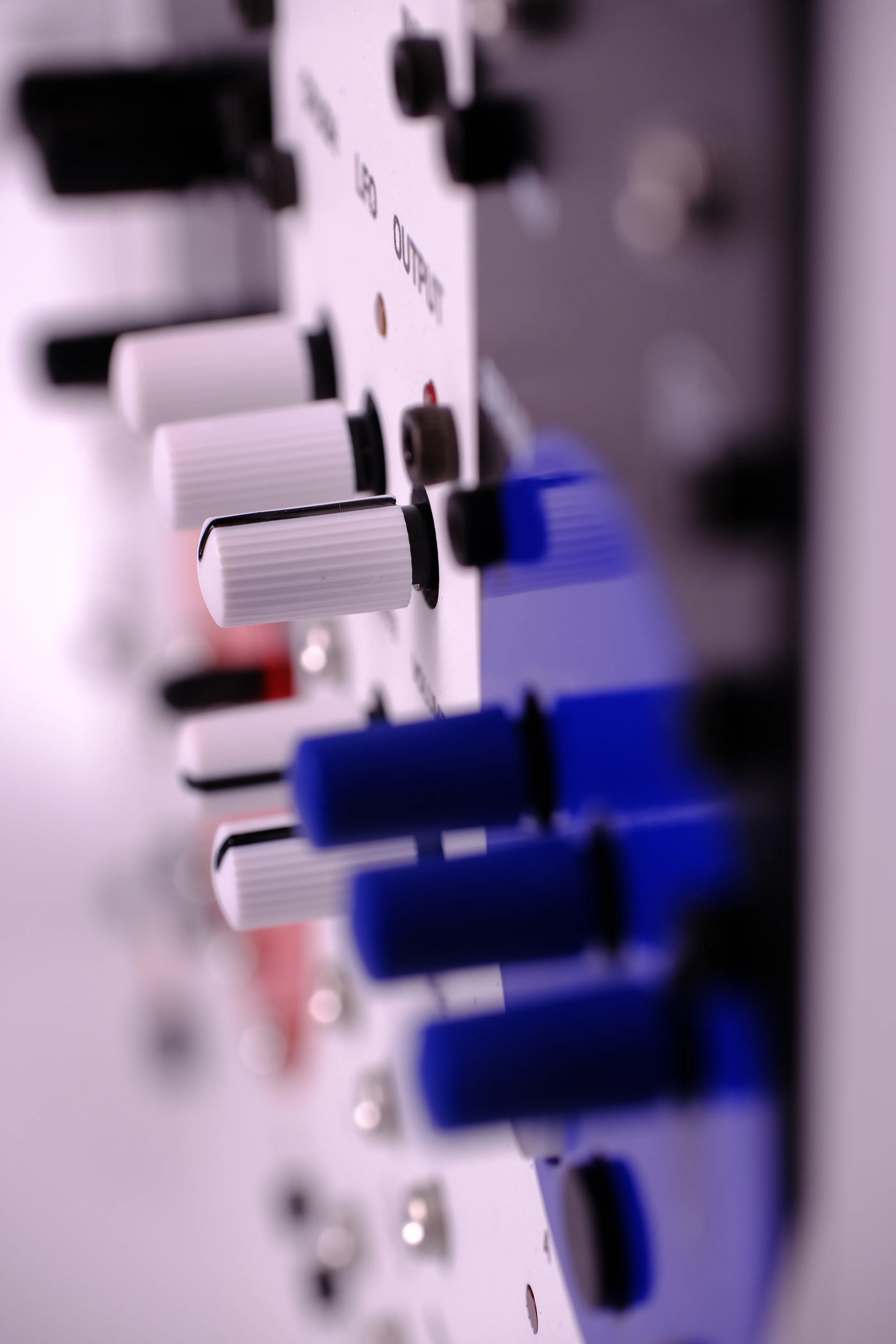

We don’t plan to mass-produce the Moduleur. The few units we build get a custom, one-off front plate made from different materials or coating. The result: no two owners will have the same synth. C’est exclusif.
Très flexible
Use the Moduleur as a prepatched synth. Or repatch it. Or connect it to Eurorack. Or rip the modules out and build your own synth. It’s flexible to a worrying degree.

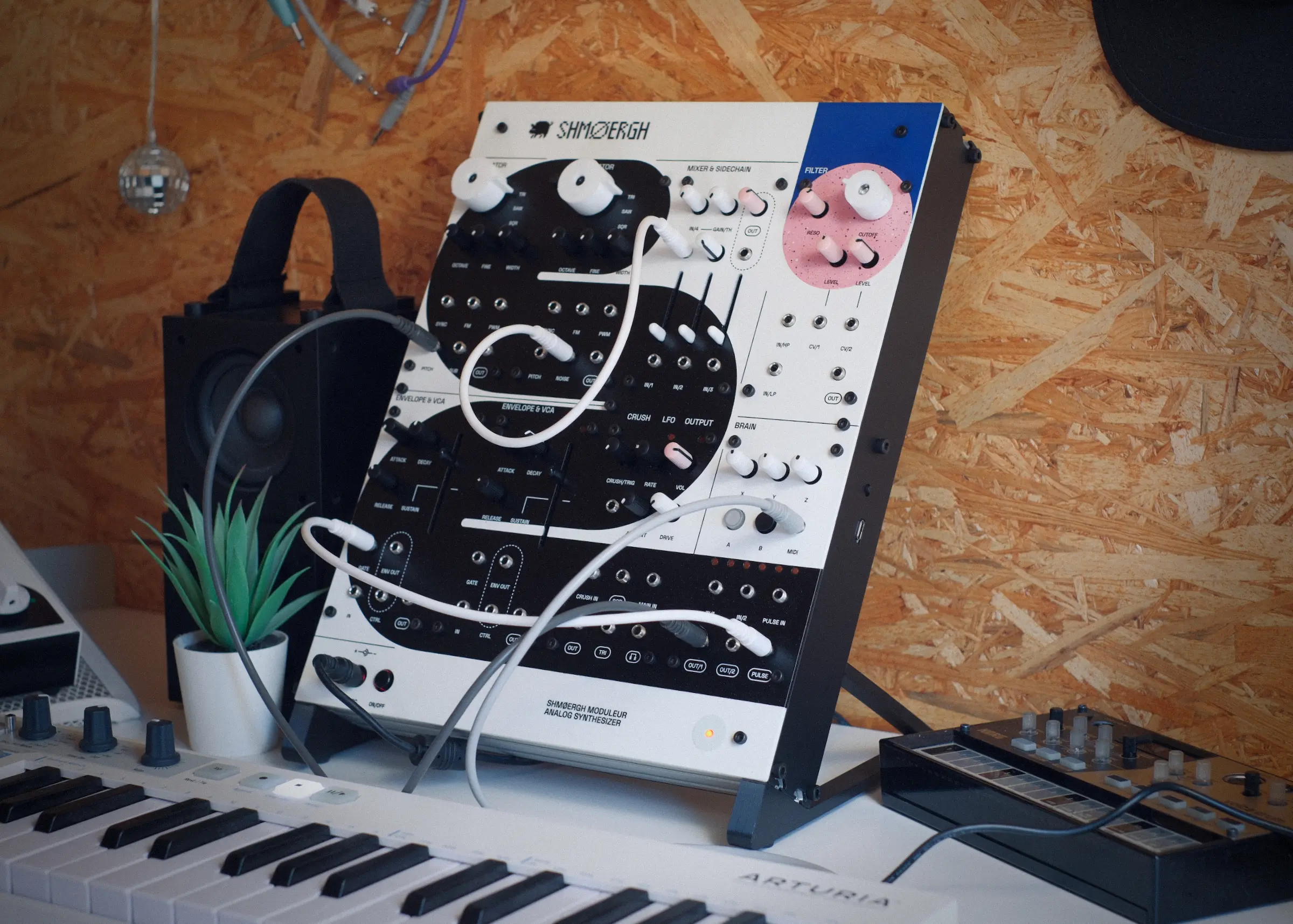

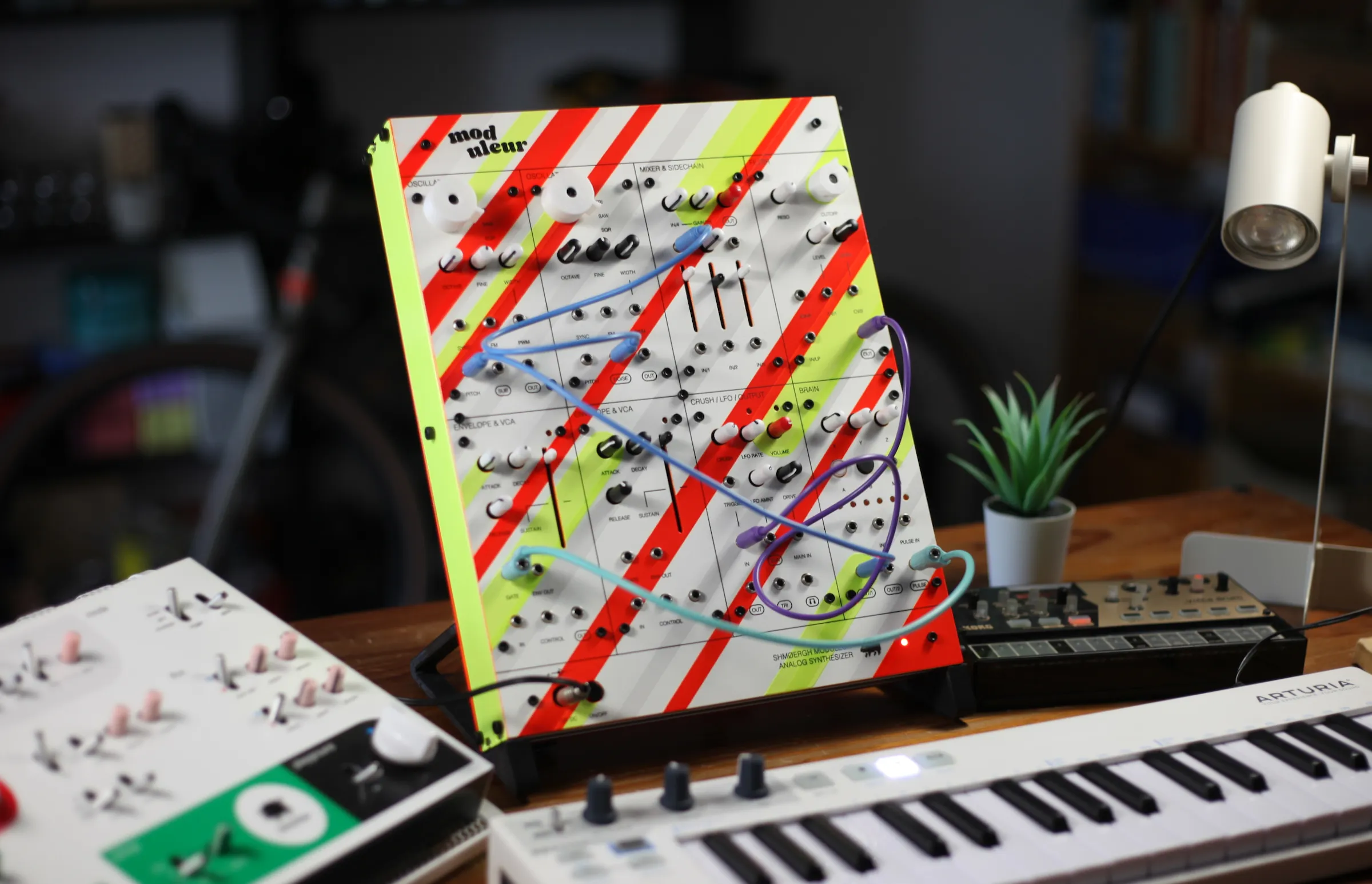

Just plug in and make music.
No need for a million patch cables. The Moduleur is a clean, prepatched subtractive analog synth. Connect your MIDI controller and get lost.

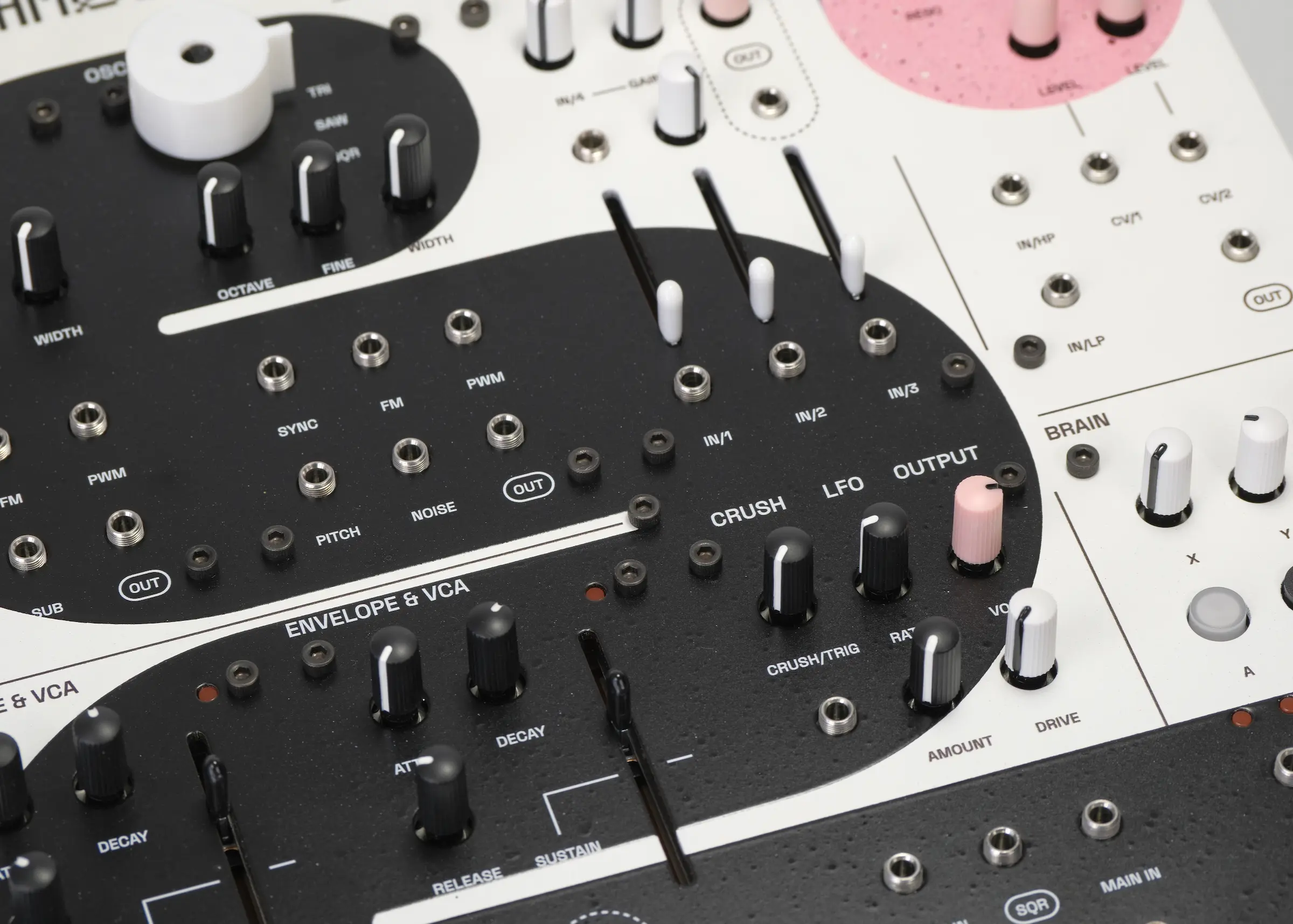

Repatch & discover
Every module can be rerouted, letting you shape the signal flow and explore new sounds. It’s a gentle introduction to the world of modular without the overwhelm.
Hack around
The Moduleur is hackable on many levels. Code your digital module, take out any module and add it to your Eurorack system, 3D print accessories or even build your own synth. Anything goes. All open source.

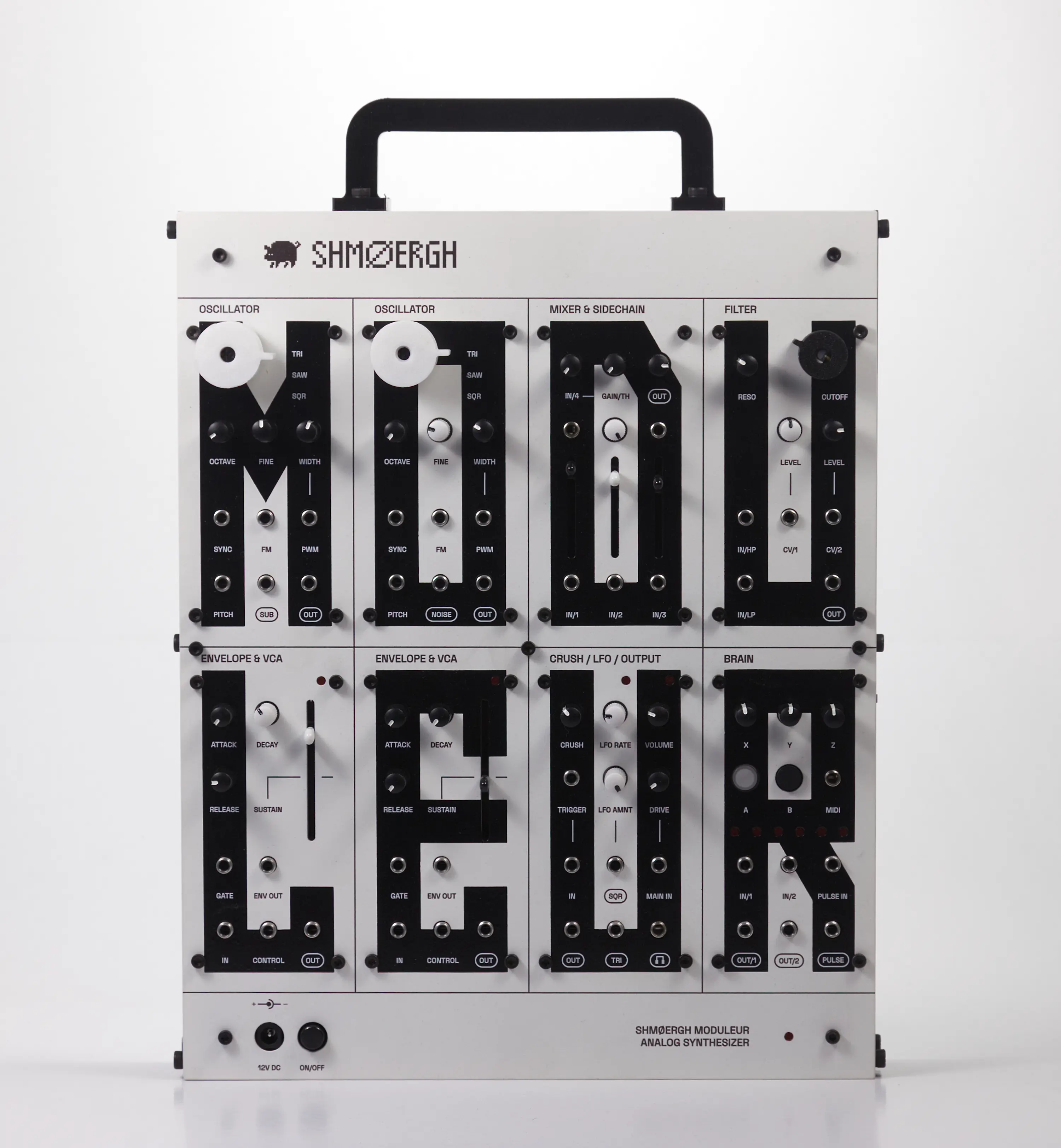

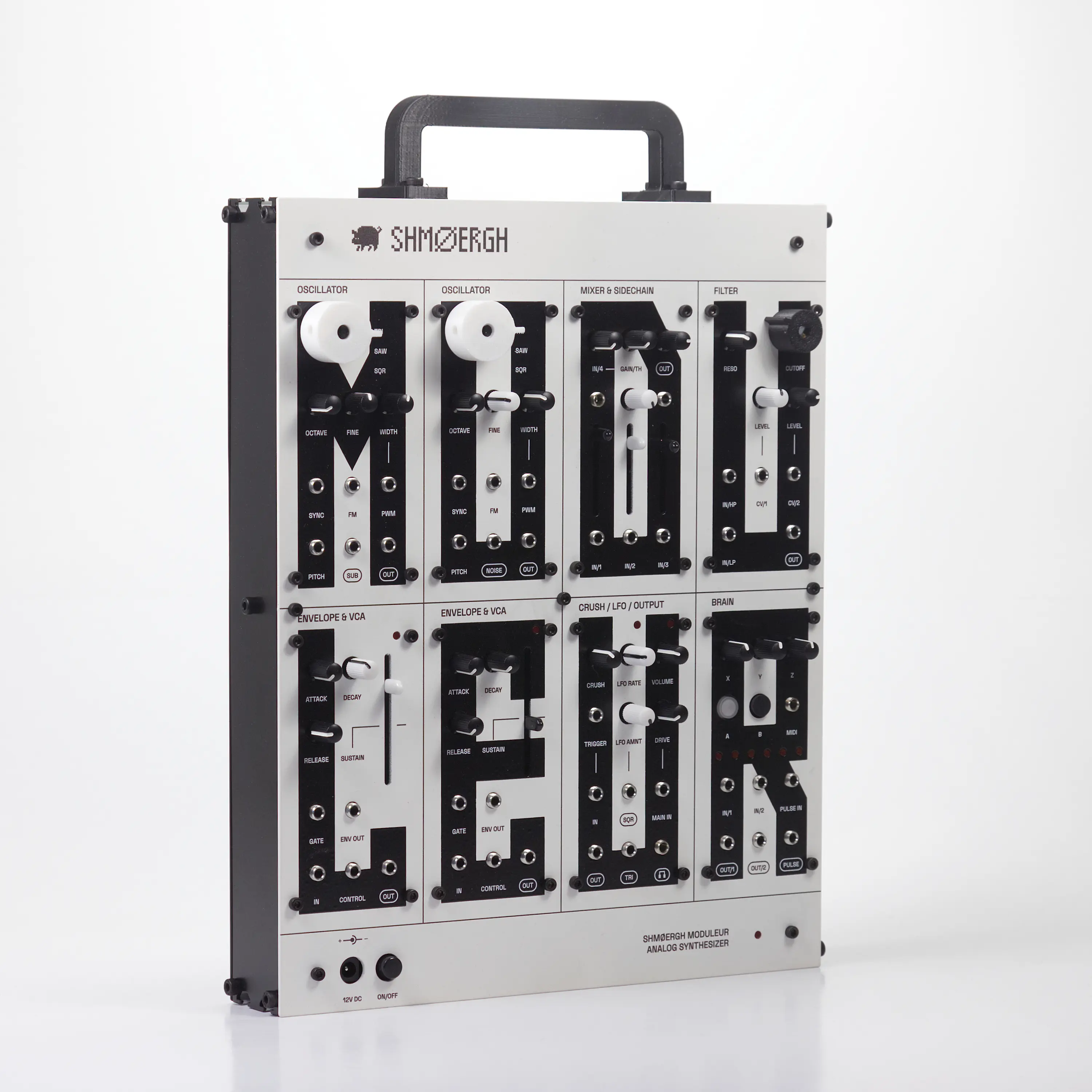

Un machine incroyable

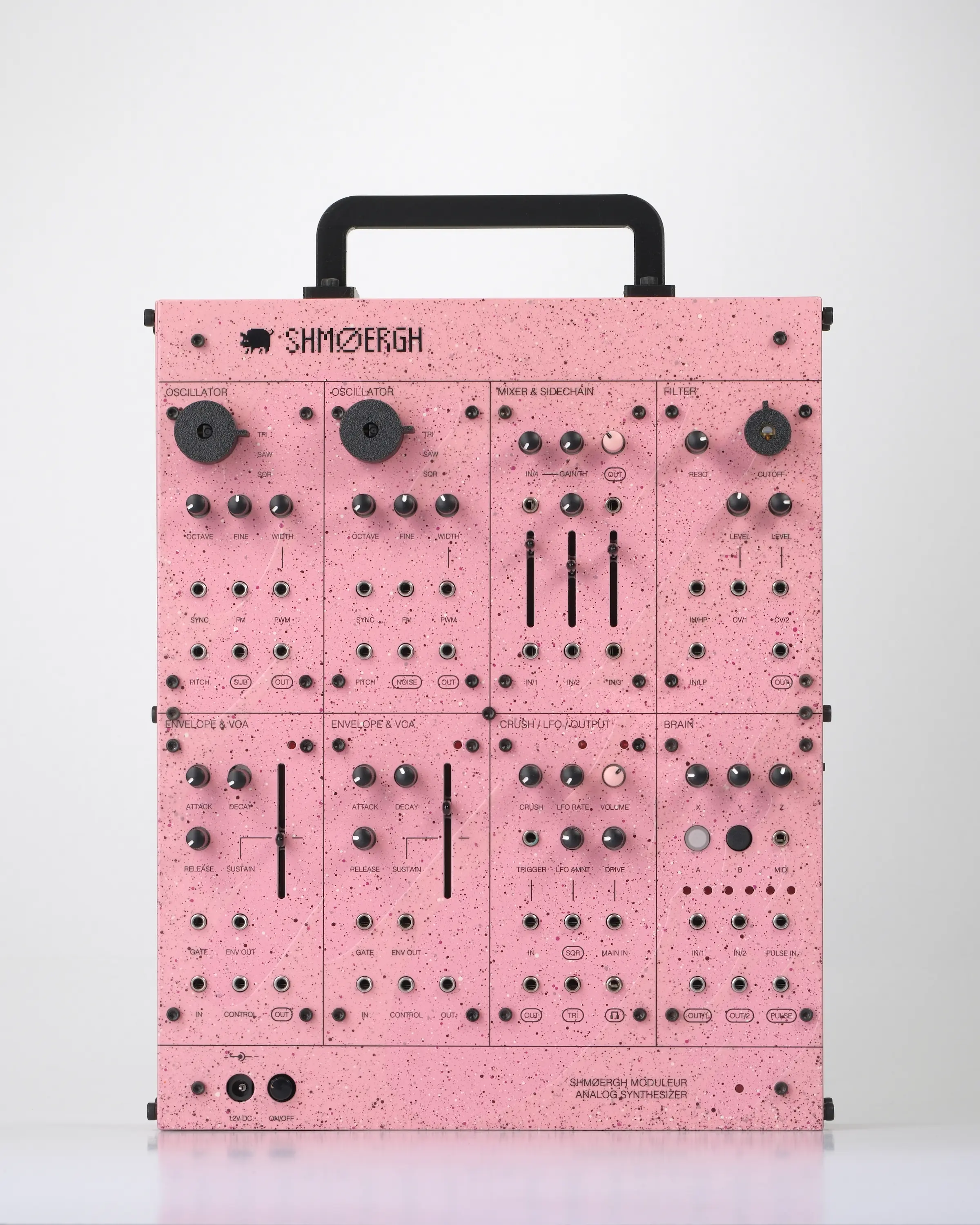

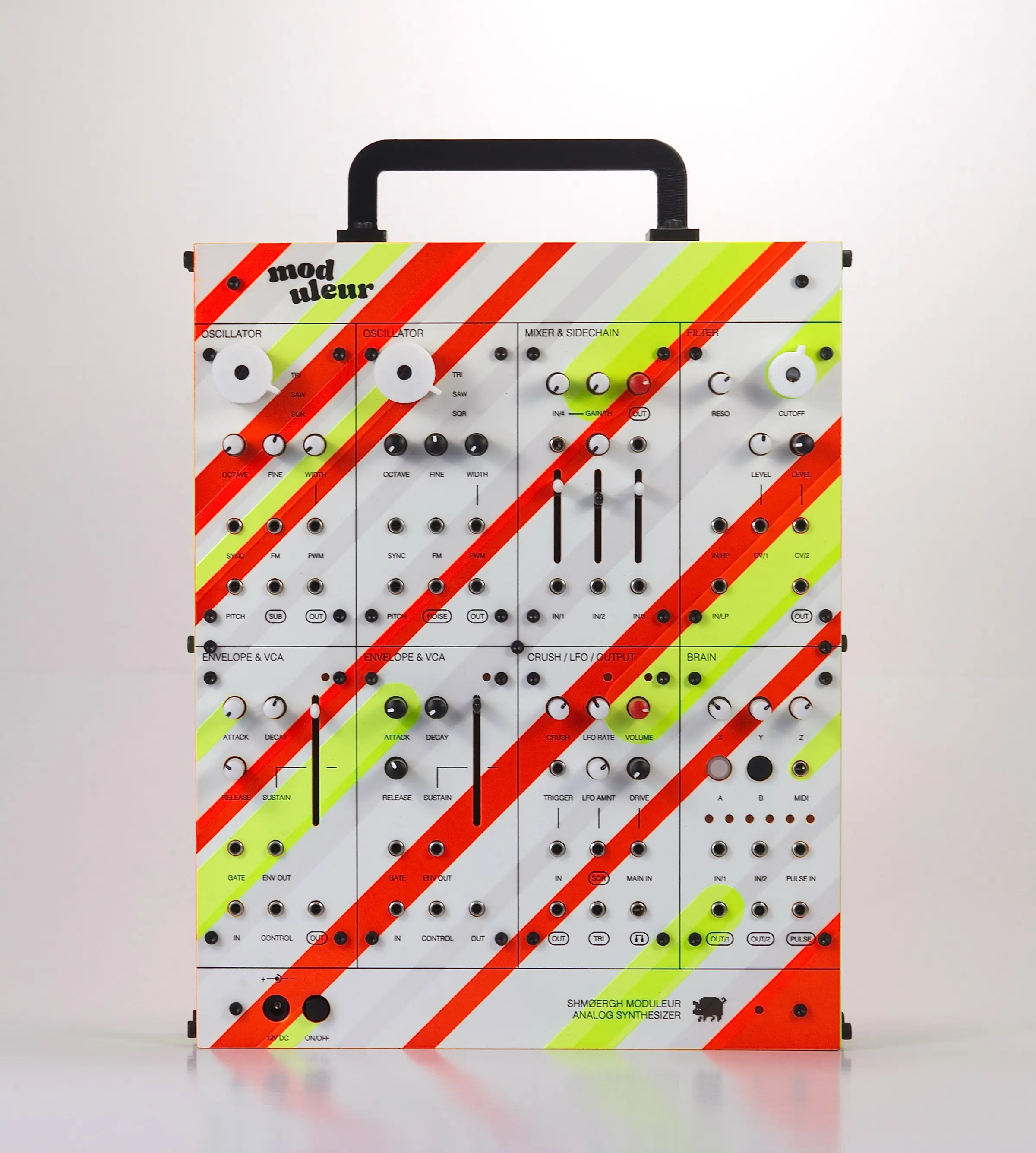

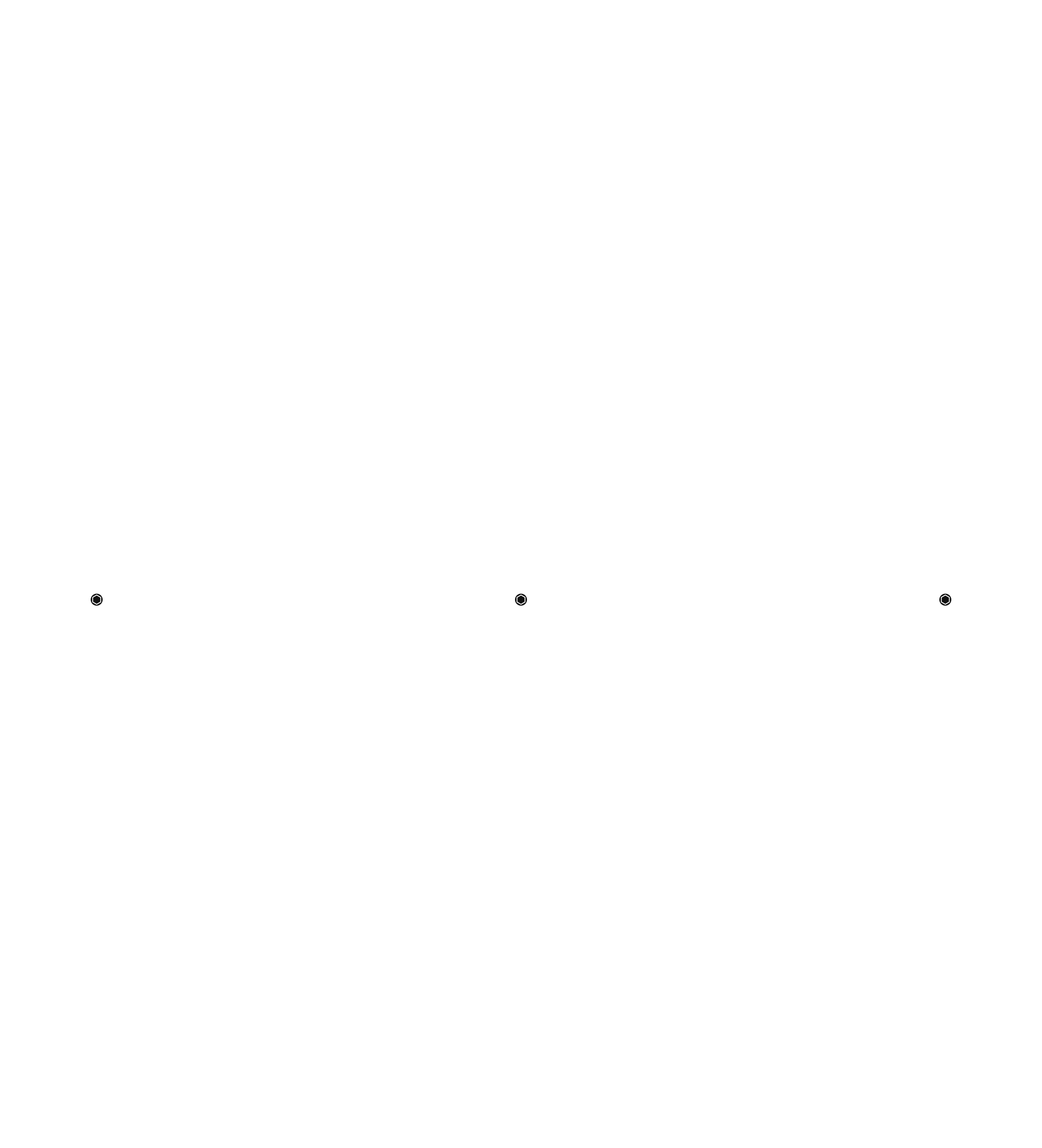

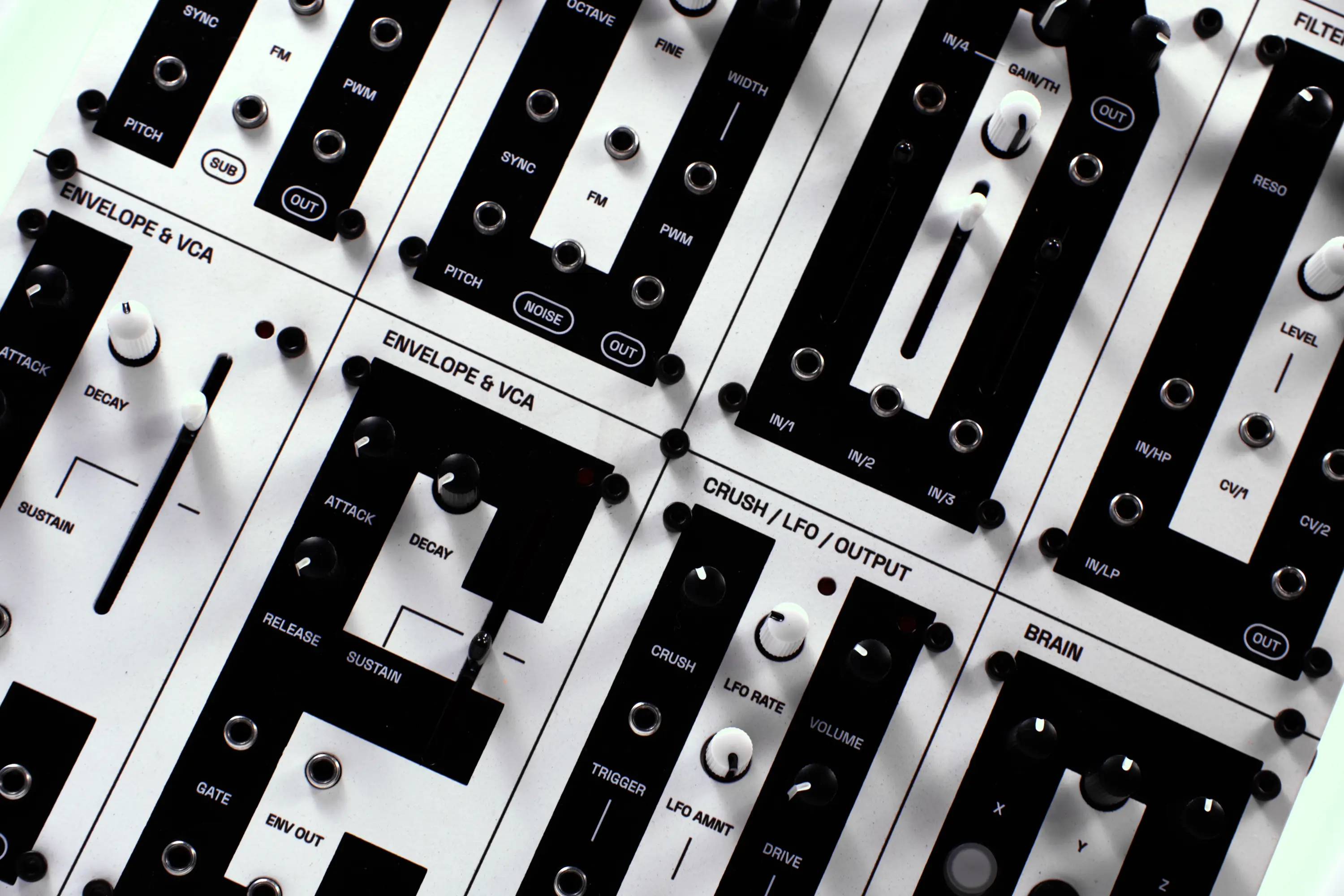

A complete modular system under the hood.

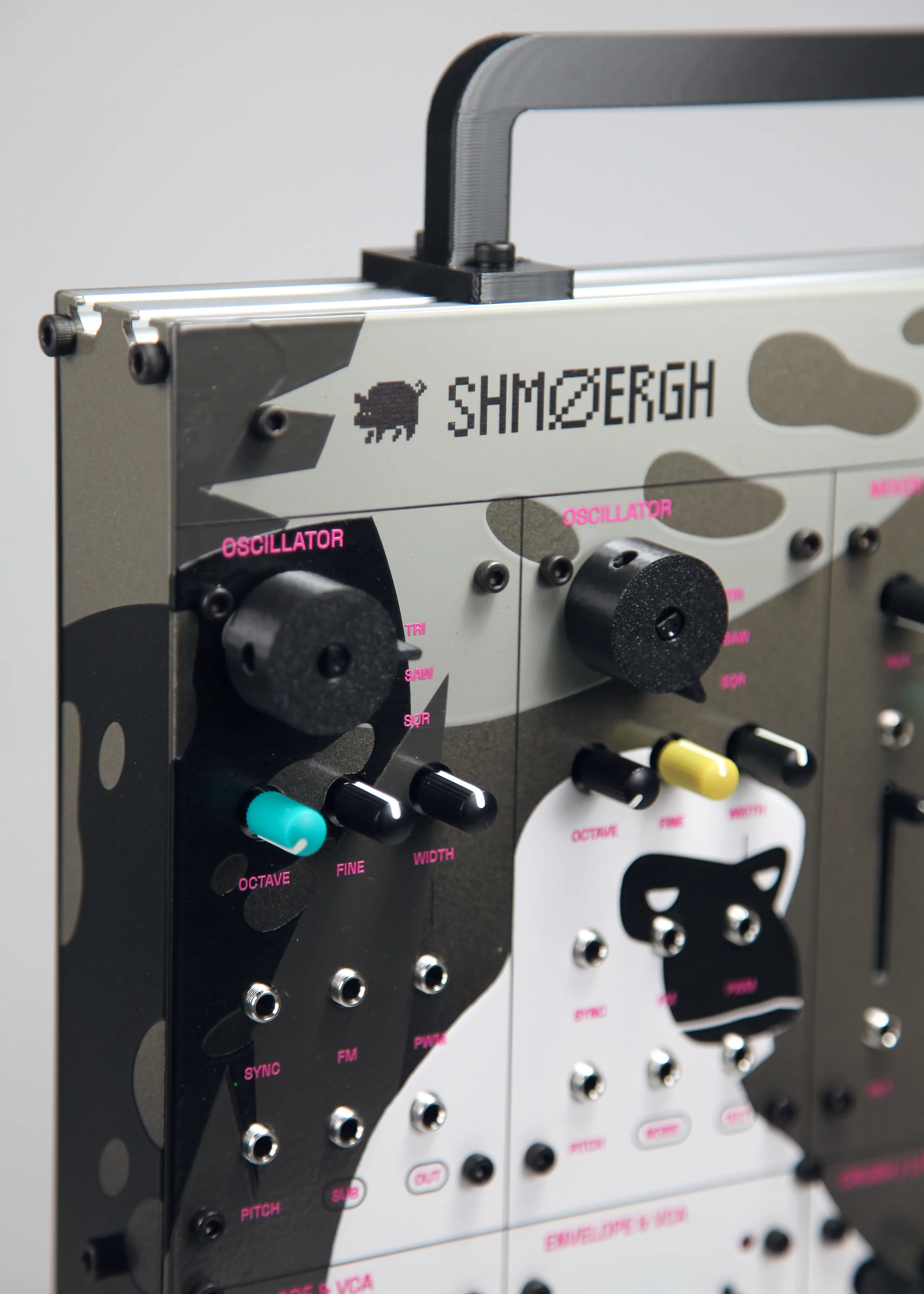

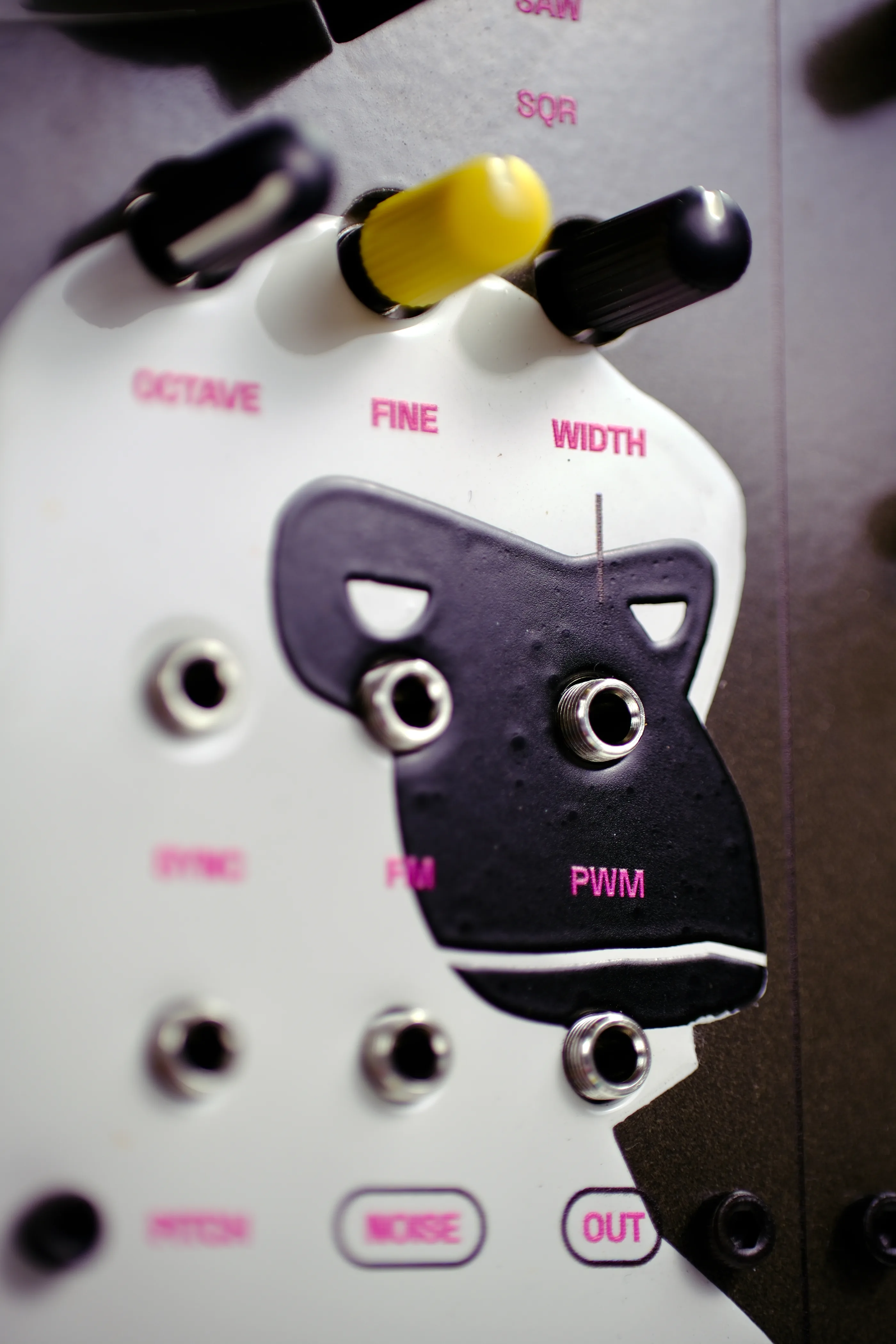

- Analog voltage controlled oscillator
- 8 octave precision
- Selectable triangle, sawtooth, square output
- Selectable triangle, sawtooth, square output
- Pulse width control
- Pulse width modulation
- Frequency modulation
- Hard sync input
- Selectable noise or sub output
- Default octave setting
- All I/O connection is available on the PCB for default patching
- Separate UI & core PCBs for reusability

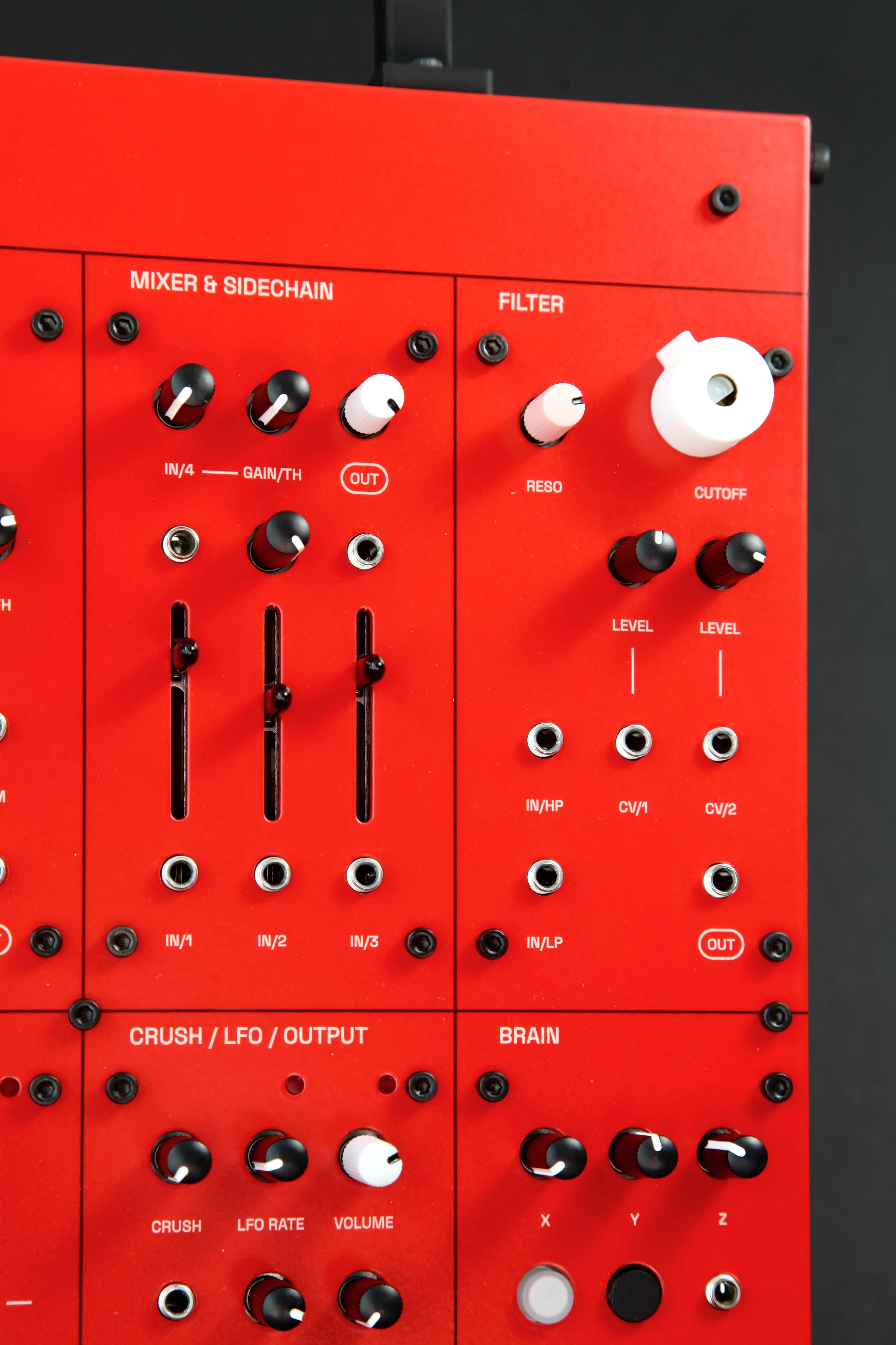

- 4 channel DC coupled mixer for CV or audio
- 4th channel works as an optional sidechain compressor
- Sidechain compression with gain and threshold control
- Main output volume
- Default attack and release times for compressor
- All I/O connection is available on the PCB for default patching
- Separate UI & core PCBs for reusability

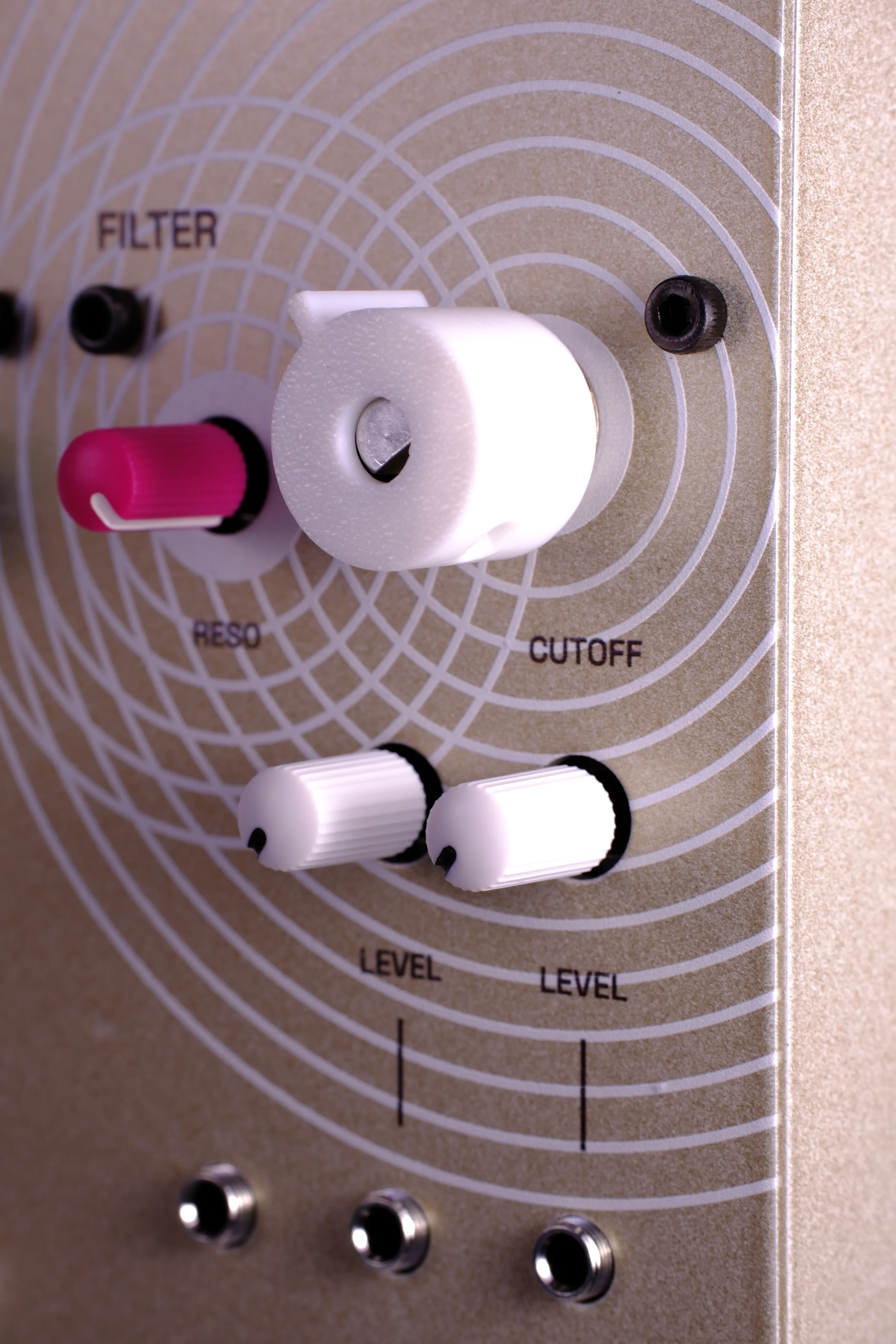

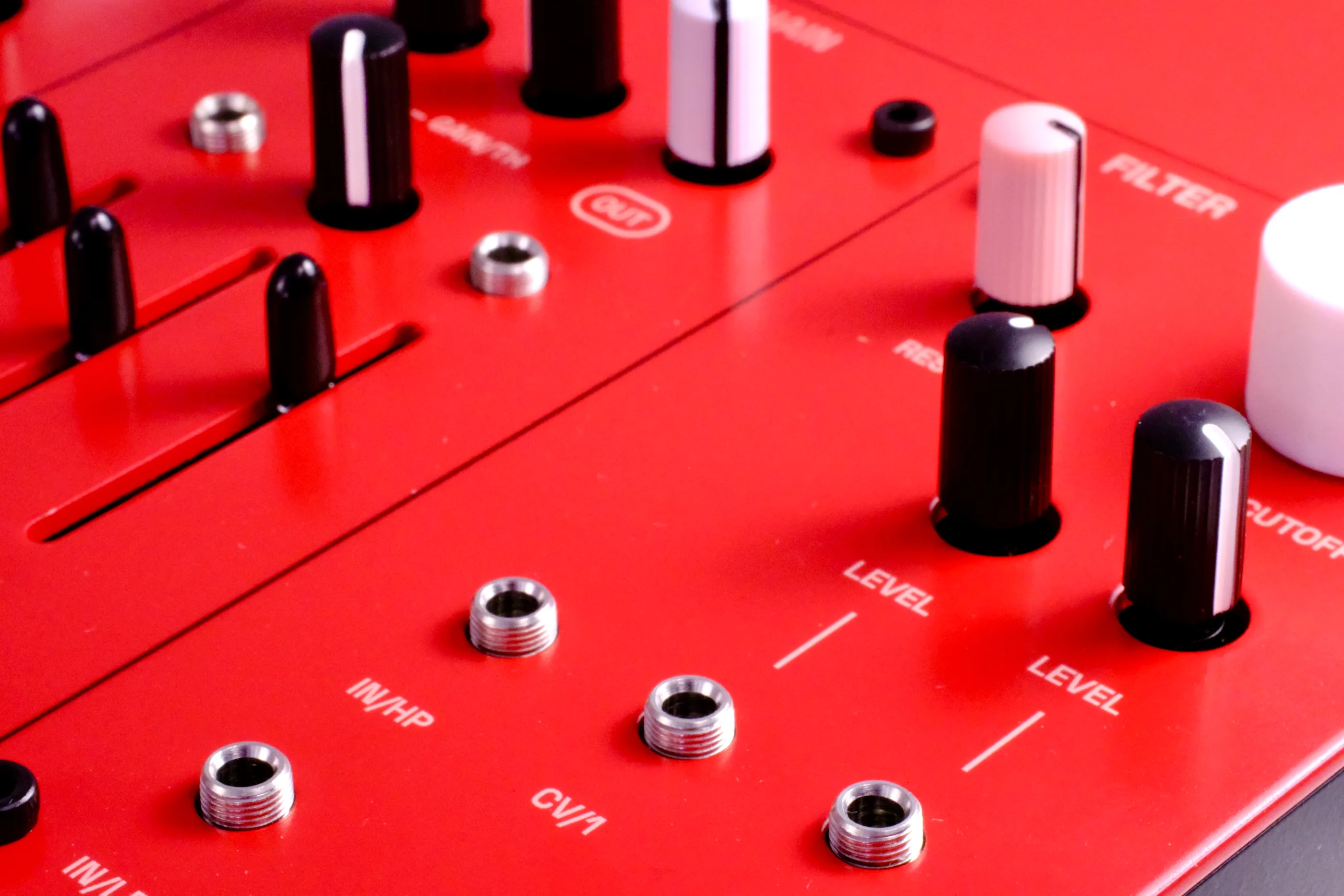

- A classique diode-ladder filter based on the OG Synthaconn Steiner-Parker circuit
- Cutoff and resonance
- High pass input
- Low pass input
- 2 cutoff CV inputs with attenuverters
- Maximum resonance tuning
- All I/O connection is available on the PCB for default patching
- Separate UI & core PCBs for reusability

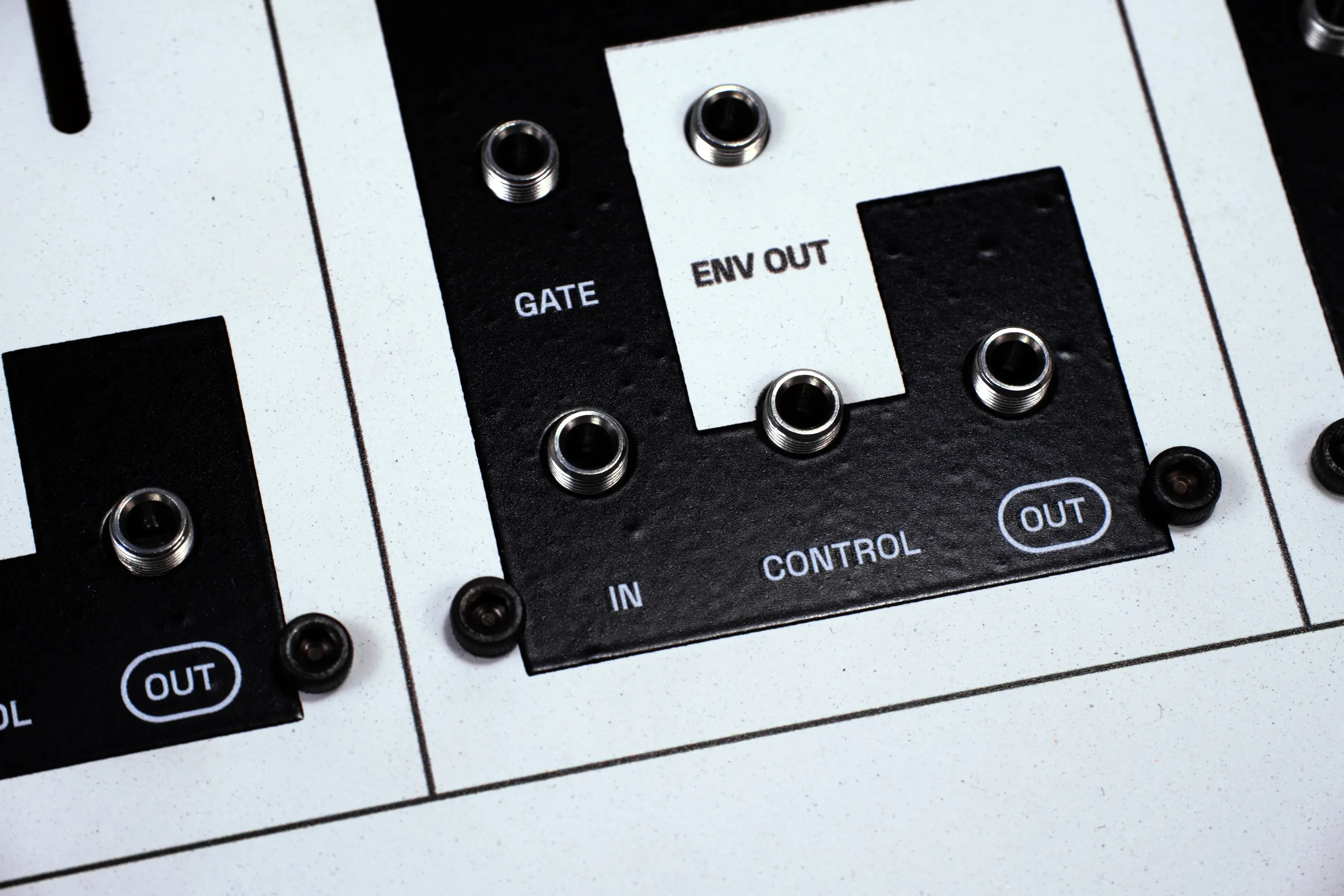

- ADSR and VCA in a single module
- Envelope times go from 50usec to 15sec
- VCA CV is normalized to envelope output
- LED indicator
- VCA normalization can be removed
- Default VCA gain tuning
- All I/O connection is available on the PCB for default patching
- Separate UI & core PCBs for reusability

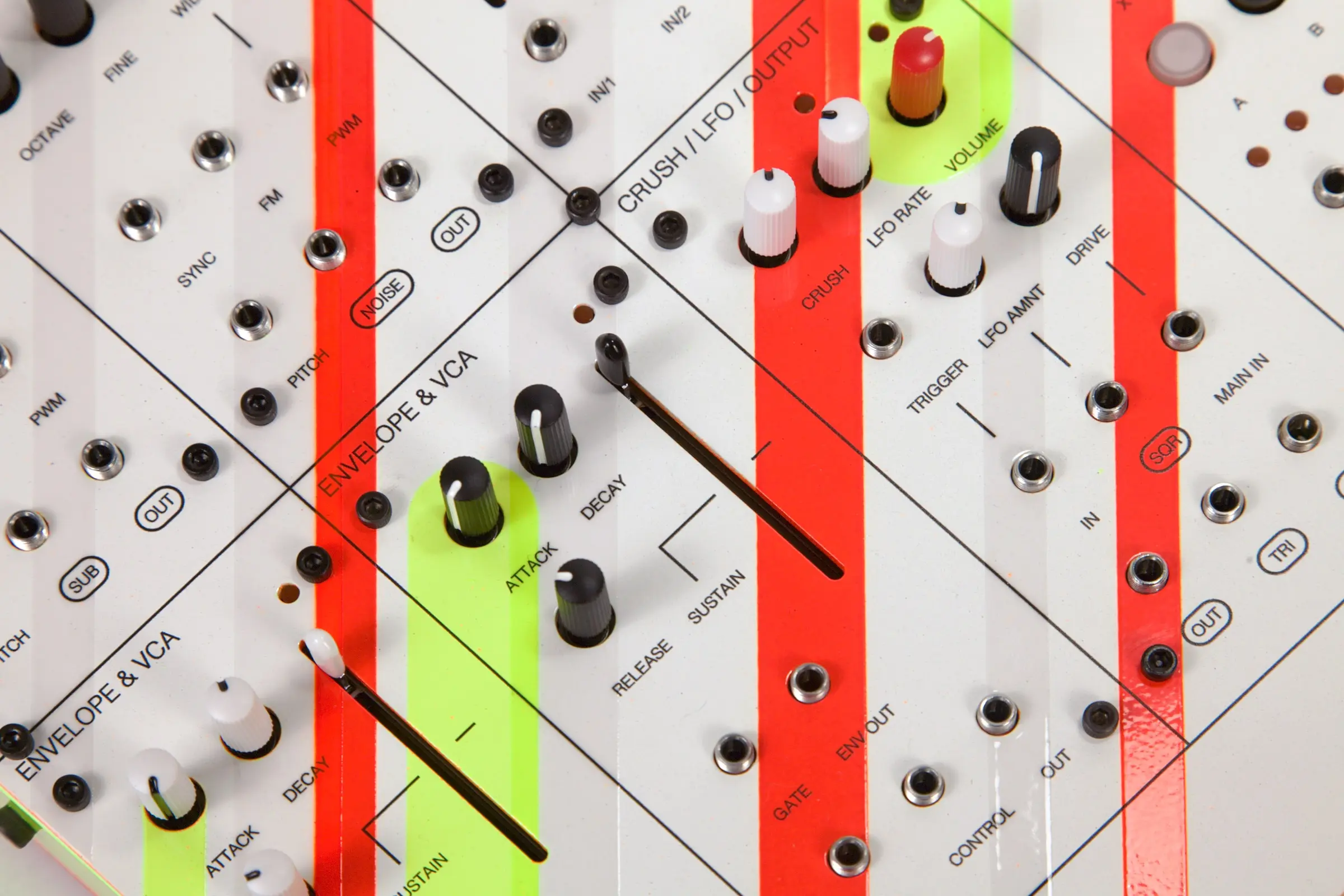

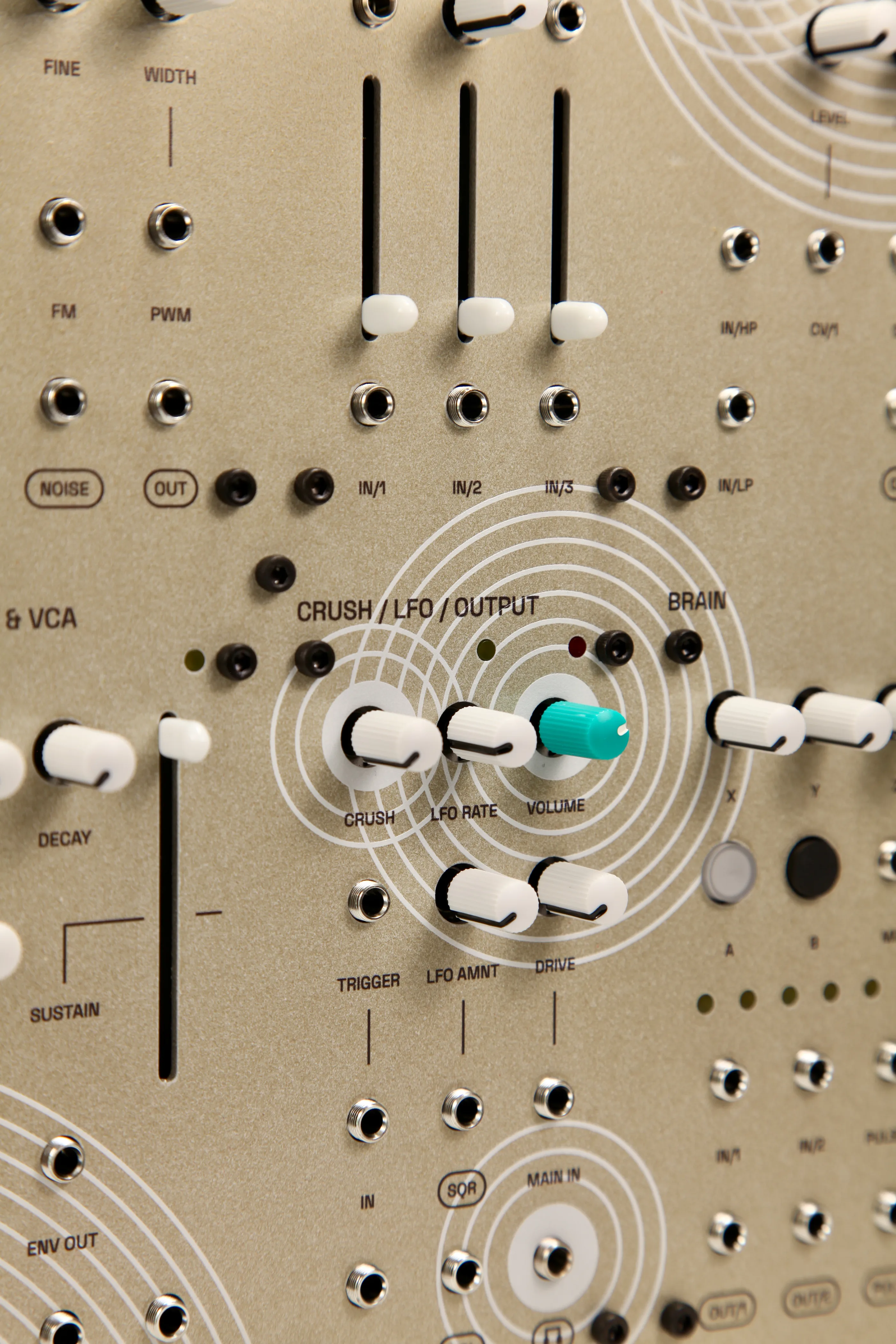

- Analog bitcrusher
- External trigger for bitcrusher for sample & hold usage
- Square and triangle LFO
- LFO timing from 10sec to 100Hz audio range
- LED LFO speed indicator
- Dual mono, line-level output converter
- Diode/LED based overdrive
- Headphones amp
- Minimum LFO timing tuner
- Line level tuning
- Selectable line-out or headphones out
- All I/O connection is available on the PCB for default patching
- Separate UI & core PCBs for reusability

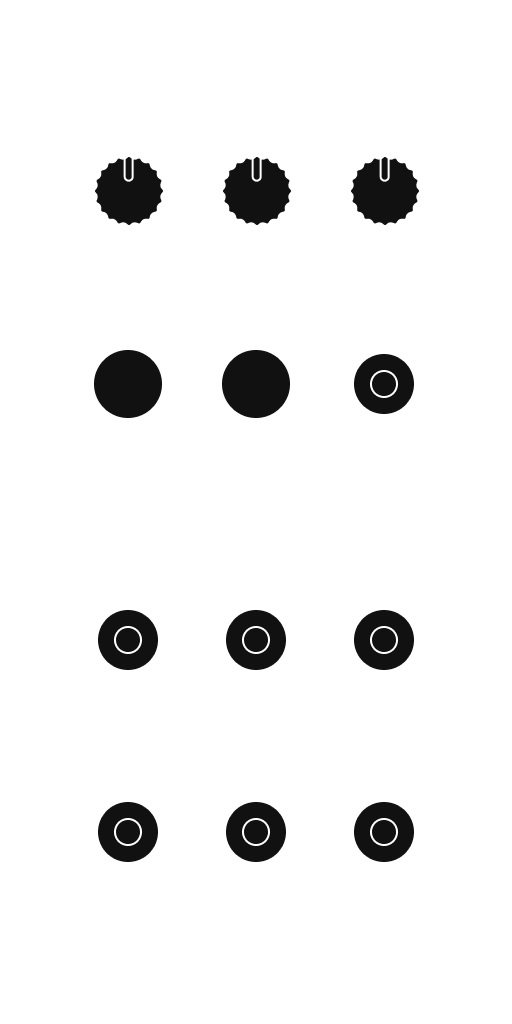

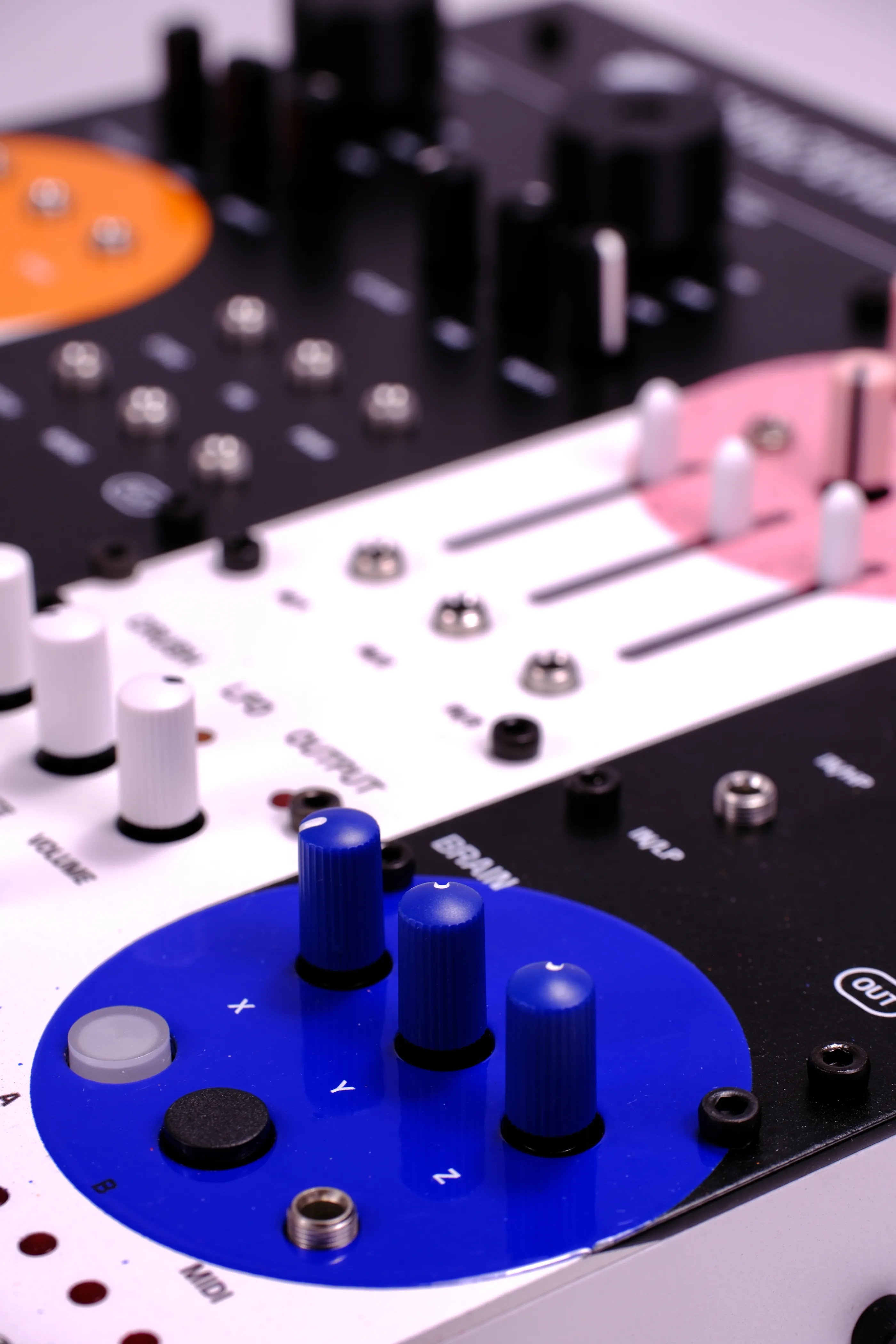

- Universal digital module based on Raspberry Pi Pico or Pico 2
- Two buttons with optional LEDs
- Three potmeters
- Dedicated MIDI input
- Six dimmable LED indicators
- Two audio or CV inputs
- Two audio or CV outputs
- One pulse input
- One pulse output
- USB-C connector
- Uses an actual Rpi Pico board under the hood
- Anything you can code in C++ or Micropython
- Brain SDK for all UI components in C++
- Software based AC/DC coupling on audio/CV output
- Separate UI & core PCBs for reusability
- Works with 12V DC adapters (center positive)
- On/off button
- 420mA switching power supply
- Eurorack compatible headers
- ON LED indicator
- Reverse polarity protection
- Use in any Eurorack case
- Compatible with 5 different Mean Well DC/DC converters for larger currents
- A removable PCB that creates a default connection between the modules, under the hood
- All connection can be broken via PCB plate jumpers
- Compatible only with the original Moduleur enclosure

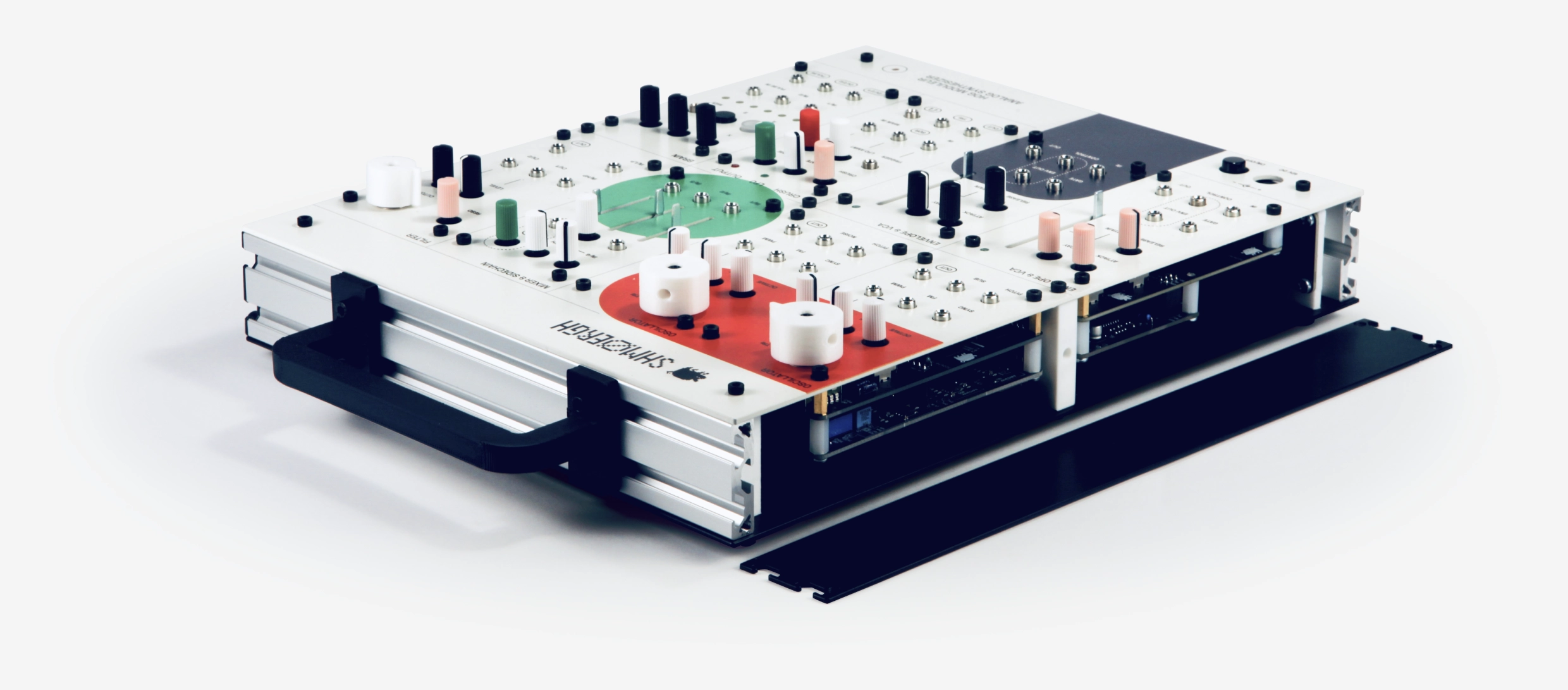

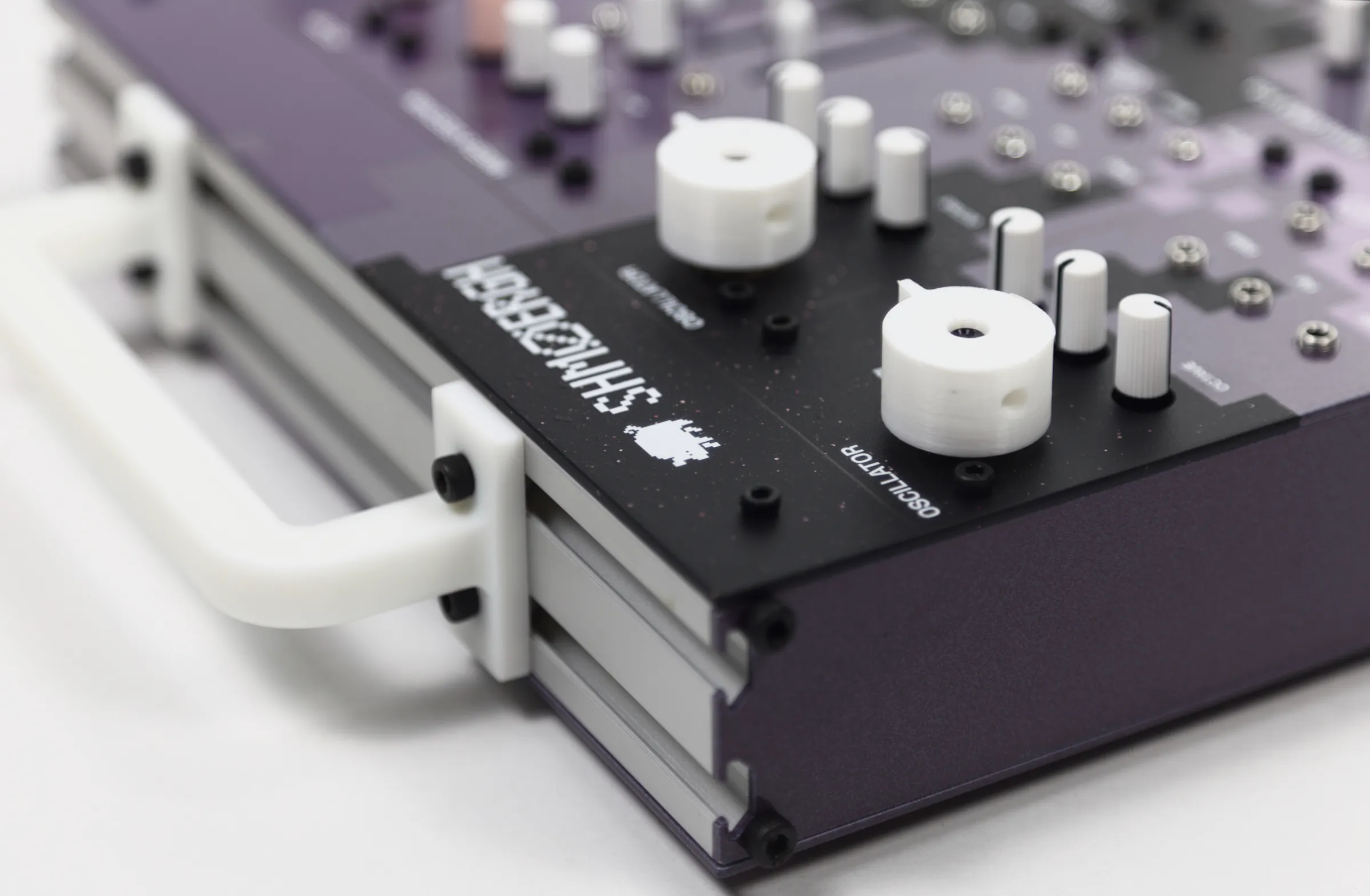

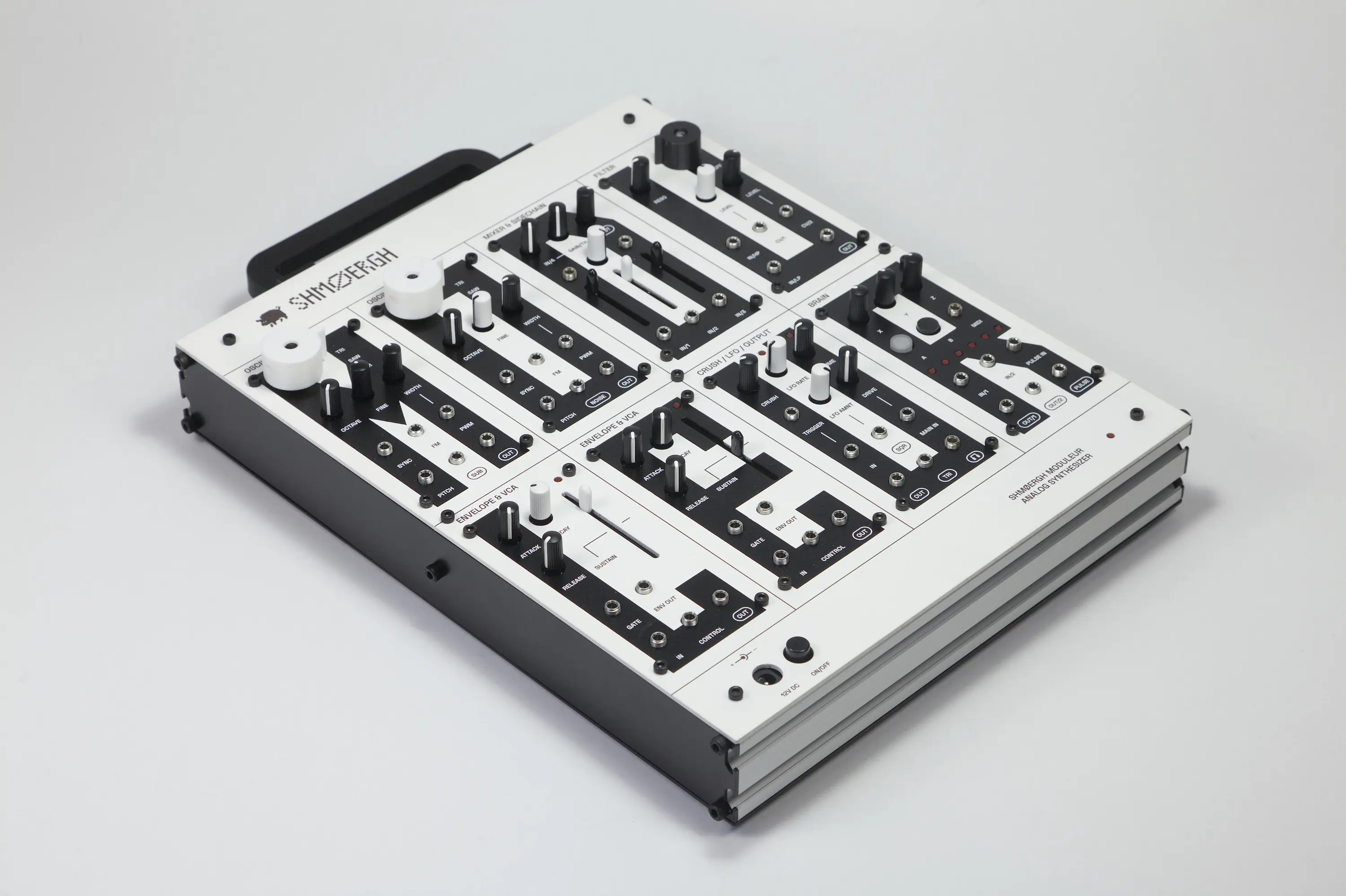

We Added Rails. Now You Can Add Anything.

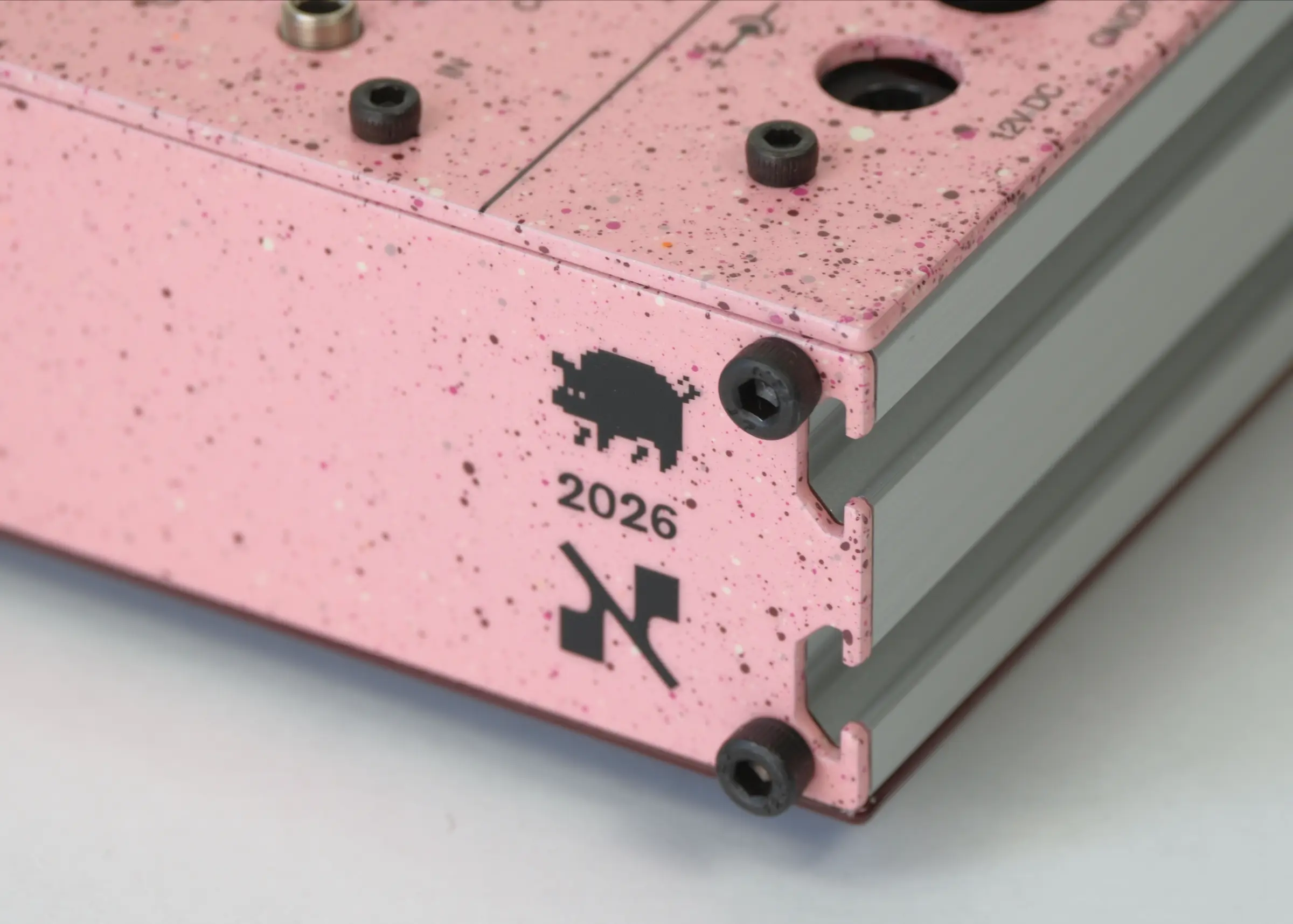

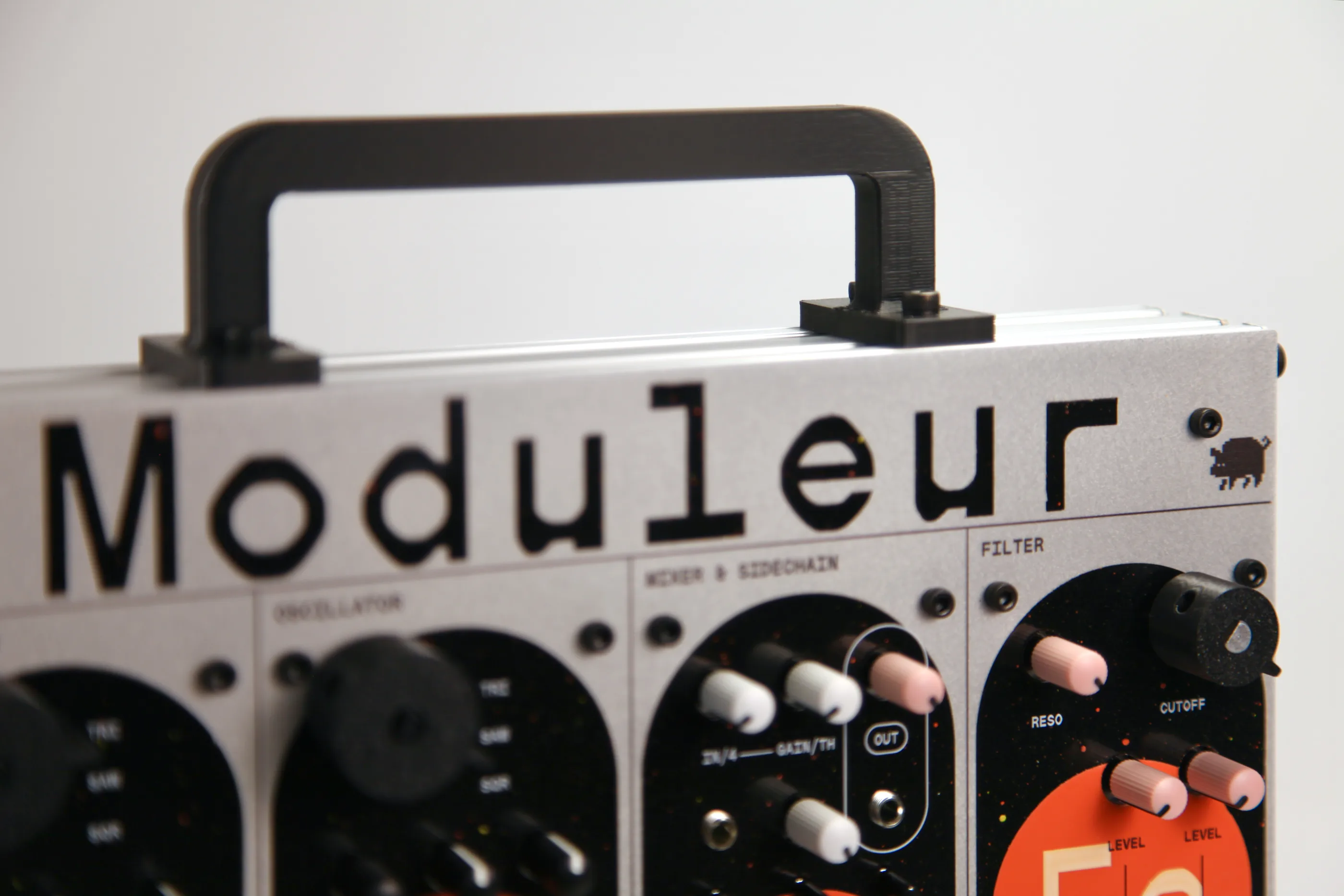

The enclosure is built around two BOSCH® rails. You can mount handles, passive modules, weird stands, or hardware that doesn’t even exist yet. Go nuts.

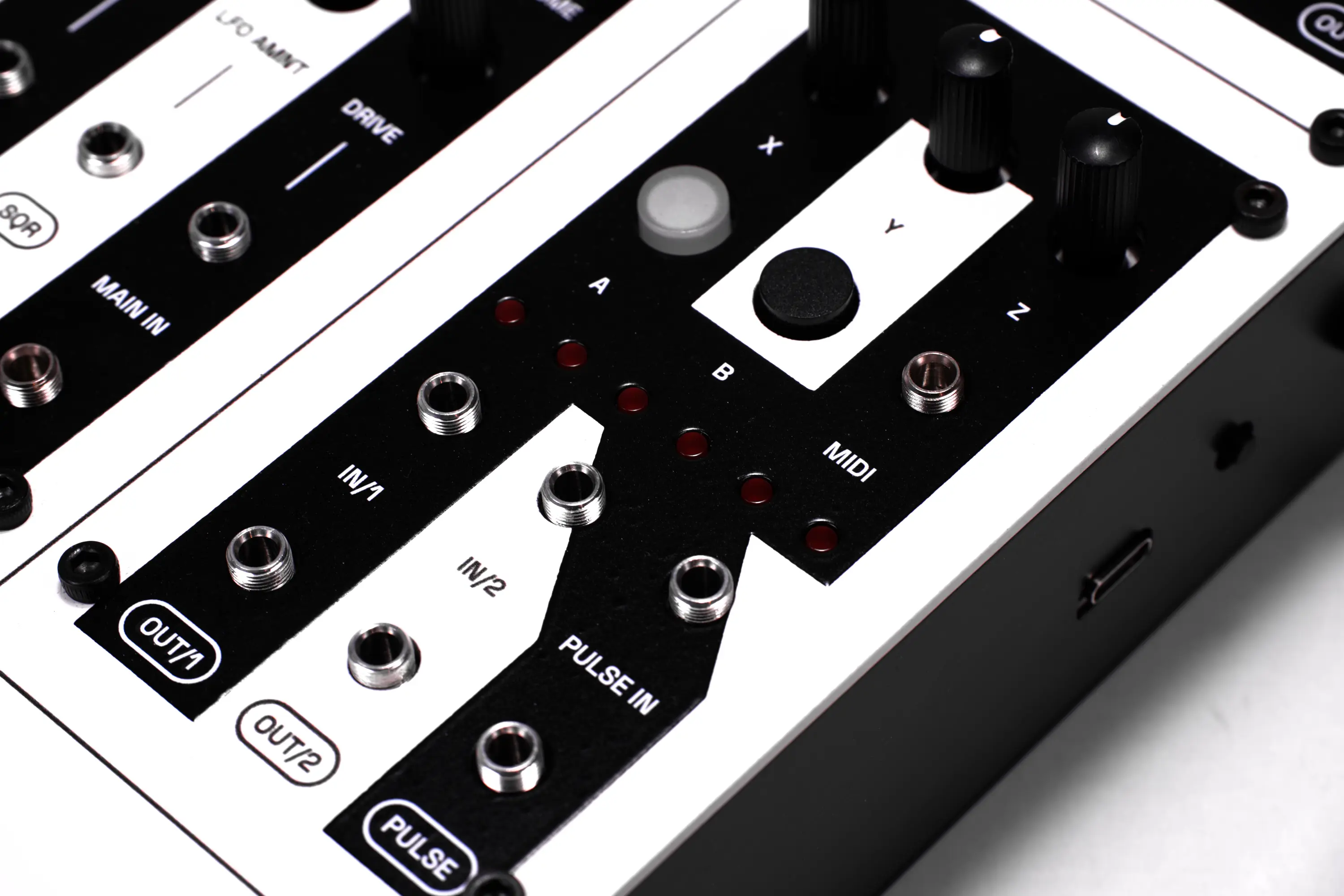

One Digital Module, Tons of Possibilities
The built-in Pico module works as a MIDI-to-CV interface by default, but it’s fully programmable. Turn it into a sequencer, an effect, a utility, or your own custom digital module.

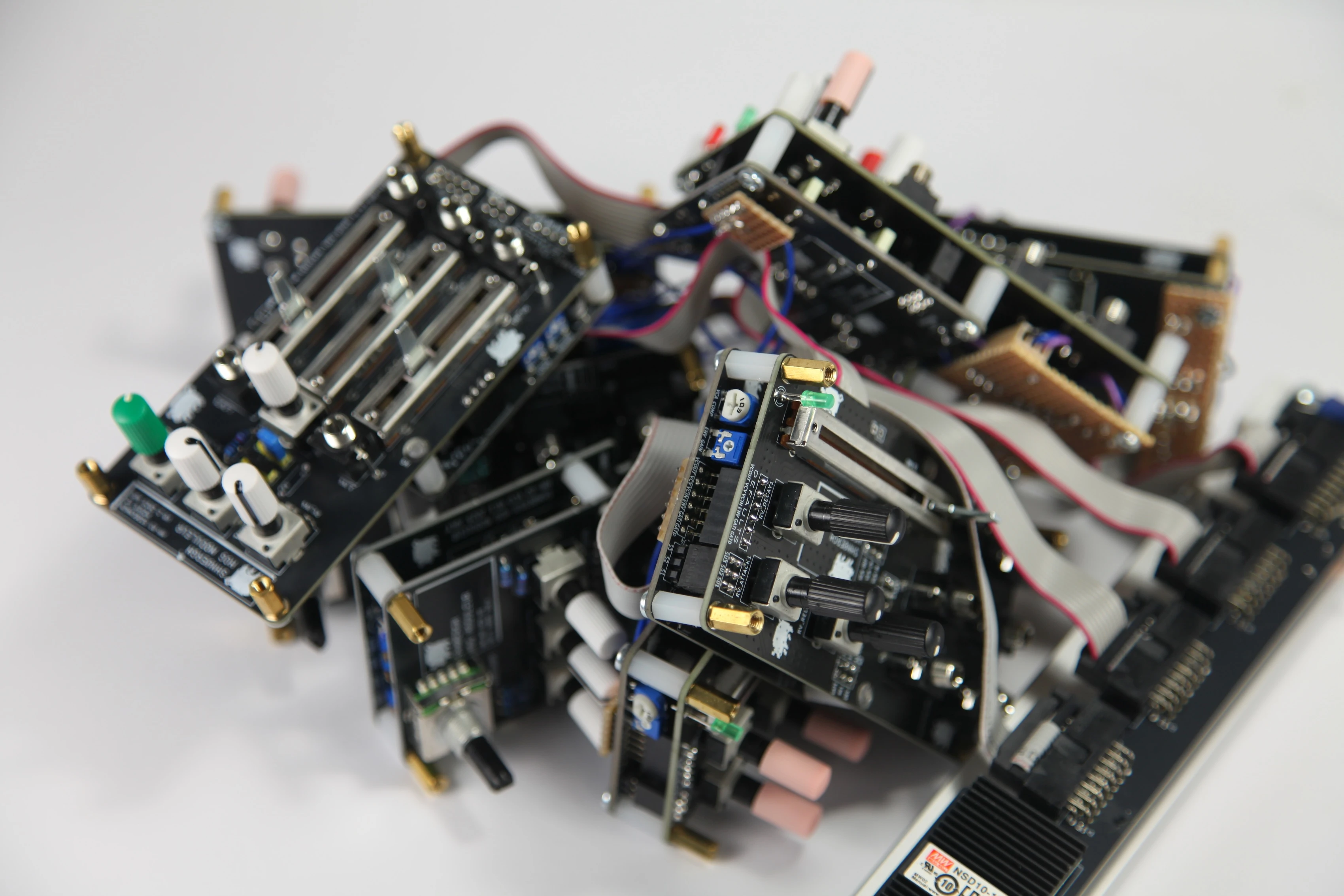

Your Gateway to Eurorack
If you want, you can move each module into any Eurorack system: they run on Eurorack voltages, use Eurorack power connectors, and each one is a 12HP module. Expansion is built in from day one.
A living instrument
The Moduleur is not a snapshot. We’ll keep refining it over time: updating parts, adding features, and expanding what the instrument can become.
Synth hardware
We plan to release updated modules as the design evolves. Thanks to the construction we can improve the synth hardware piece-by-piece.

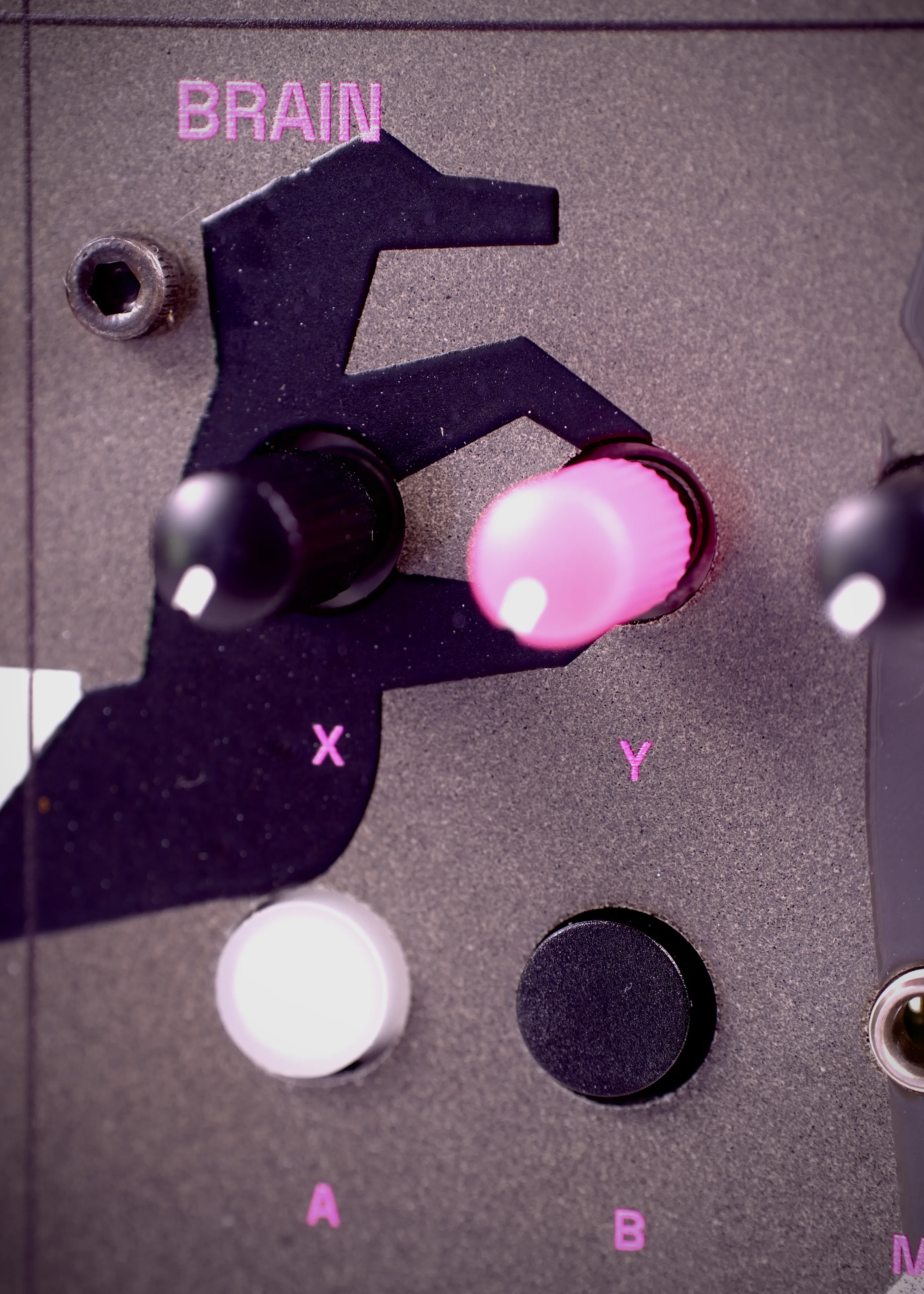

Brain
The Brain will get ongoing firmware updates: sequencers, lo-fi effects, digital voices, utilities, mini drum machines. Whatever feels fun and useful or not, all digital.
Accessories
We’ll also design new accessories that attach to the enclosure: handles, lights, passive modules, effects and other add-ons that extend the system as it grows.
